Intake Manifold

INTAKE MANIFOLD

UPPER INTAKE MANIFOLD

Install the upper intake manifold.
Tighten bolts 12 Nm (105 in. lbs.)

Starting in the center working outward in a cross sequence pattern.

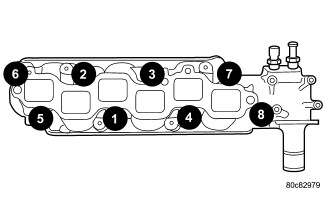

LOWER INTAKE MANIFOLD






Install the four remaining intake manifold bolts
Tighten a torque of 28 Nm (250 in. lbs.) is obtained.
