P0882






P0882-TCM POWER INPUT LOW





For a complete wiring diagram, refer to the Wiring Information.

Theory of Operation

The Transmission Control Output circuit is used to supply power to the Transmission Solenoid/TRS Assembly and to the Powertrain Control Module (PCM) when in normal operating mode. The purpose of the Transmission Output circuit is to allow the Transmission Control System to turn off the power to the Transmission Solenoid/TRS Assembly in the event that the transmission should need to be placed into "limp-in" mode due to a DTC.

After a PCM reset, (ignition switch turned to the run position, or after cranking the engine) the Transmission Control System verifies that the Transmission Output circuit is open by checking for voltage on the Transmission Output circuits before the Transmission Control System request for the circuit to be powered up. The PCM/TCM relay request is direct circuit control from the PCM to the PDC. If the Transmission Control System detects less that 3.0 volts when the output is commanded on, the DTC will set. Note: Inadequate Transmission Control Output voltage can also cause DTCs P0846, or P0871, to set. This does not indicate an internal transmission or solenoid/TRS problem. Repairing the P0882 fault should also eliminate the related DTCs.

- When Monitored:
When the ignition is turned from "OFF" position to "RUN" position and/or the ignition is turned from "START" position to "RUN" position.

- Set Condition:
This DTC is set when there is less than 3.0 volts present at the transmission control output circuits located in the Powertrain Control Module (PCM) when the Transmission Control System request the power up of those circuits. Note: Due to the integration of the Transmission Control Module and the Powertrain Control Module, both systems have their own power and ground circuits.

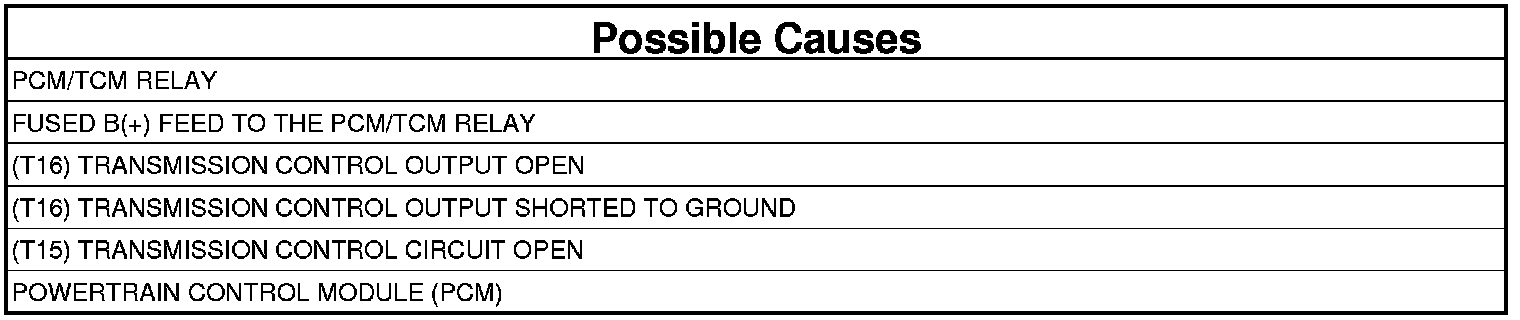

Always perform the 62TE Pre-Diagnostic Troubleshooting procedure before proceeding. Pre-Diagnostic Troubleshooting Procedure.

1. CHECK IF THE DTC P0882 IS CURRENT
1. With the scan tool, Check the Starts Since Set counter for P0882.

NOTE: This counter only applies to the last DTC set.

Is the Starts Since Set counter equal to 0?

Yes

- Go To 2

No

- Go To 7

2. CHECK PCM/TCM RELAY
1. Install substitute PCM/TCM Relay.
2. Ignition on, engine not running.
3. With the scan tool in Transmission Sensors, read the Switched Battery voltage.

Does the Switched Battery voltage read battery voltage?

Yes

- Replace the Transmission Control Relay.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

No

- Go To 3

3. CHECK THE FUSED B+ CIRCUITS




1. Turn the ignition off to the lock position.
2. Remove the Transmission Control Relay.
3. Ignition on, engine not running.
4. Using a 12-volt test light connected to ground, check the both Fused B+ Feed circuits in the Transmission Control Relay connector.

Does the test light illuminate brightly on both terminals?

Yes

- Go To 4

No

- Repair the Fused B+ circuit(s) for an open or loss of voltage.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

4. CHECK THE (T16) TRANSMISSION CONTROL OUTPUT CIRCUIT FOR AN OPEN




1. Using a fused jumper wire, jumper the PCM/TCM relay connector from Fused B(+) to the Transmission Control Output.
2. Using a 12-volt test light connected to ground, check the (T16) Transmission Control Output circuits in the PCM C1 harness connector.

Does the test light illuminate brightly on all terminals?

Yes

- Go To 5

No

- Repair the (T16) Transmission Control Output circuit(s) for an open.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

5. CHECK THE (T16) TRANSMISSION CONTROL OUTPUT CIRCUIT FOR A SHORT TO GROUND




1. Turn the ignition off to the lock position.
2. Remove jumper from the PCM/TCM relay connector.
3. Measure the resistance of the (T16) Transmission Control Output circuits between ground and the PCM C1 harness connector.

Is the resistance above 100k Ohms?

Yes

- Go To 6

No

- Repair the (T16) Transmission Control Output circuit for a short to ground.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

6. CHECK THE (T15) TRANSMISSION CONTROL CIRCUIT FOR AN OPEN




1. Measure the resistance of the (T15) Transmission Control circuit between the PCM C1 harness connector and the PCM/TCM Relay connector in the PDC.

Is the resistance above 5.0 Ohms?

Yes

- Repair the (T15) Transmission Control circuit for an open.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

No

- Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the PCM. Service and Repair. With the scan tool, perform Quick Learn.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

7. CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes

- Repair as necessary.
- Perform the 62TE TRANSMISSION VERIFICATION TEST. 62TE Transmission Verification Test.

No

- Test Complete.
