Power Seat Switch - Removal

REMOVAL

WARNING: Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.





1. Disconnect and isolate the negative battery cable.

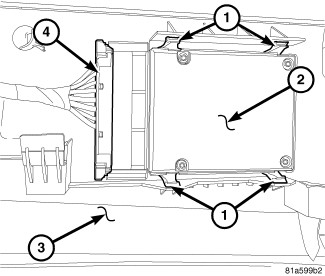

2. Remove the outboard seat cushion side shield (3).
3. Using a small flat bladed tool, gently release the four retaining tabs (1) that secure the power seat switch (2) to the seat cushion side shield.
4. Disconnect the electrical connector (4) from the power seat switch and remove the switch.
