Assembly

ASSEMBLY

Special Tools:















NOTE: If clutch discs are being replaced, soak in 8HP trans fluid before assembly.

1. Position the input/output and the P4 annulus drum assembly on (8925-3) and (1130)




2. Install the backing plate (1) onto the input/output shaft.

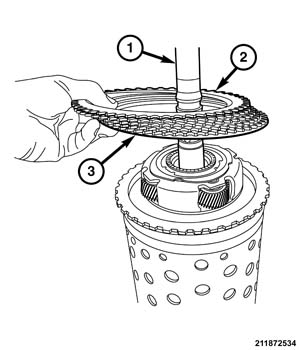

3. Install the friction and steel plates (2).





4. Install the B-clutch wave plate (1).





5. Install the P1 annulus onto the input/output shaft (1).





6. Install the correct selectable shim (1) onto the P1 annulus.
