Computers and Control Systems: Locations

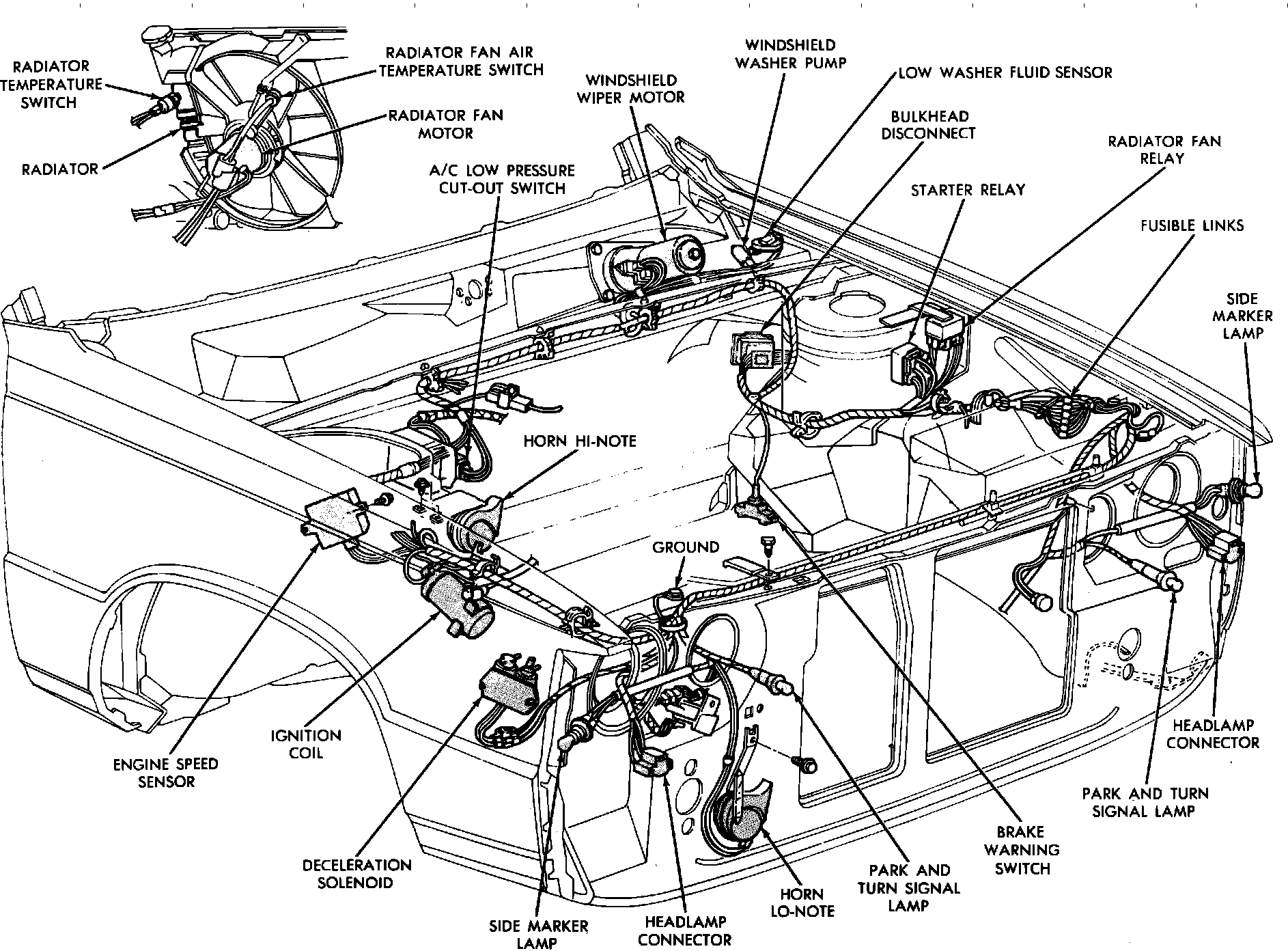

Engine Compartment Electrical Components:
Inside RH Front Fender
Applicable to: 1981-82 2.6L
