Dodge
>>
1982
>>
Challenger L4-2555cc 2.6L
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

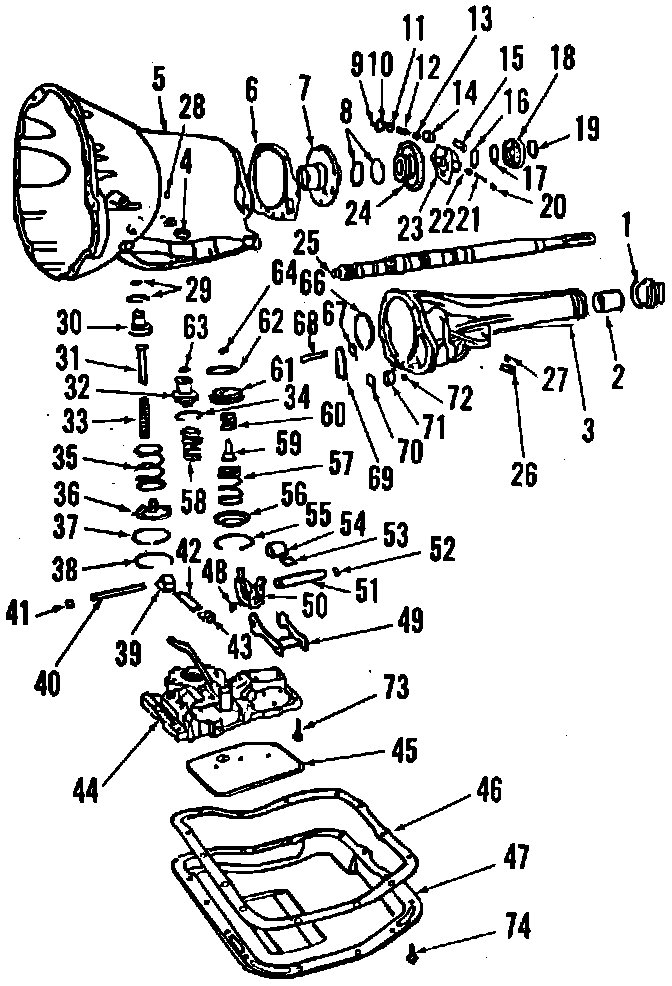

Case & Extension:

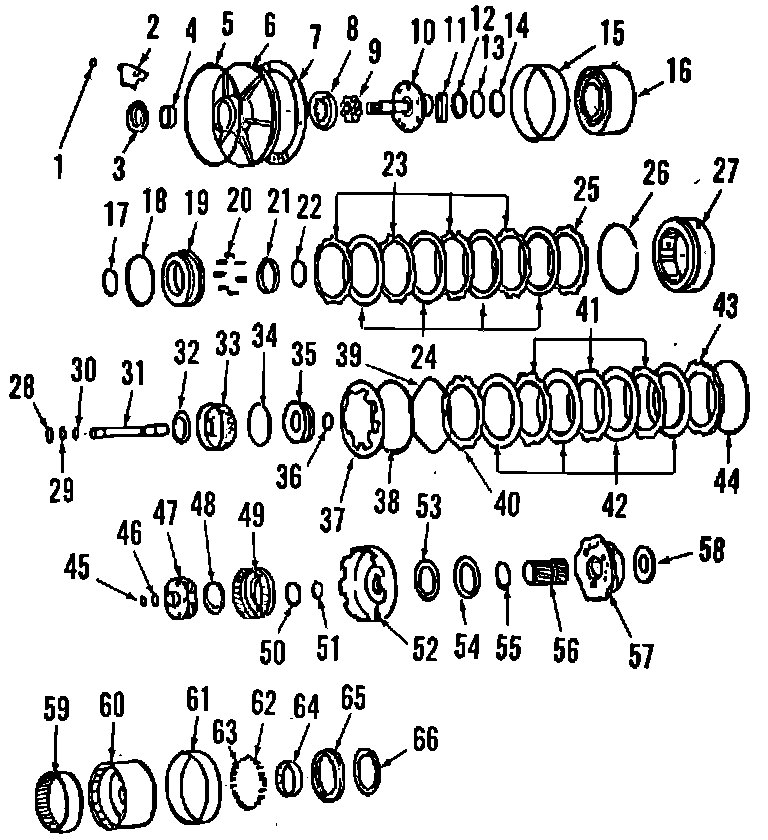

Gear Train:

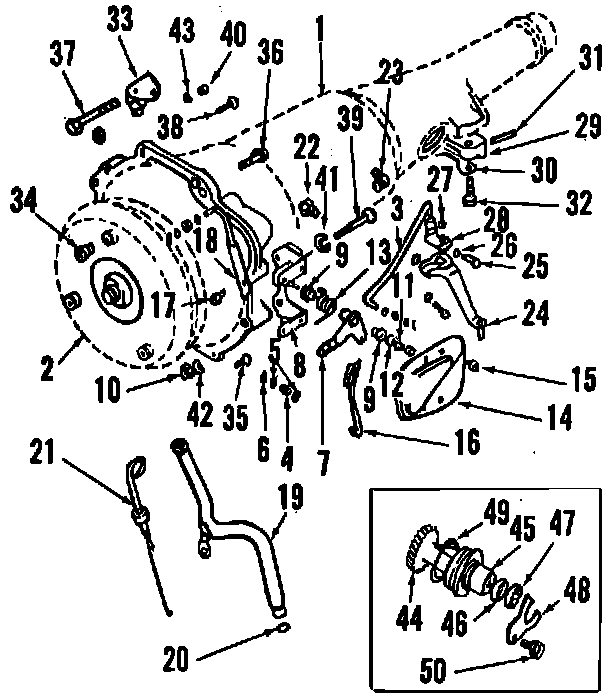

Transmission & External Components:

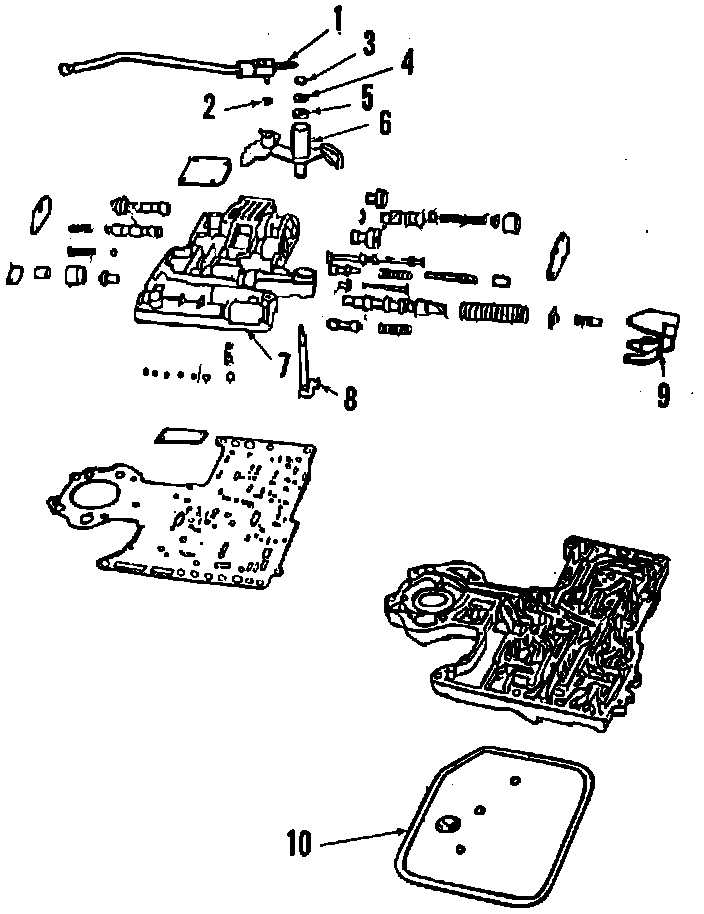

Valve Body:
