Engine Compartment Splices

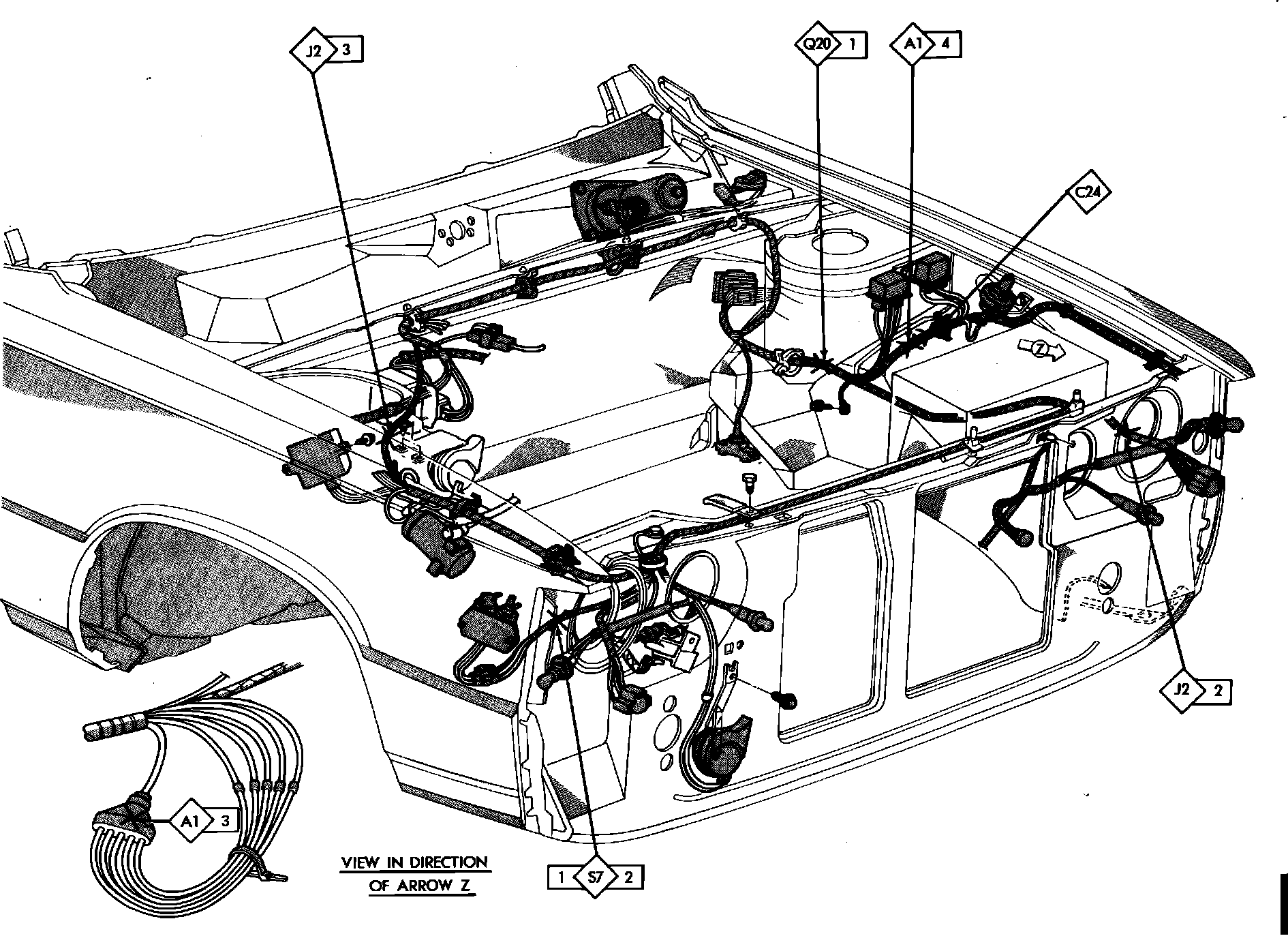

Fig. 96 Splice Locations (Engine Compartment). 1983-84 W/2.6 Liter Engine:
