Home
>>
Dodge
>>
1985
>>
Charger L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Engine Compartment Splices
Engine Compartment Splices

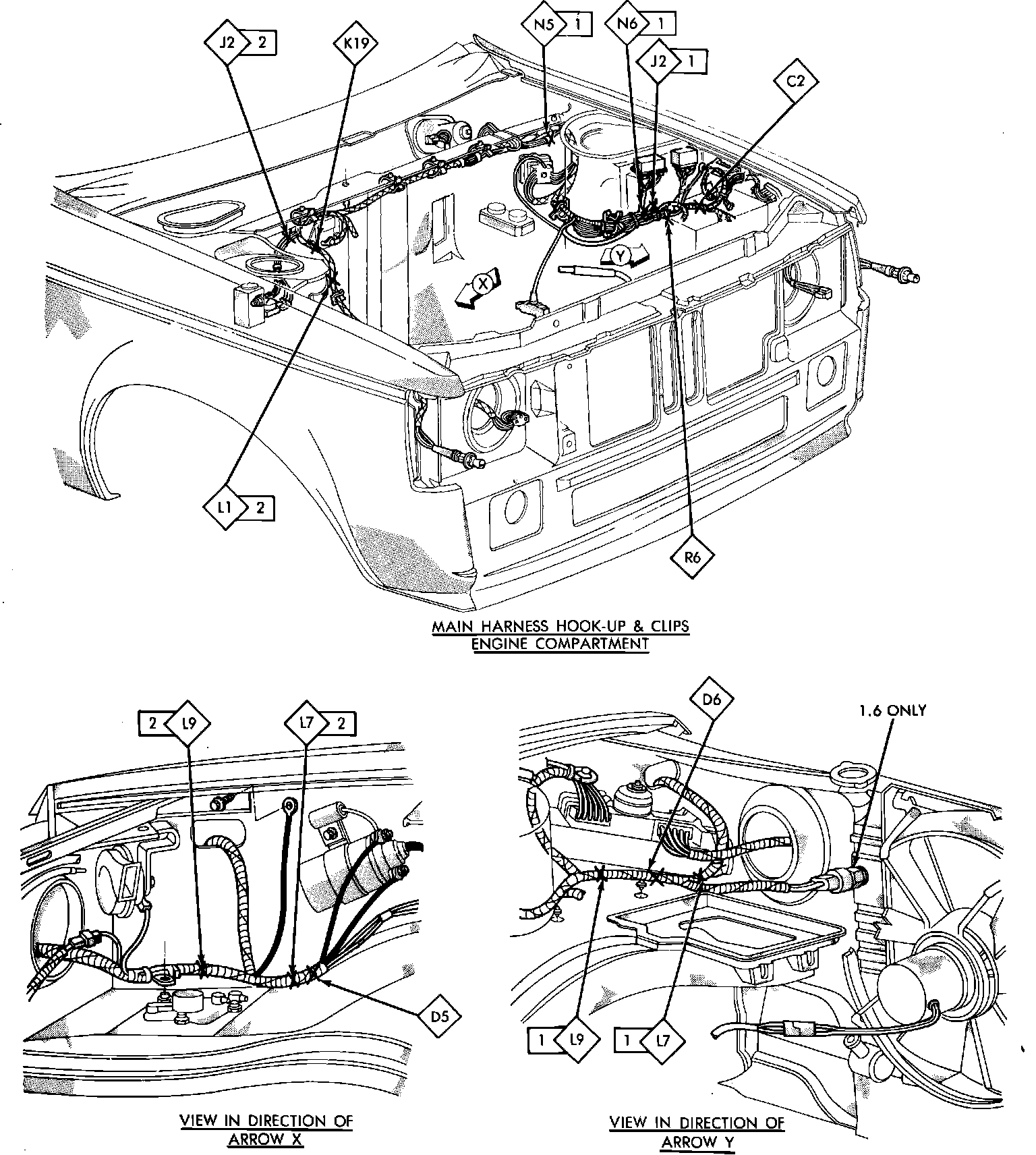

Fig. 43 Splice Location (Engine Compartment & Front End). 1985:
