Turbocharger
Turbocharger

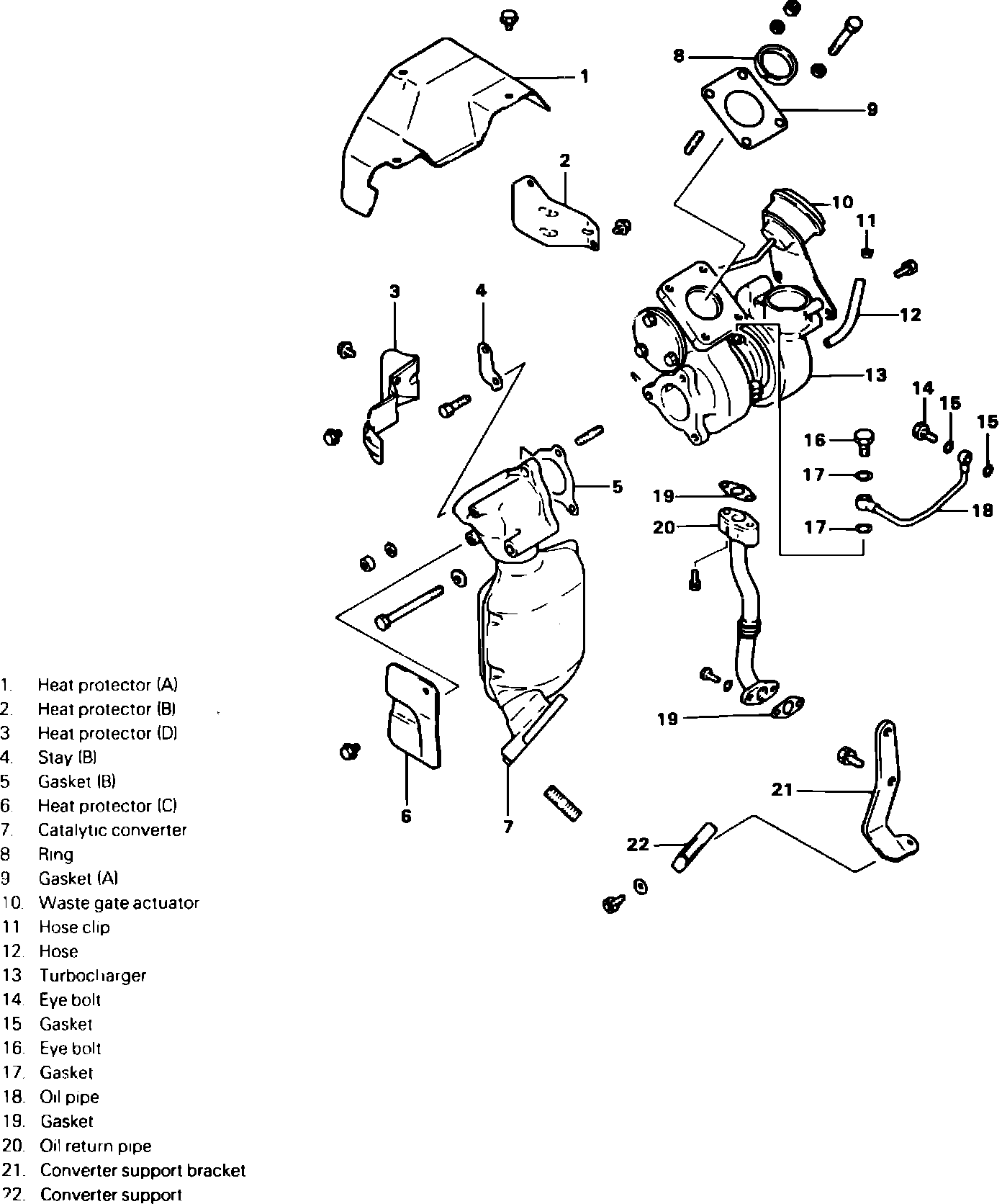

Fig. 1 Exploded view of turbocharger assembly. 1985-86 Models w/1600cc engine:
