Home >> Dodge >> 1985 >> Conquest L4-2555cc 2.6L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Active Check Module

Active Check Module

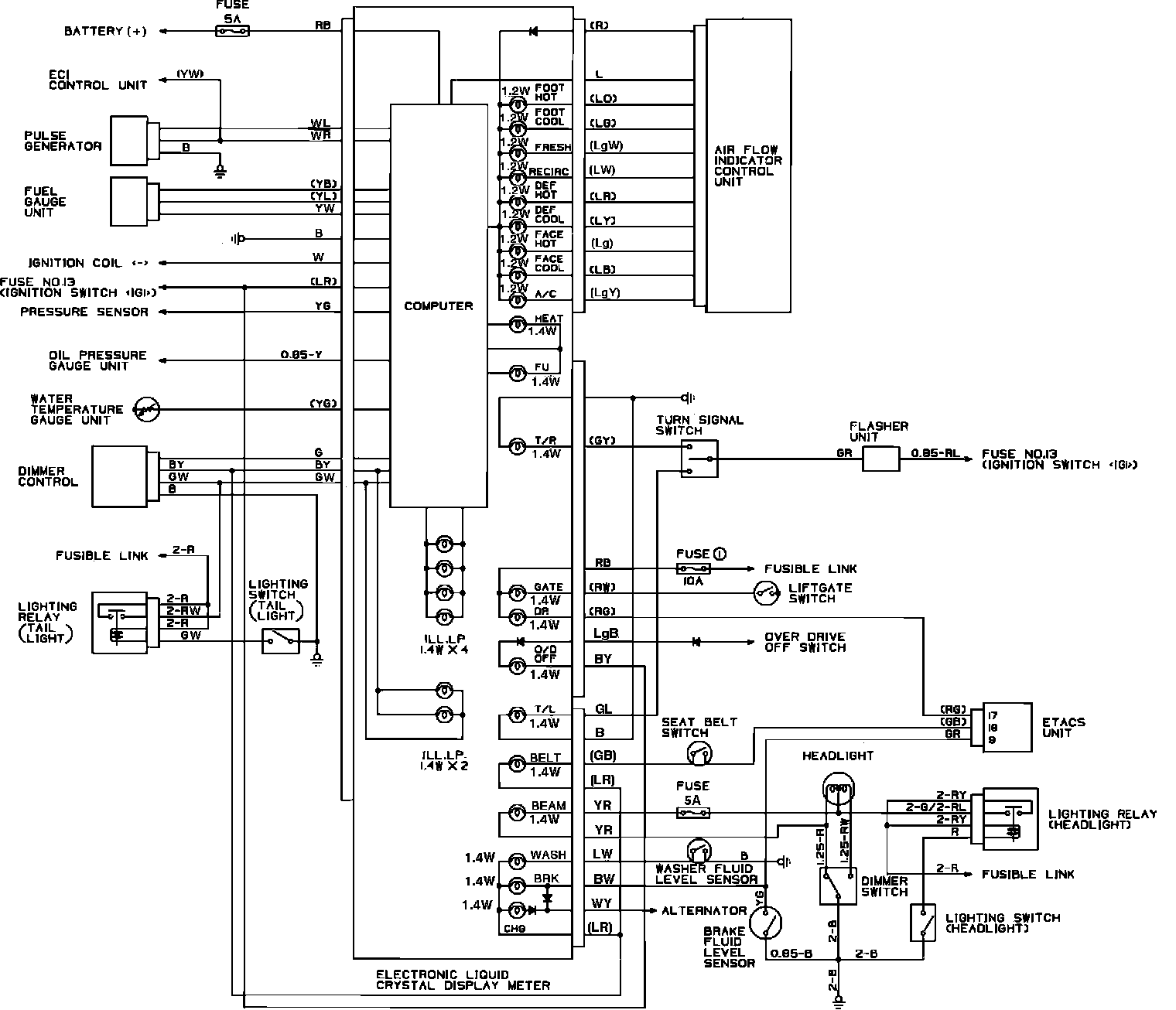

Electronic Liquid Crystal Display Meter Wiring Circuit:
