Oil Temperature Sensor/Switch, Engine

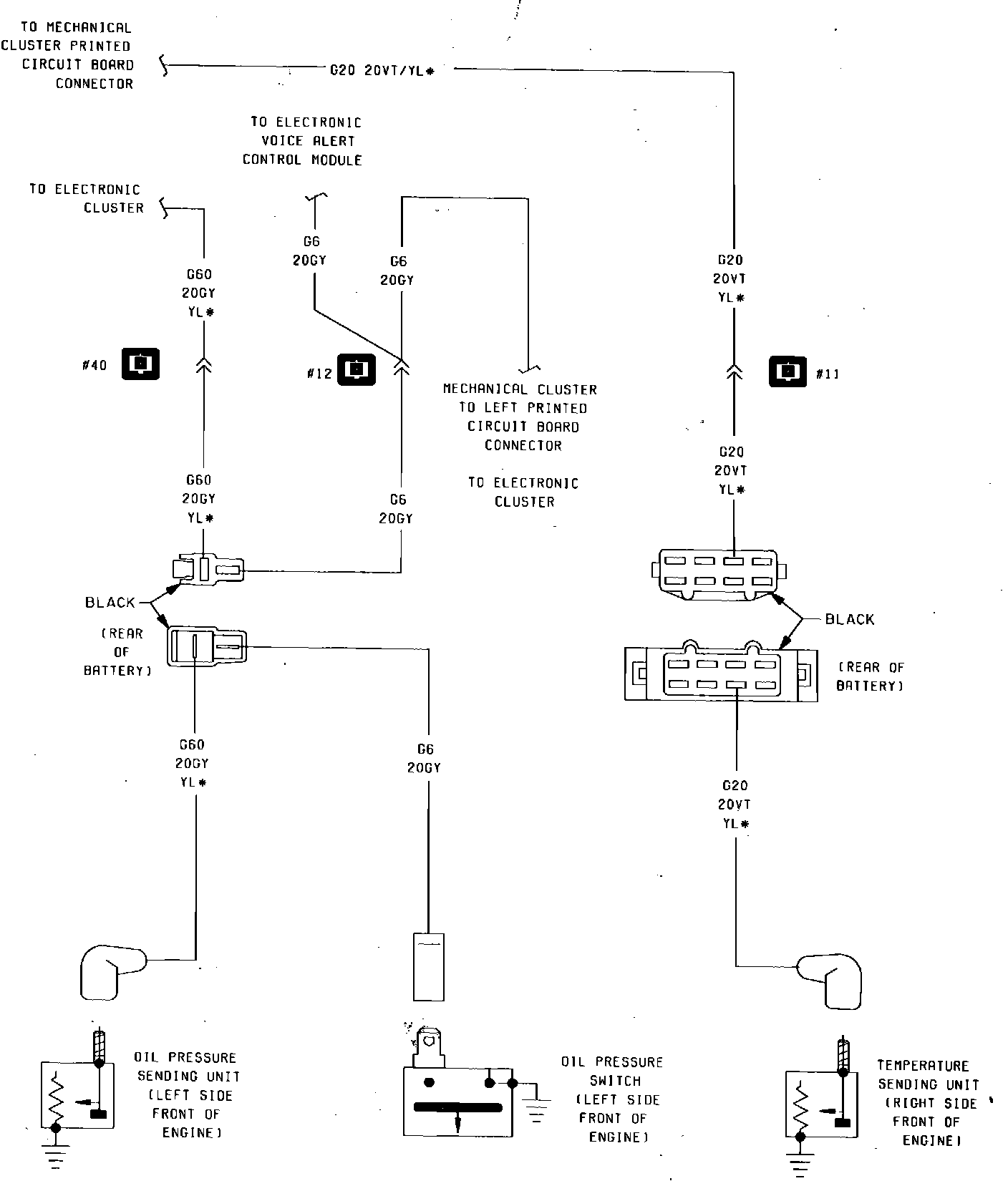

Fig. 30 Oil Pressure & Temperature System Wiring Circuit. 1985:
