Home >> Dodge >> 1985 >> Lancer L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> System Diagram >> Ignition Switch/System >> Part 4 of 4

Part 4 of 4

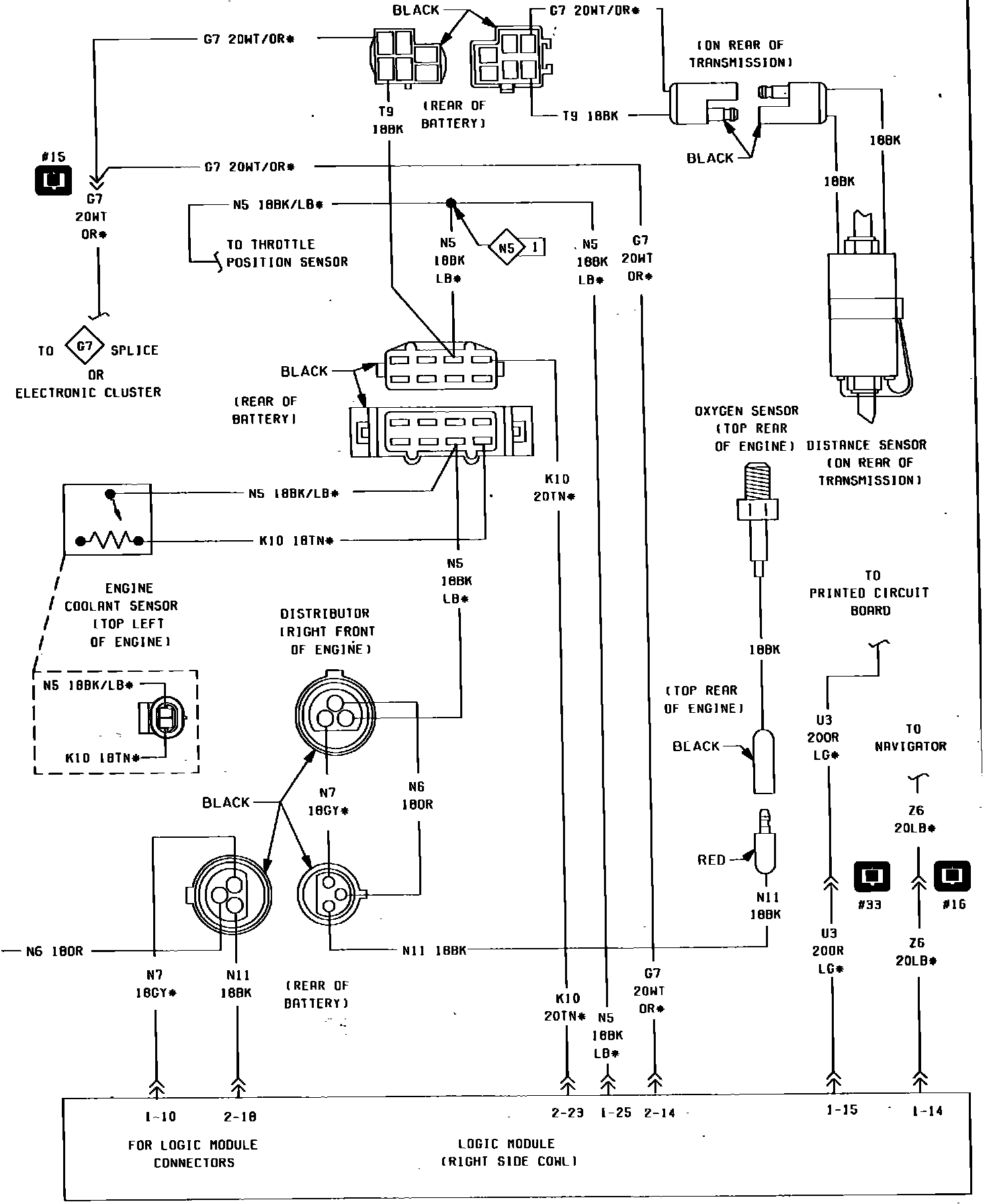

Fig. 26 Ignition System Wiring Circuit (Less Turbocharger, Part 4 of 4). 1985:
