Clearance and Design Specifications

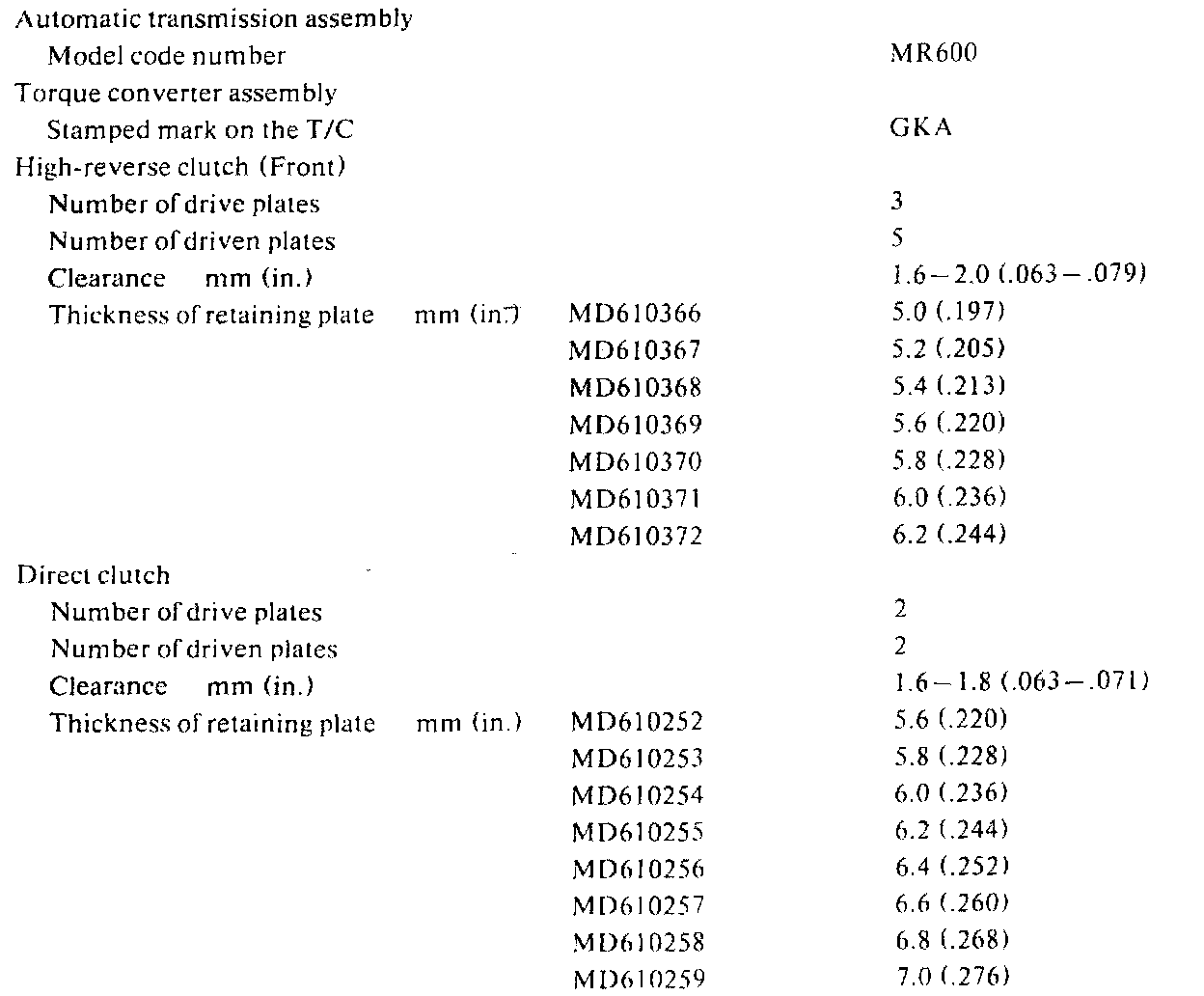

General Specifications:

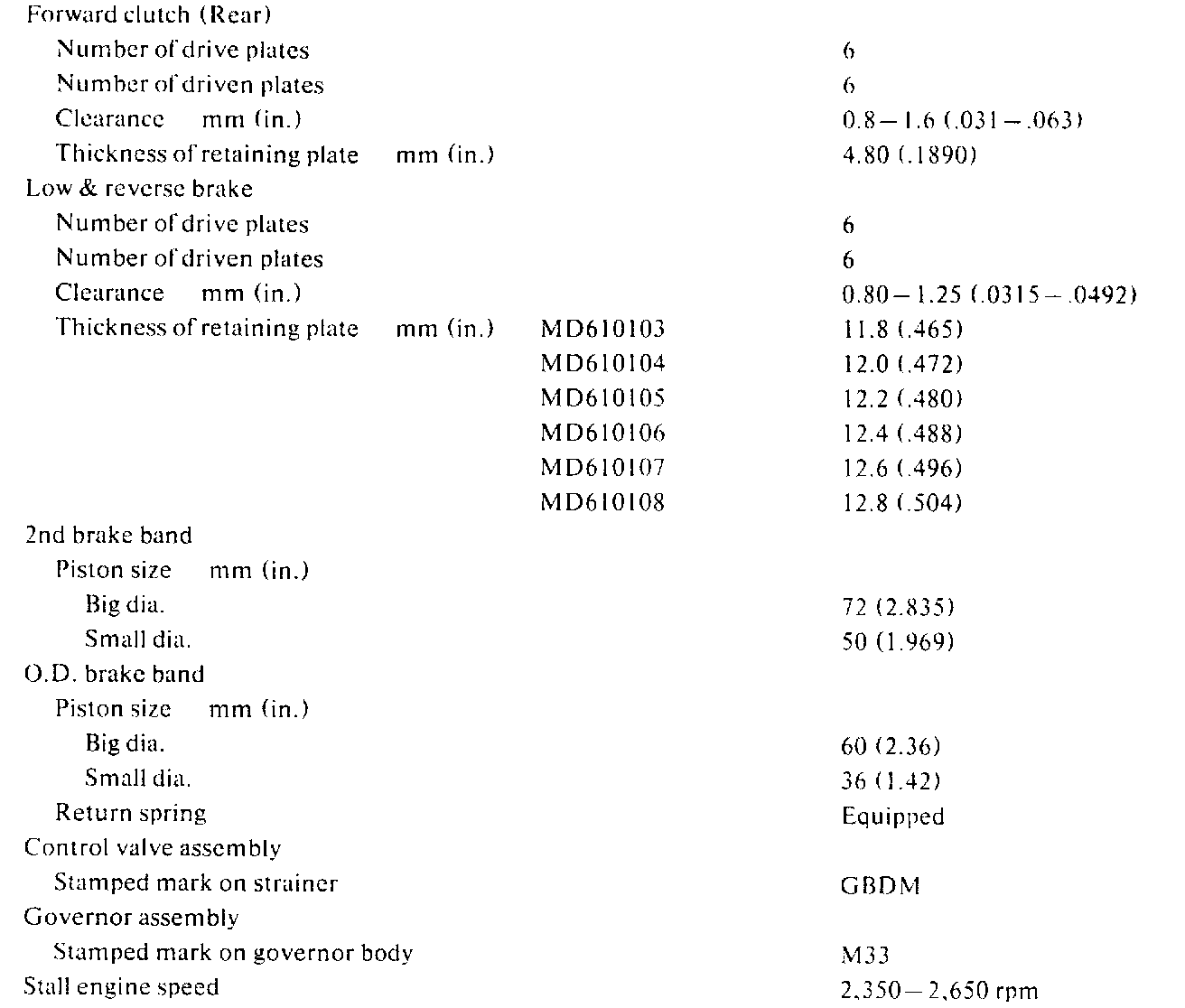

Continued:

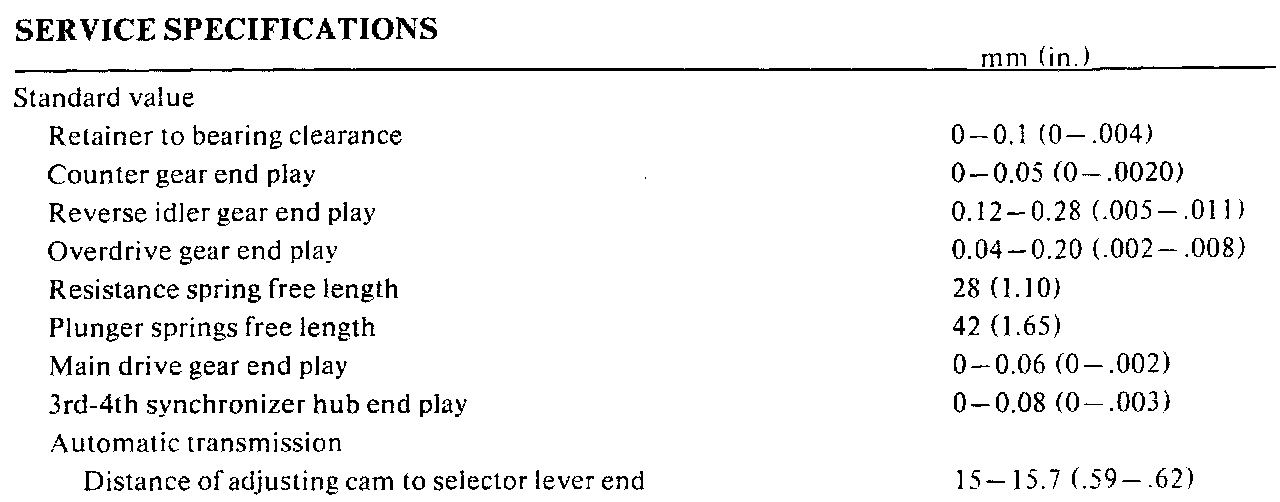

Service Specifications:

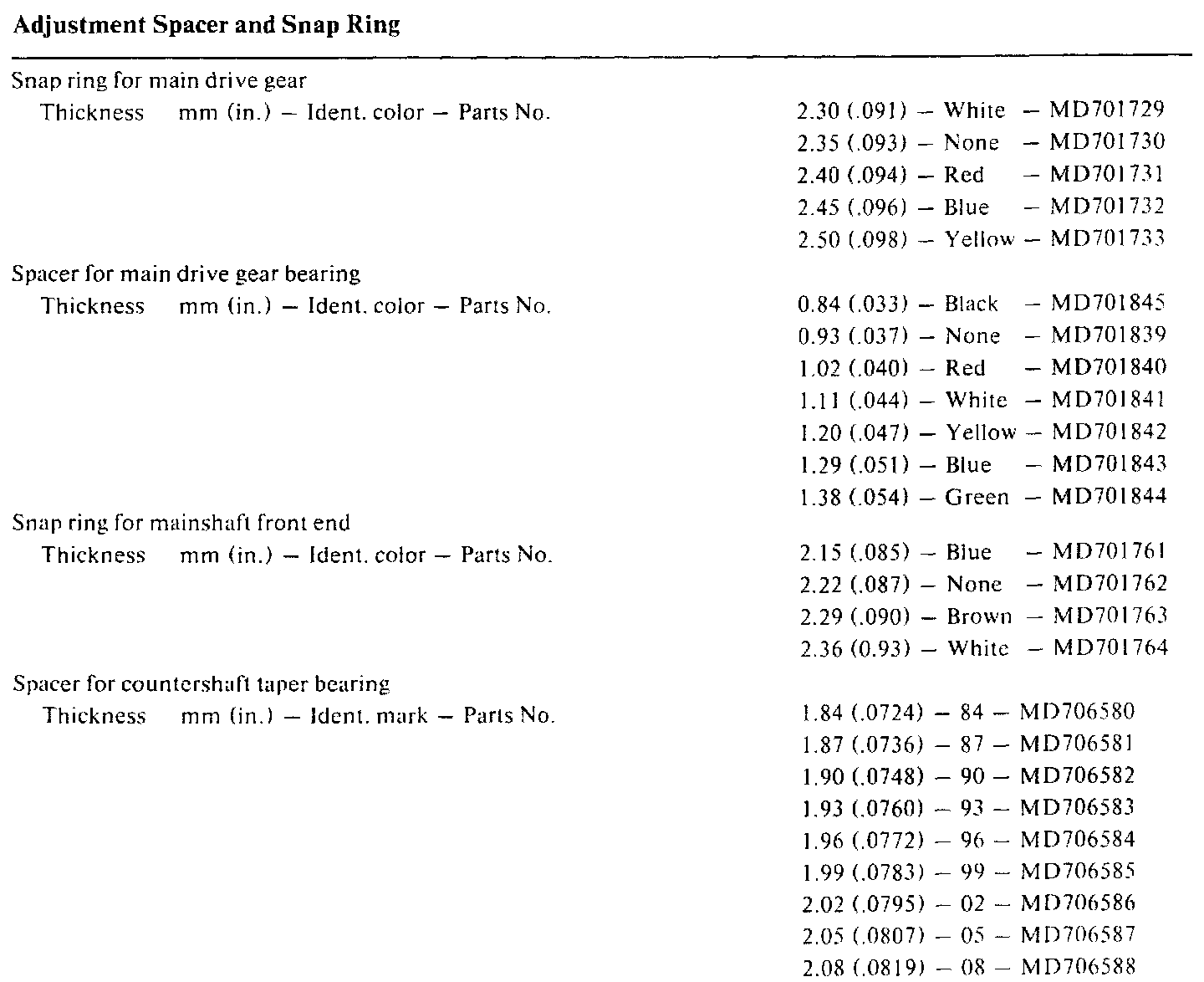

Adjustment Spacers And Snap Rings:

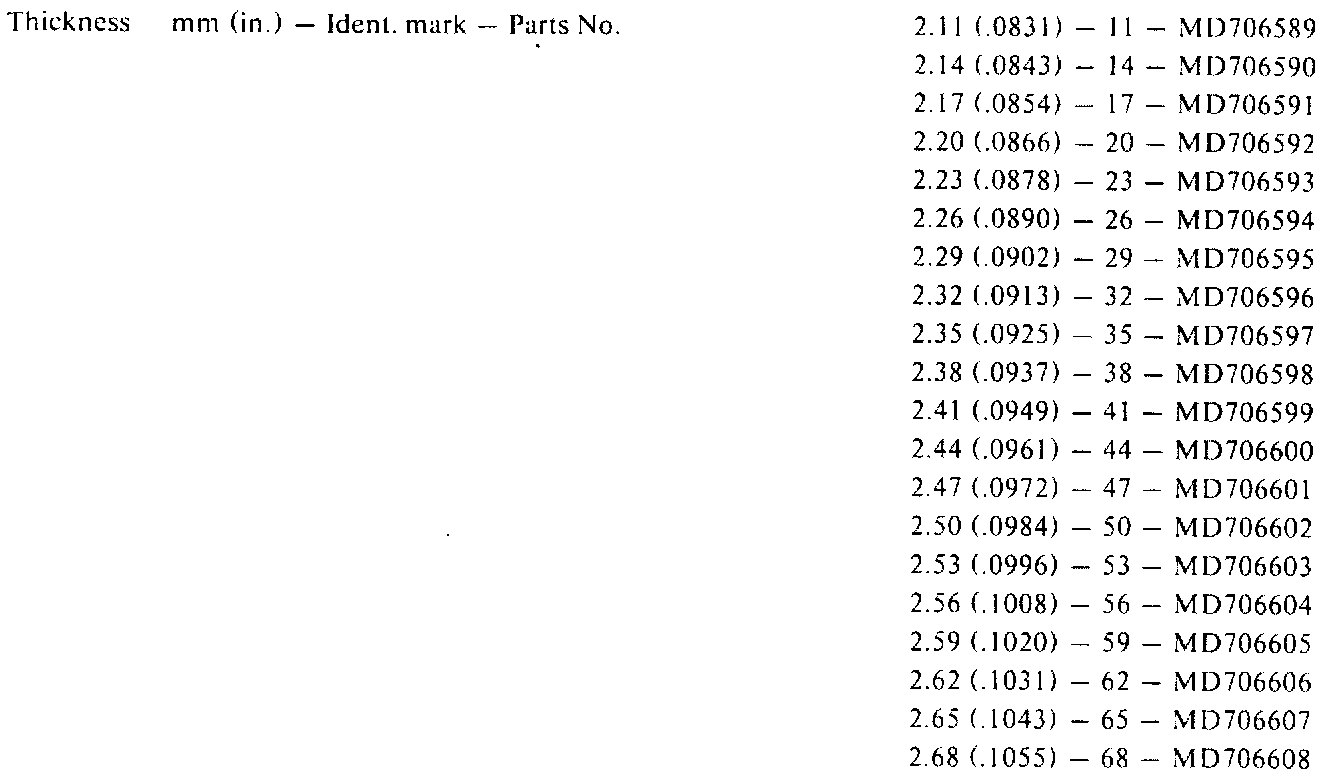

Continued:

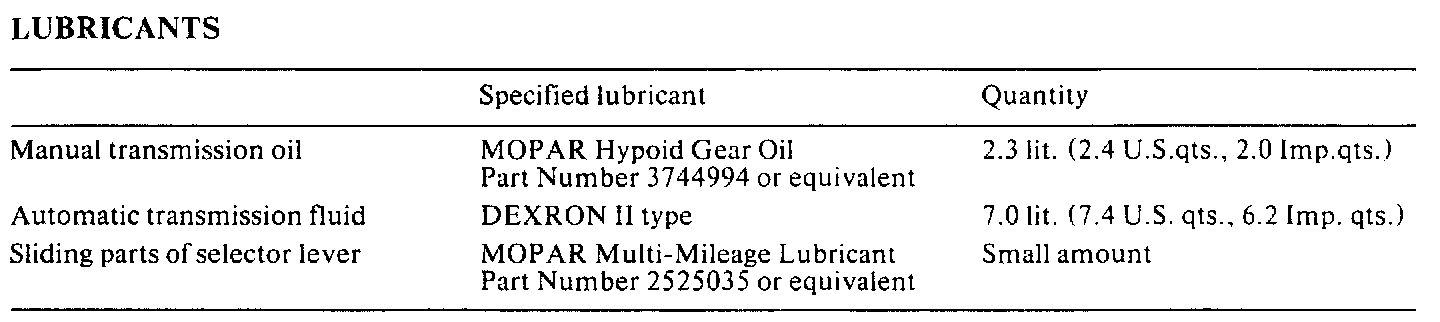

Lubricants:
