Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

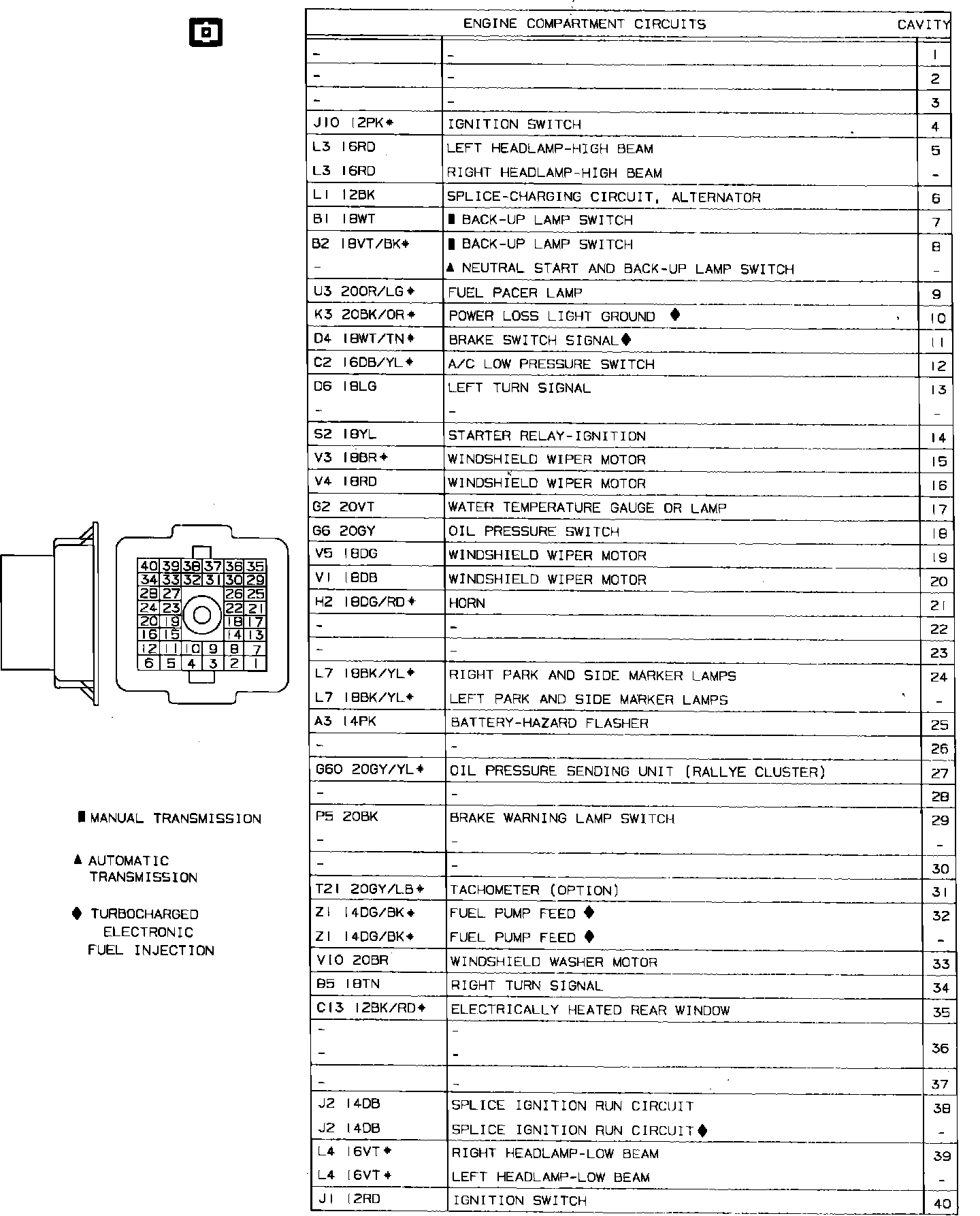

Fig. 5 Bulkhead Connector Engine Side:
