Dodge
>>
1987
>>
Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Turbocharger
Turbocharger

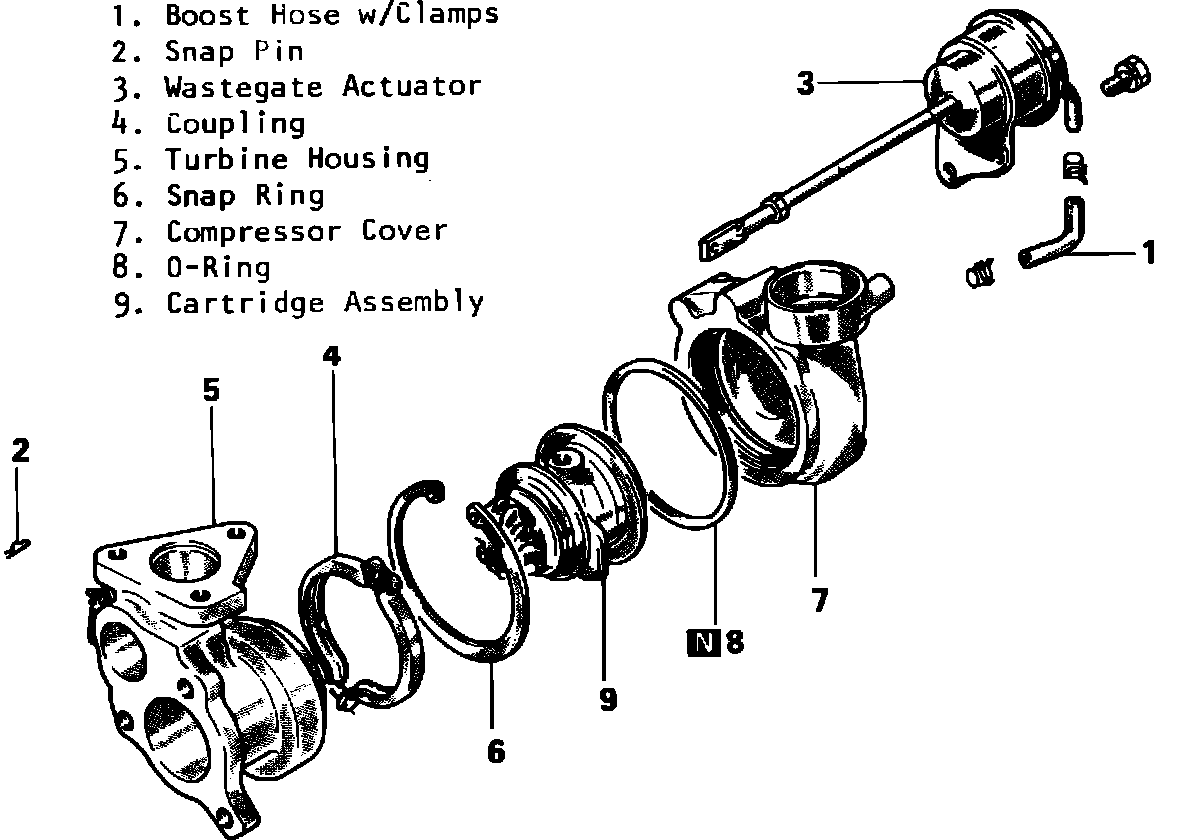

Fig. 3 Exploded view of turbocharger assembly. 1987-88 Models w/1600cc engine:
