Multiple Junction Connector
>>
Engine Compartment Side
Engine Compartment Side

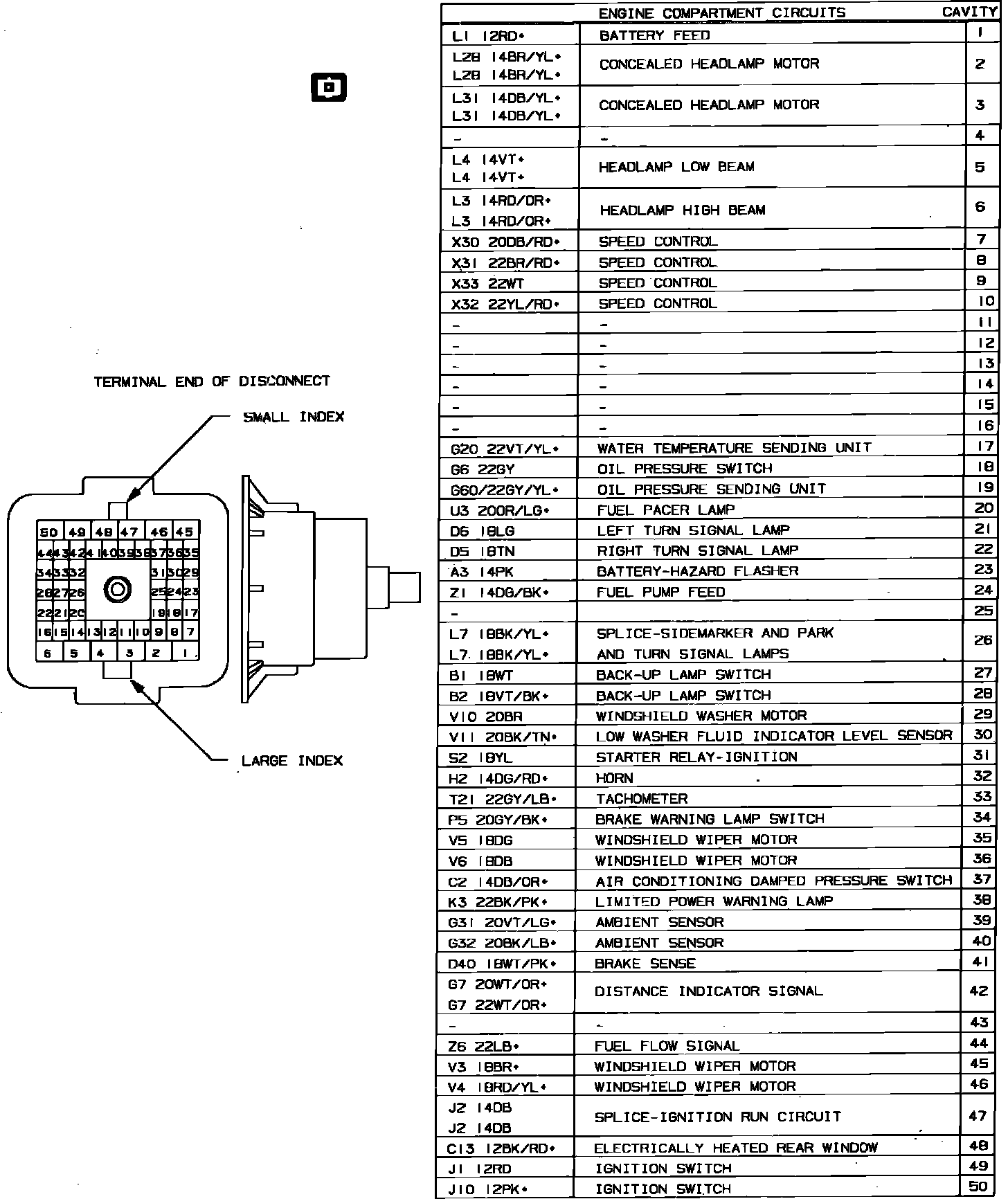

Fig. 7 Bulkhead Connector (Part 1 of 2):
