Oil Temperature Sensor/Switch, Engine

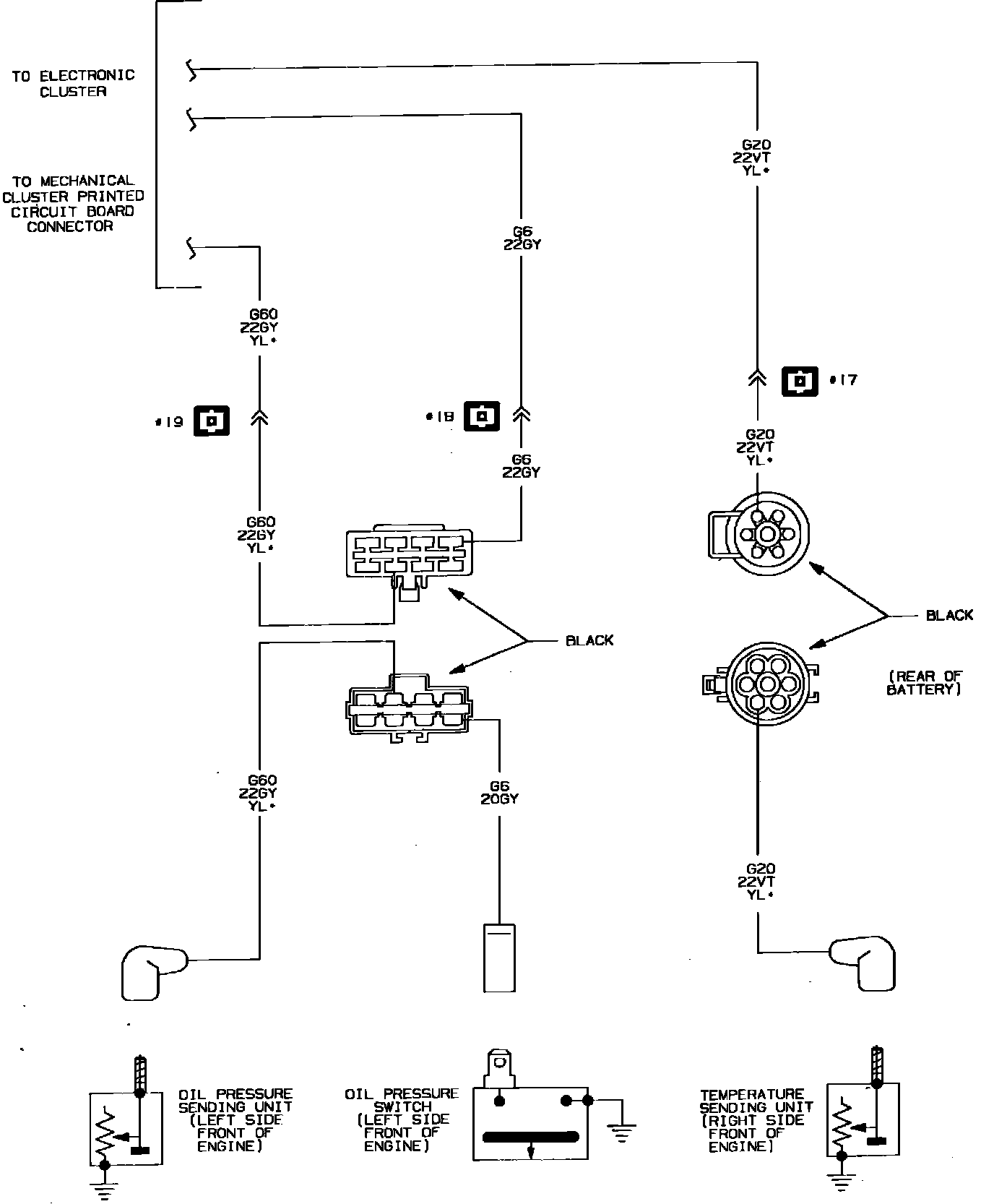

Fig. 37 Oil Pressure & Temperature Switches System Wiring Circuit:
