Colt L4-089 1468cc 1.5L VIN K 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

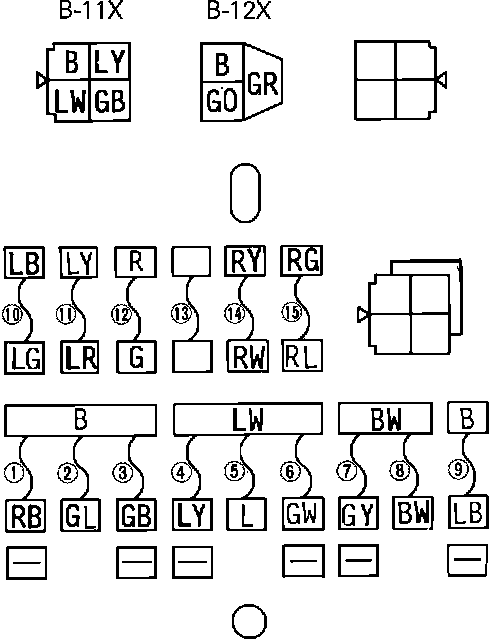

Fuse Block
Fuse Block

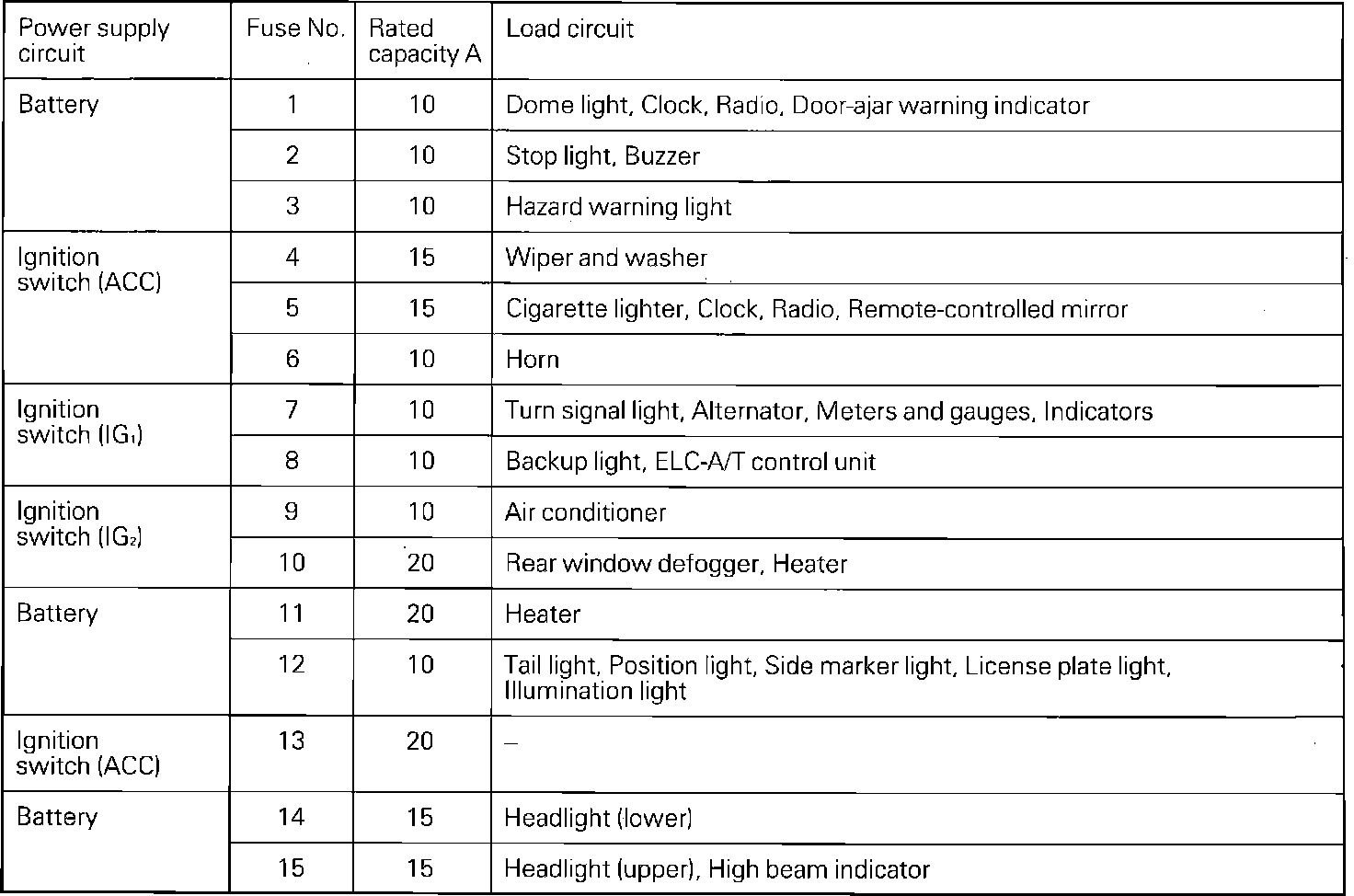

Fuse Panel Details:
Fuse Panel Details:
