Diagrams
>>
Connector Views
>>
Bulkhead Connector
Bulkhead Connector

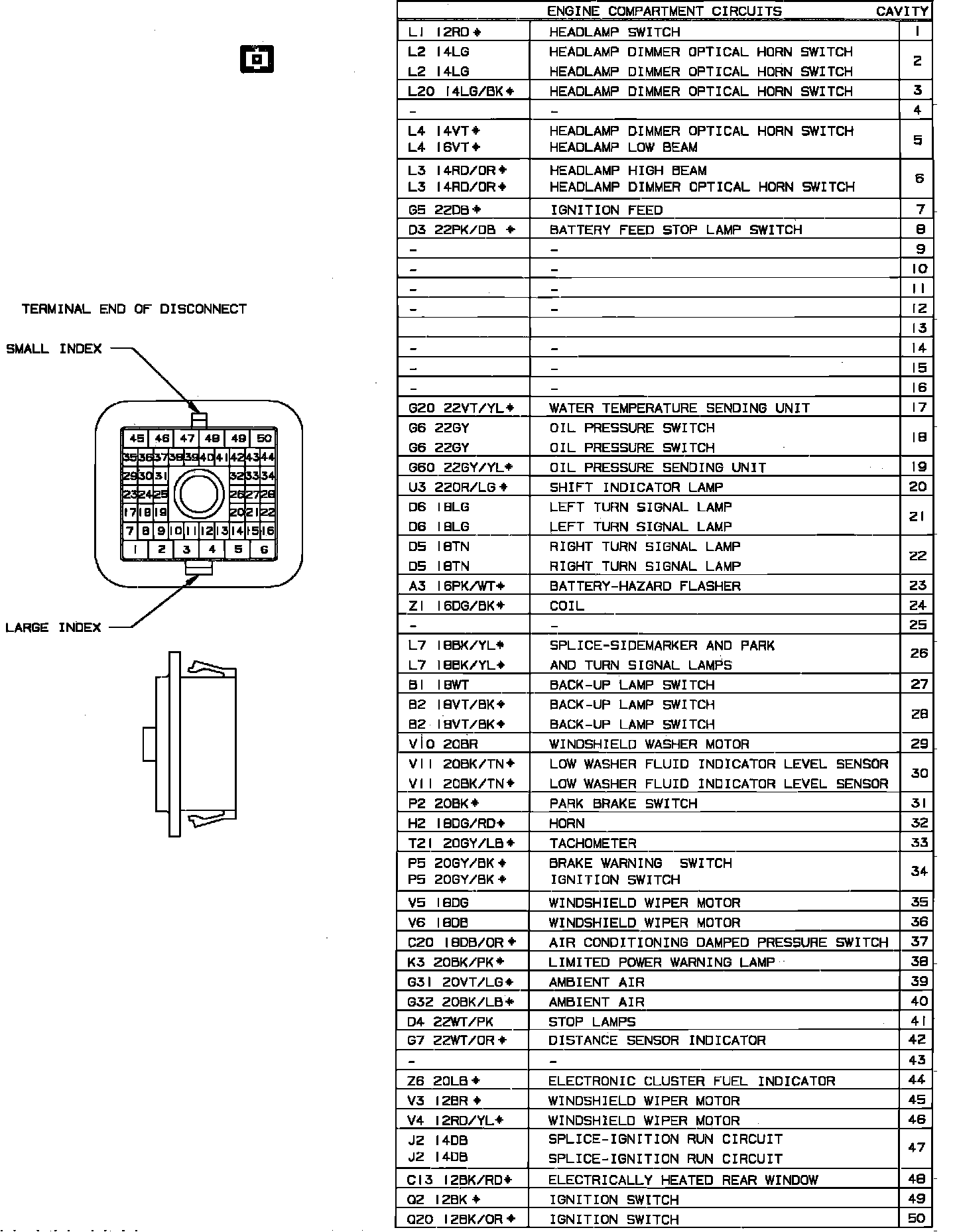

Bulkhead Connector (Part 1 of 2):

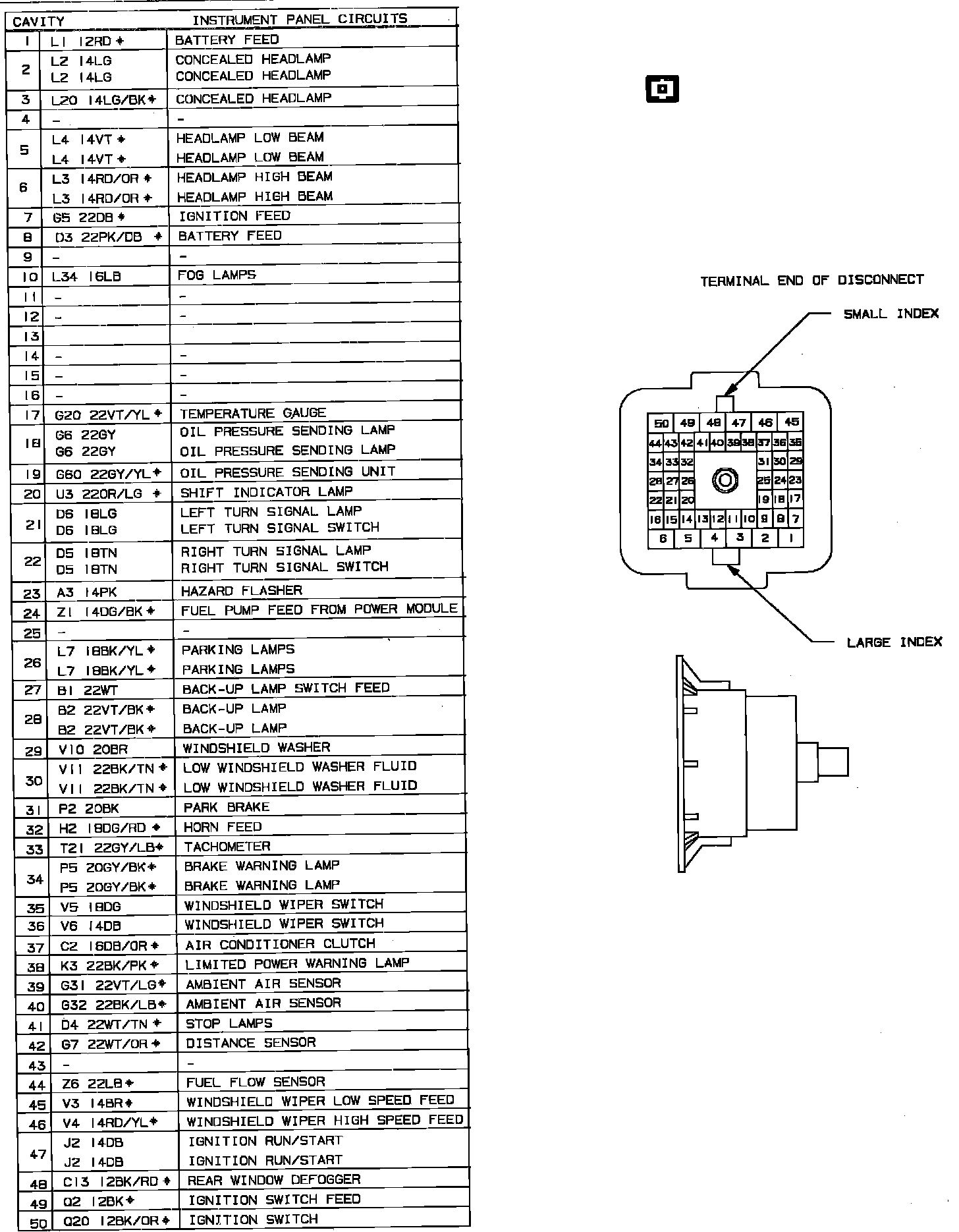

Bulkhead Connector (Part 2 of 2):
