Steering Column
Steering Column

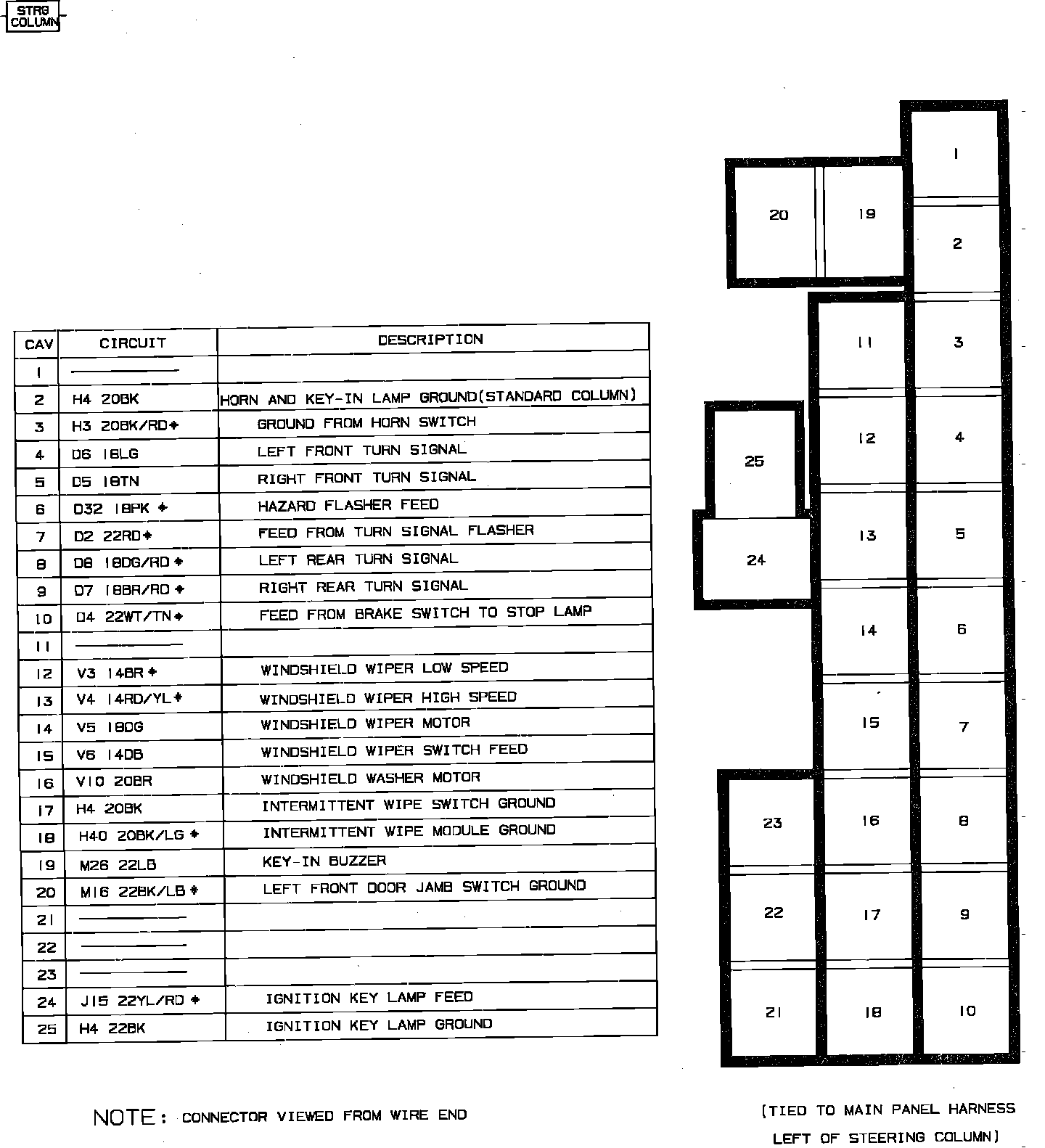

Instrument Panel To Steering Column Connectors (Part 1 of 2):

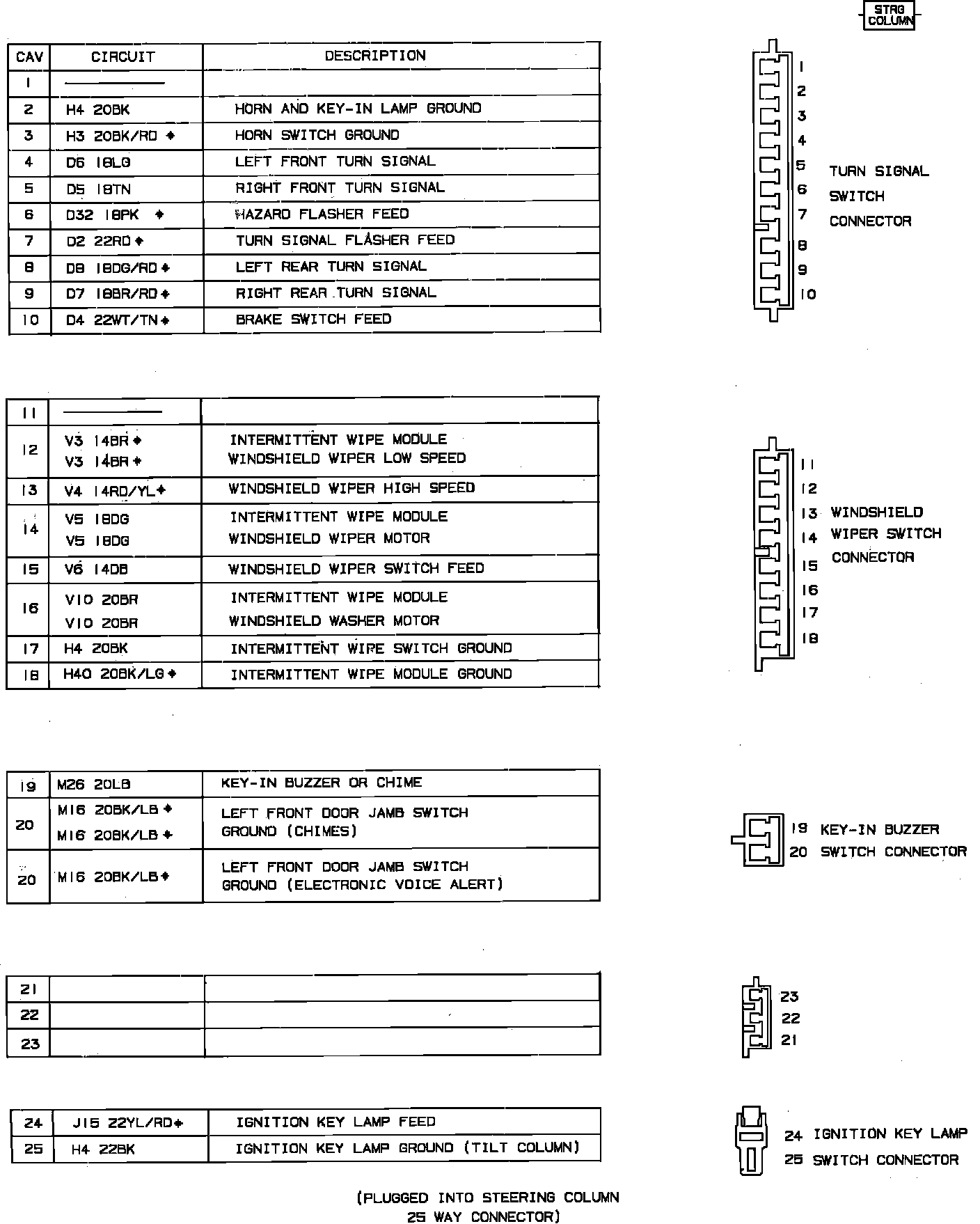

Instrument Panel To Steering Column Connectors (Part 2 of 2):
