Logic Module Connector

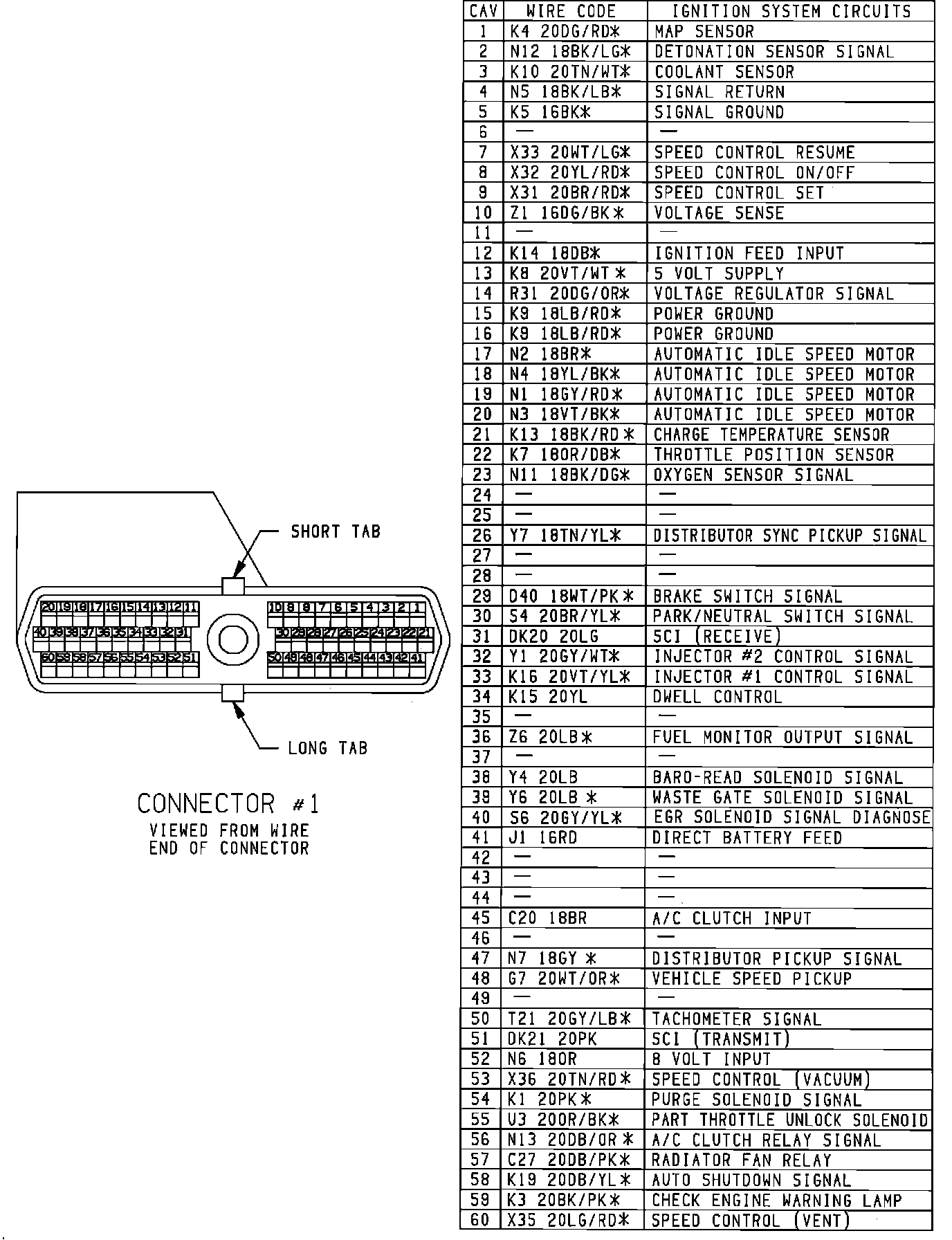

Logic Module Connectors. (With Turbo):

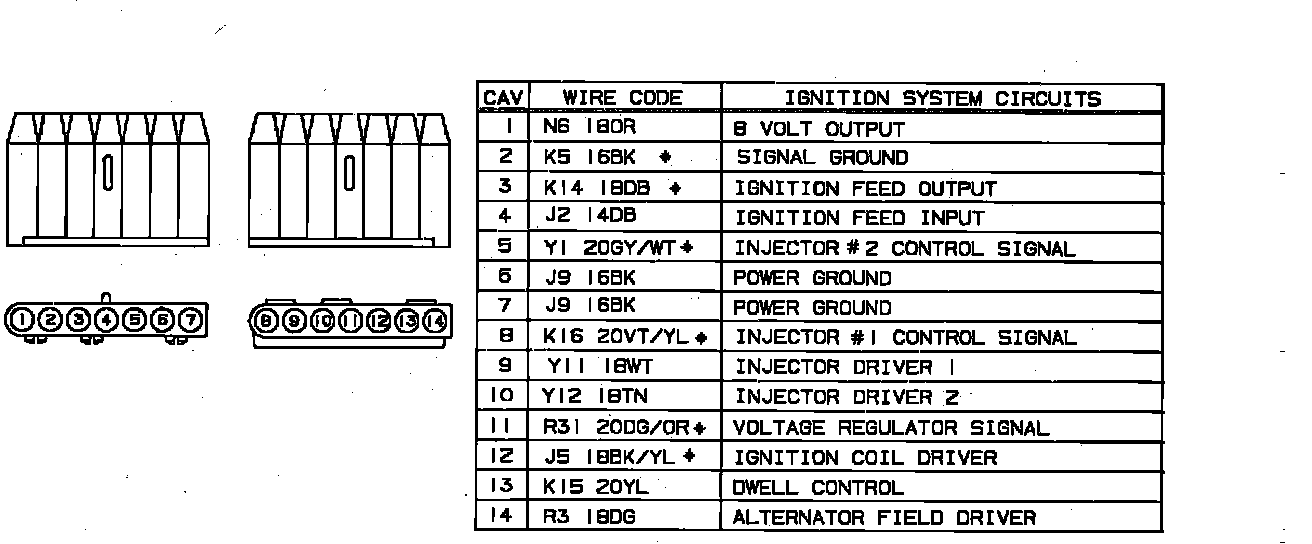

Logic Module Connectors (Part 2 Of 2):
