Computers and Control Systems: Locations

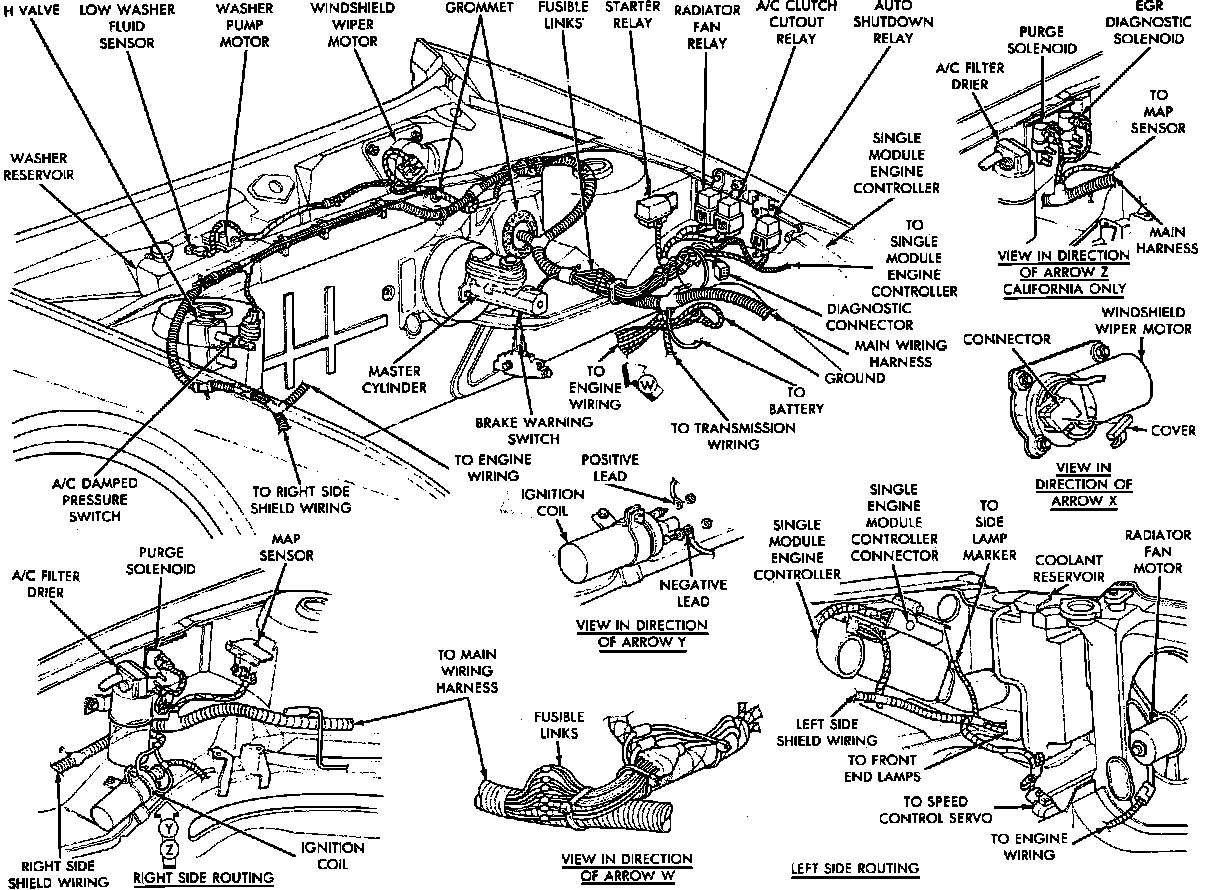

Engine Compartment Components.:
LH Side Of Engine Compartment
Applicable to: 1989 EFI Engine Except Turbo
