Logic Module Connector

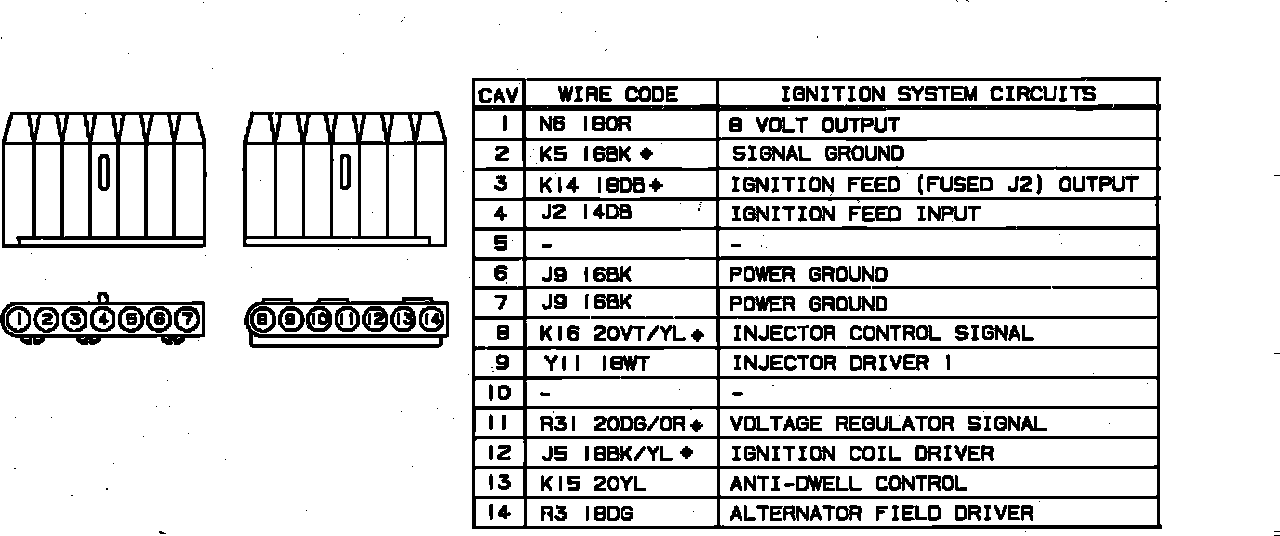

Logic Module Connectors (Part 1 Of 2):

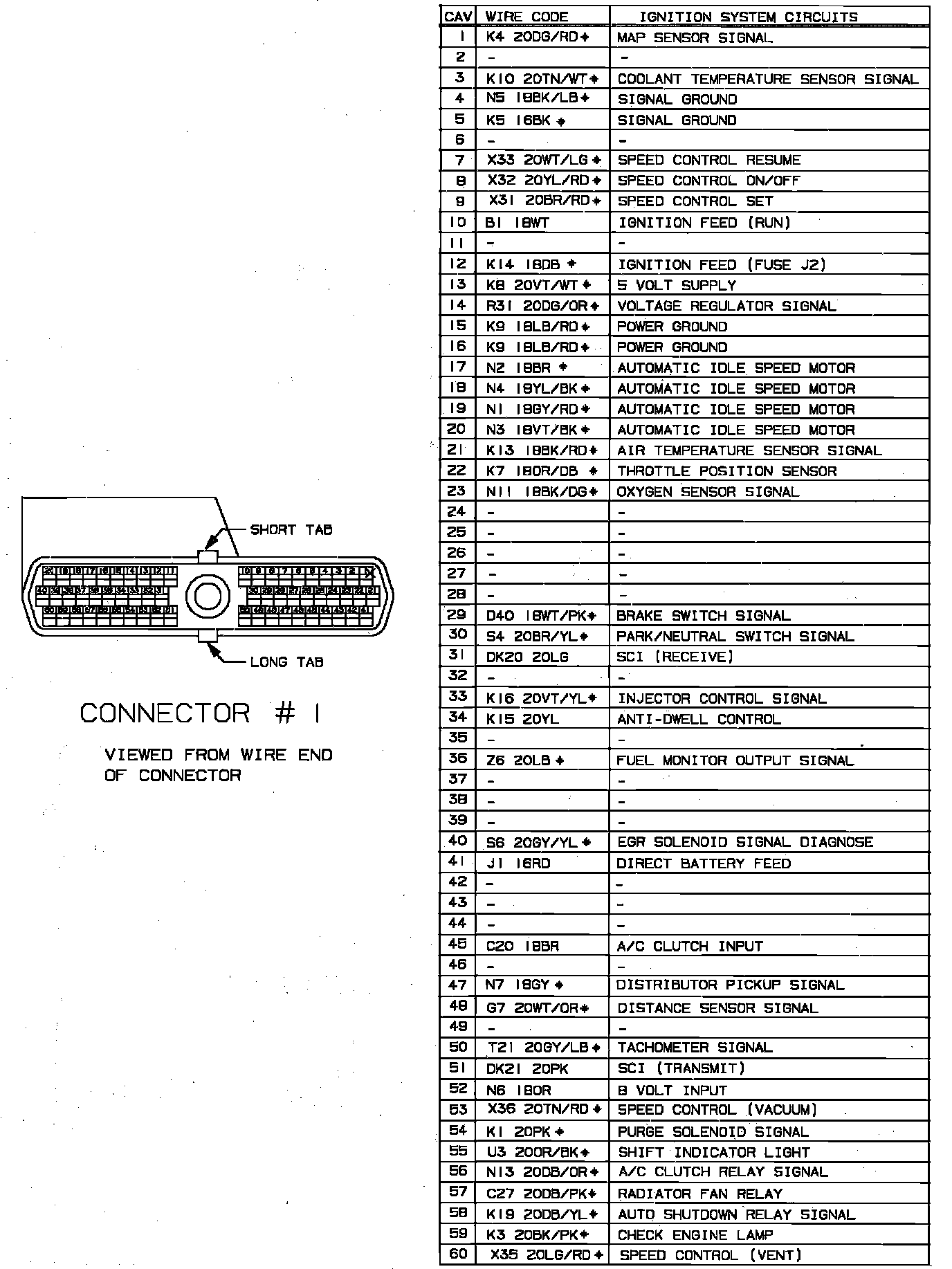

Logic Module Connectors (Part 2 Of 2):
