Lancer L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

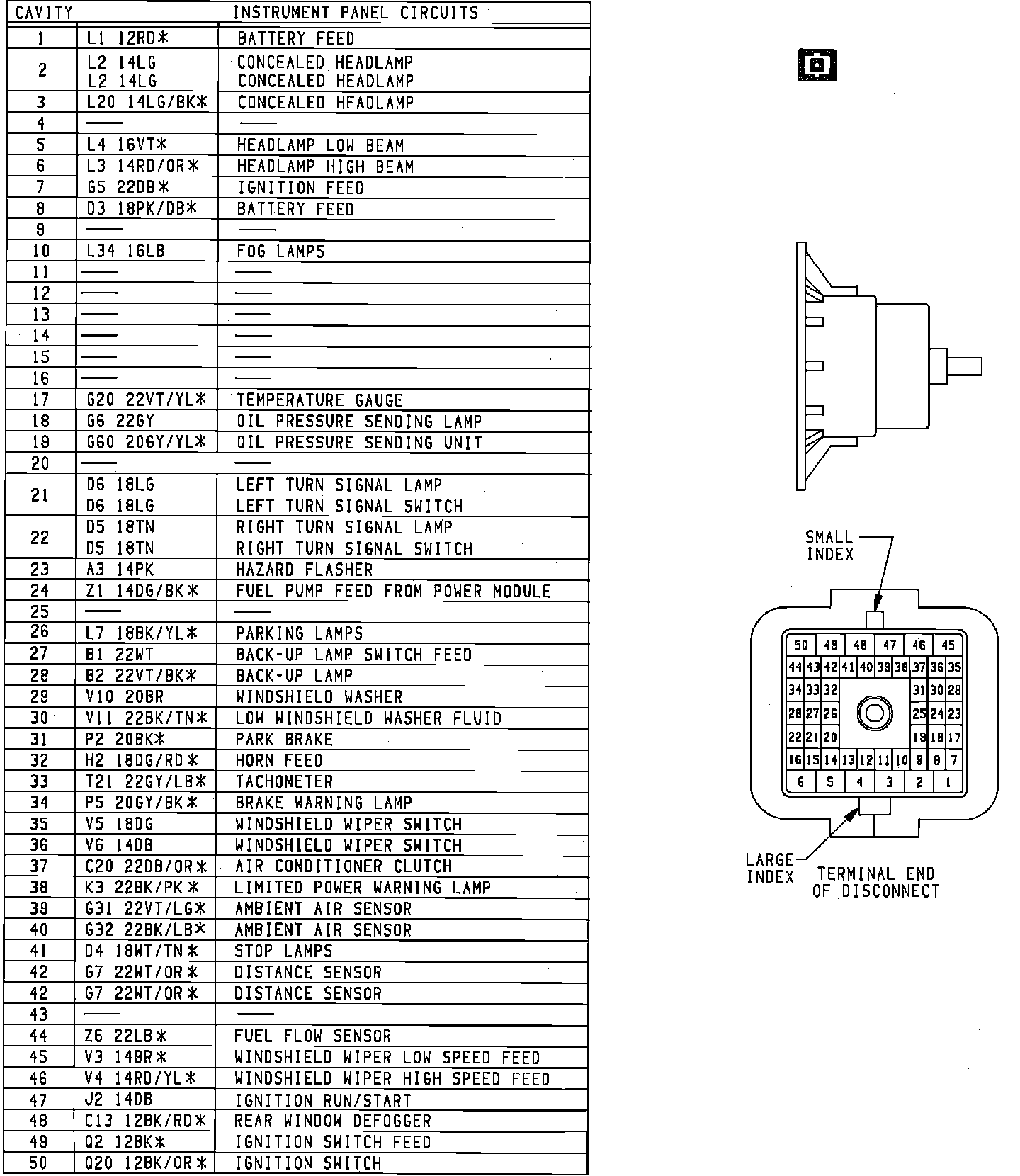

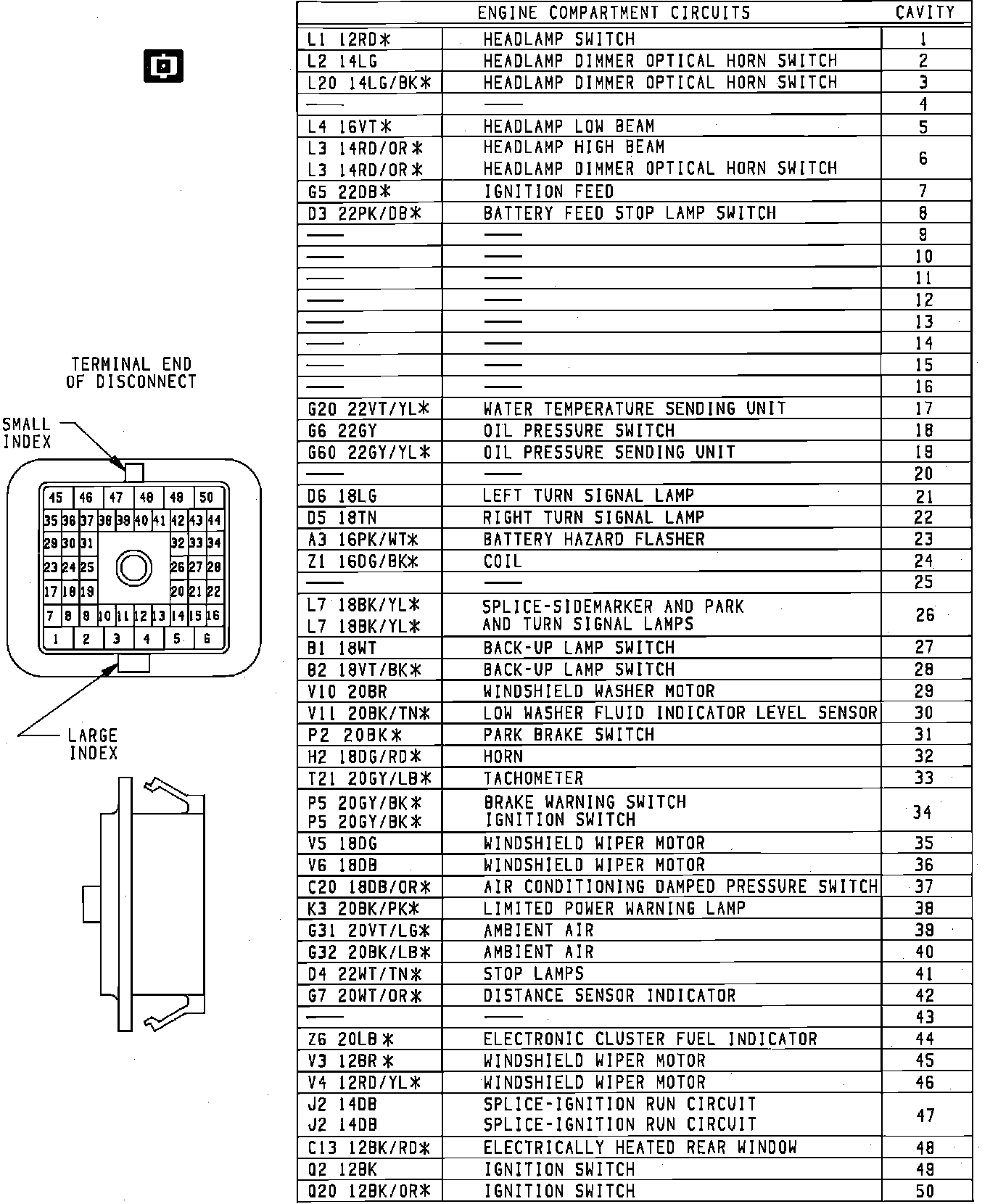

Bulkhead Connector
Bulkhead Connector
Bulkhead Connectors:
Bulkhead Connectors:
