Ignition Switch/System

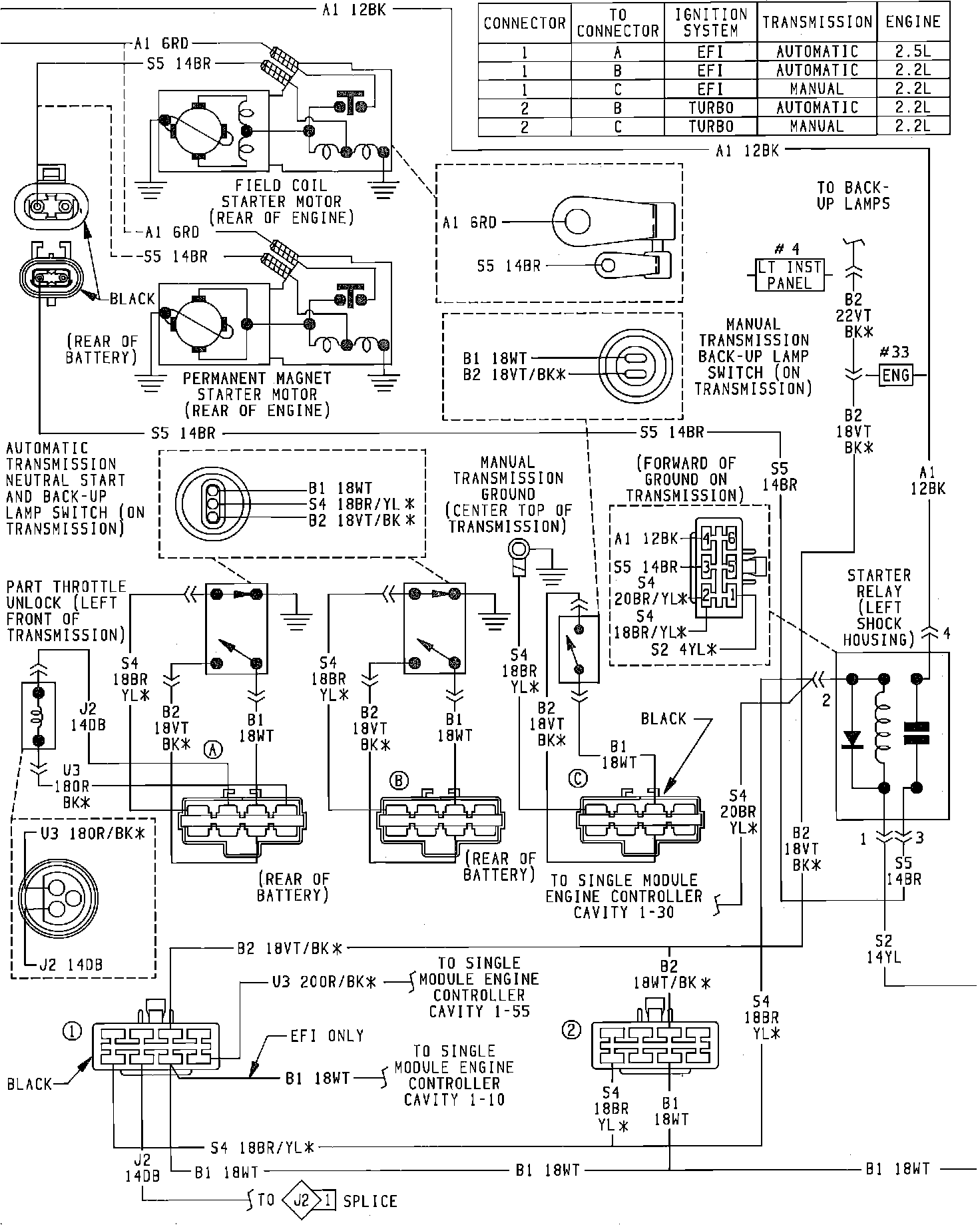

Charging, Ignition Switch & Starter Wiring Circuit:

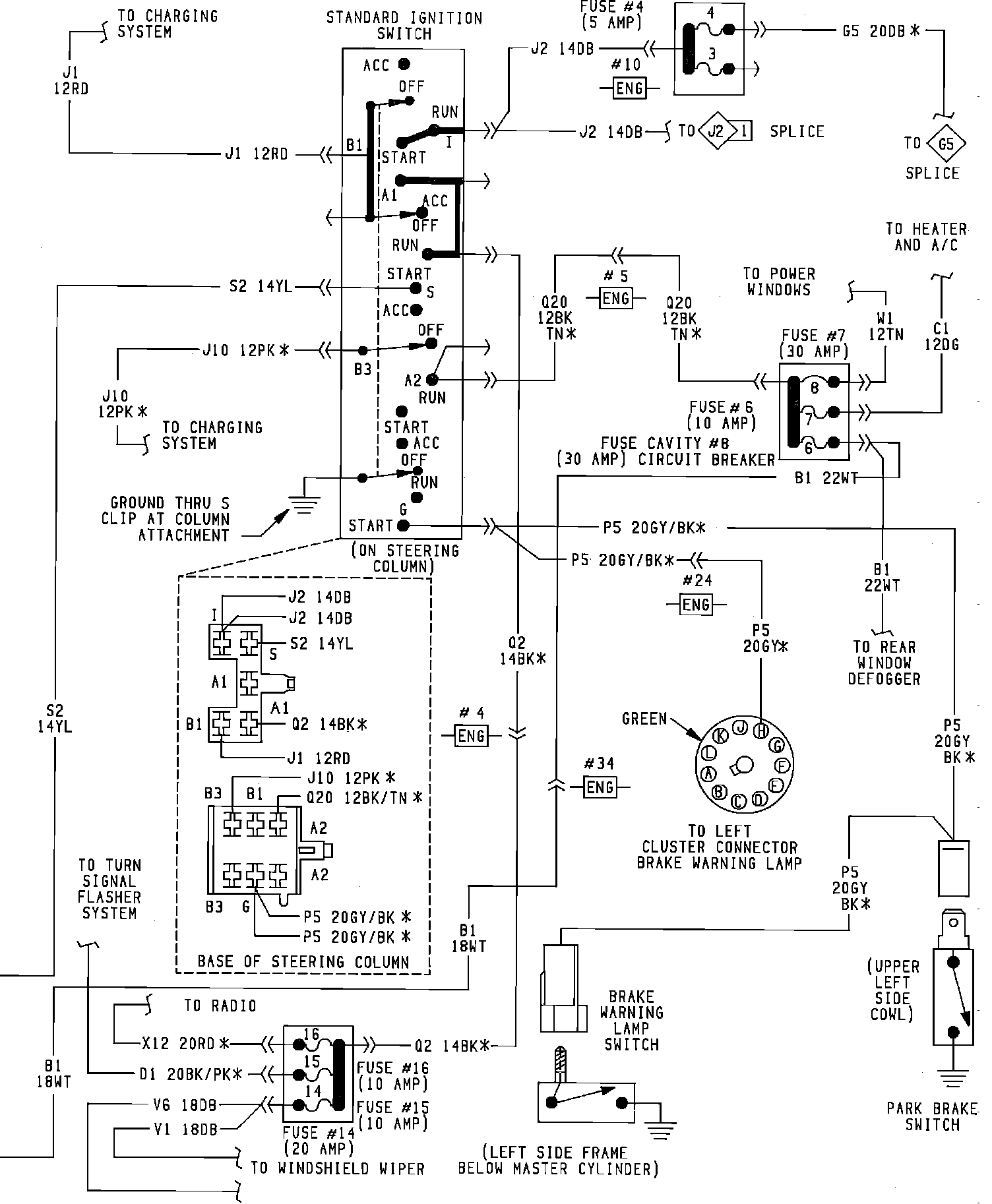

Charging, Ignition Switch & Starter Wiring Circuit:

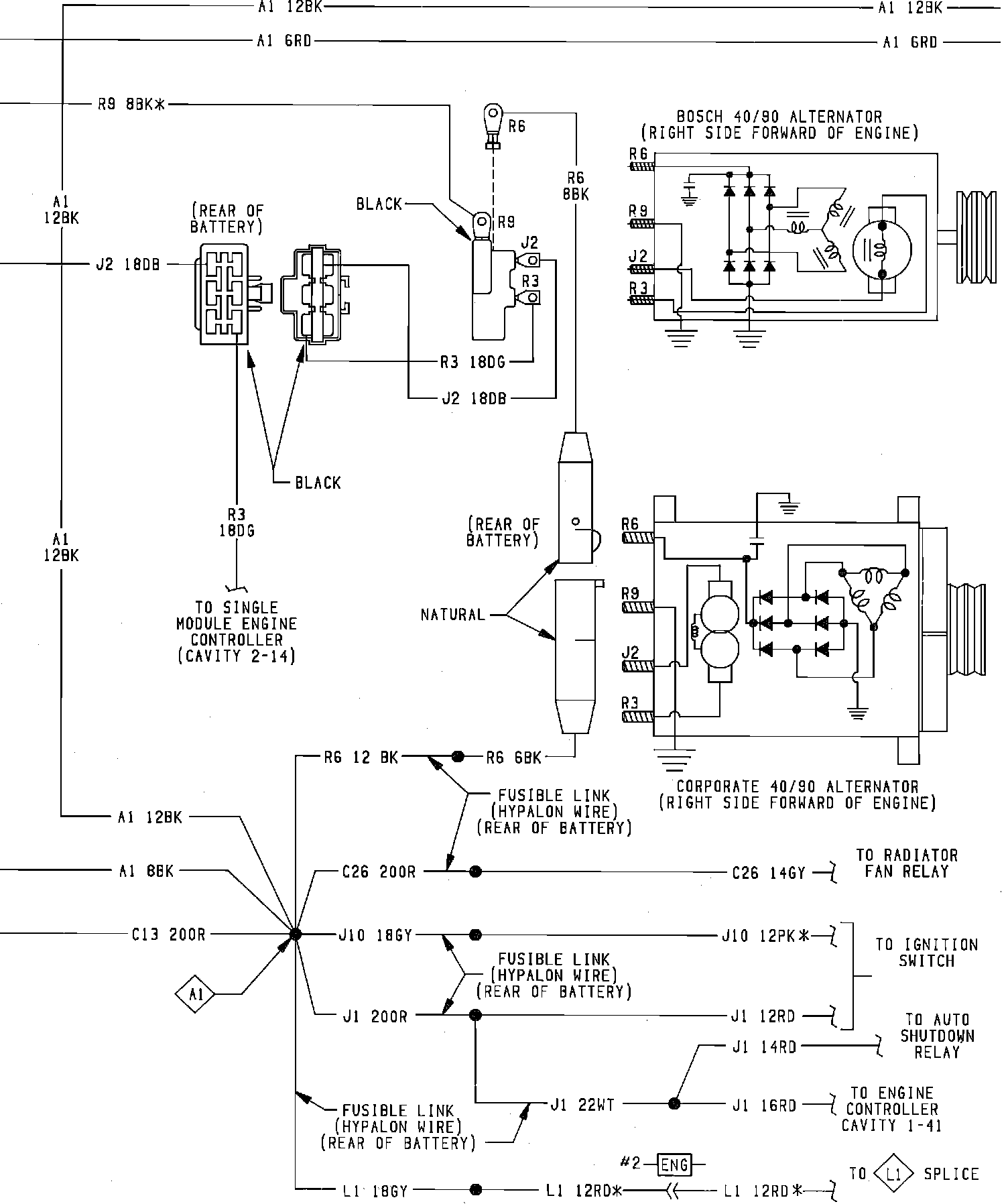

Charging, Ignition Switch & Starter Wiring Circuit:

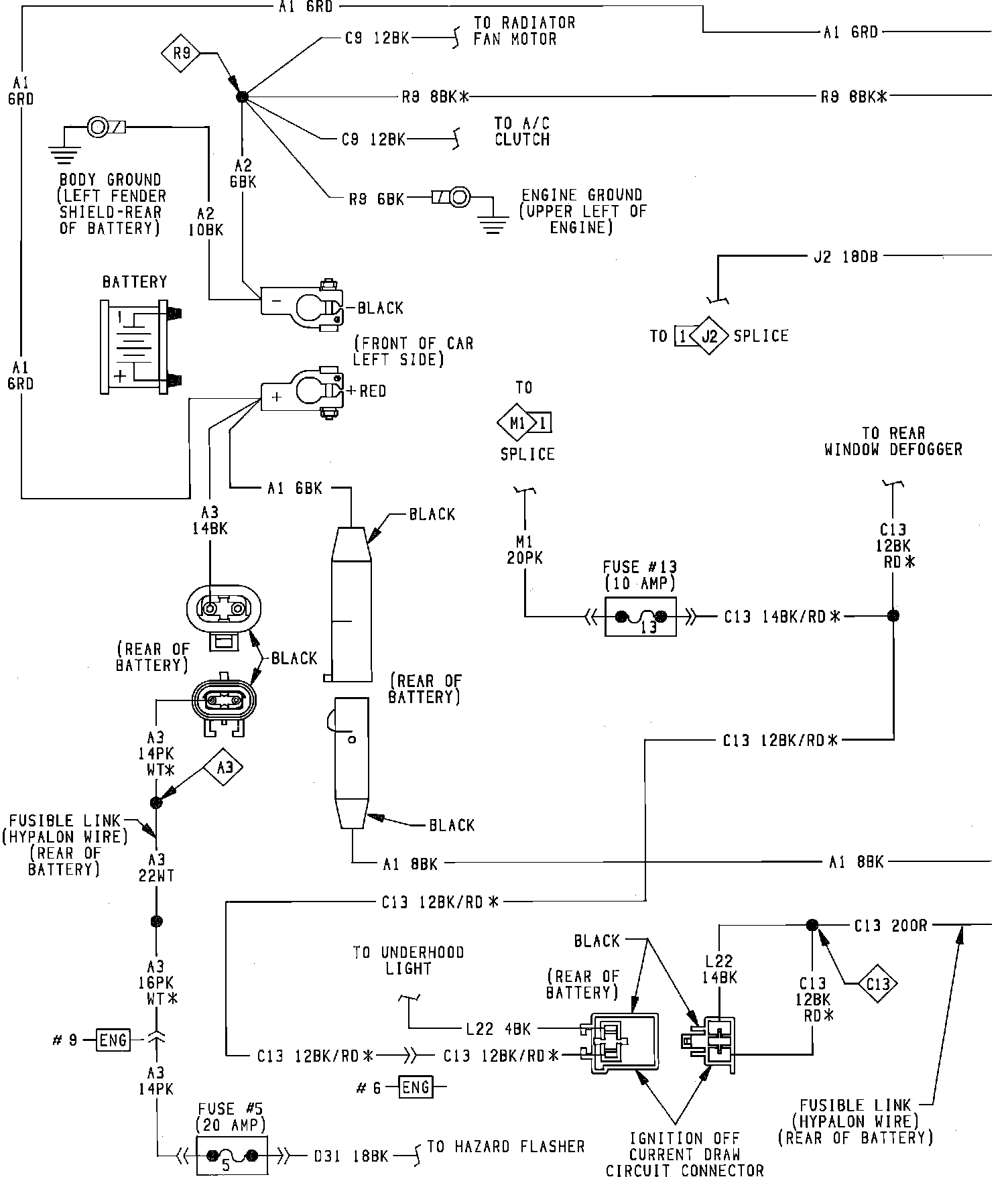

Charging, Ignition Switch & Starter Wiring Circuit:
