Home
>>
Dodge
>>
1990
>>
Dynasty L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Locations
>>
Transaxle Control Module
Transaxle Control Module

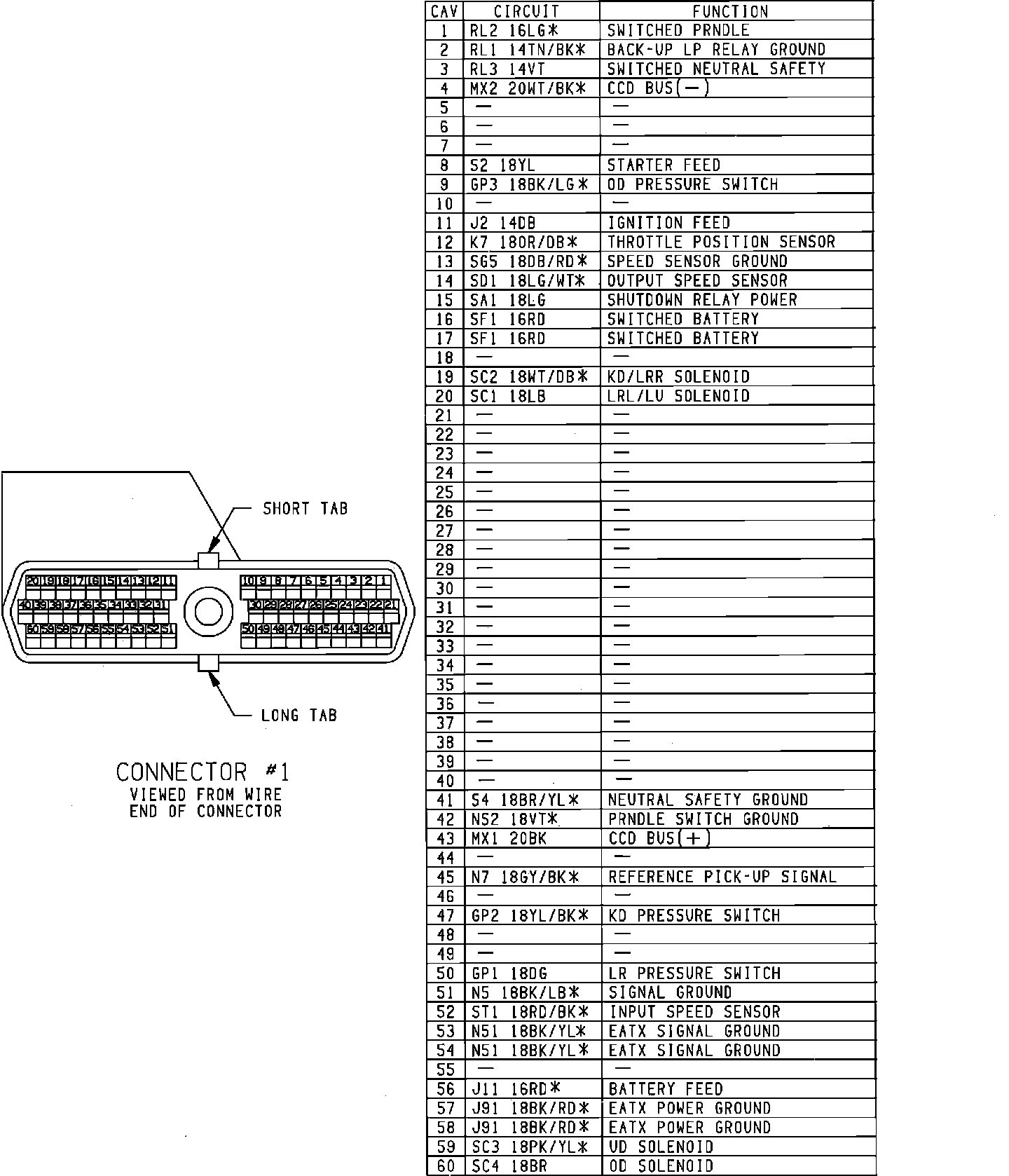

Transaxle Controller Connector:
