Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1990
>>
Monaco V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

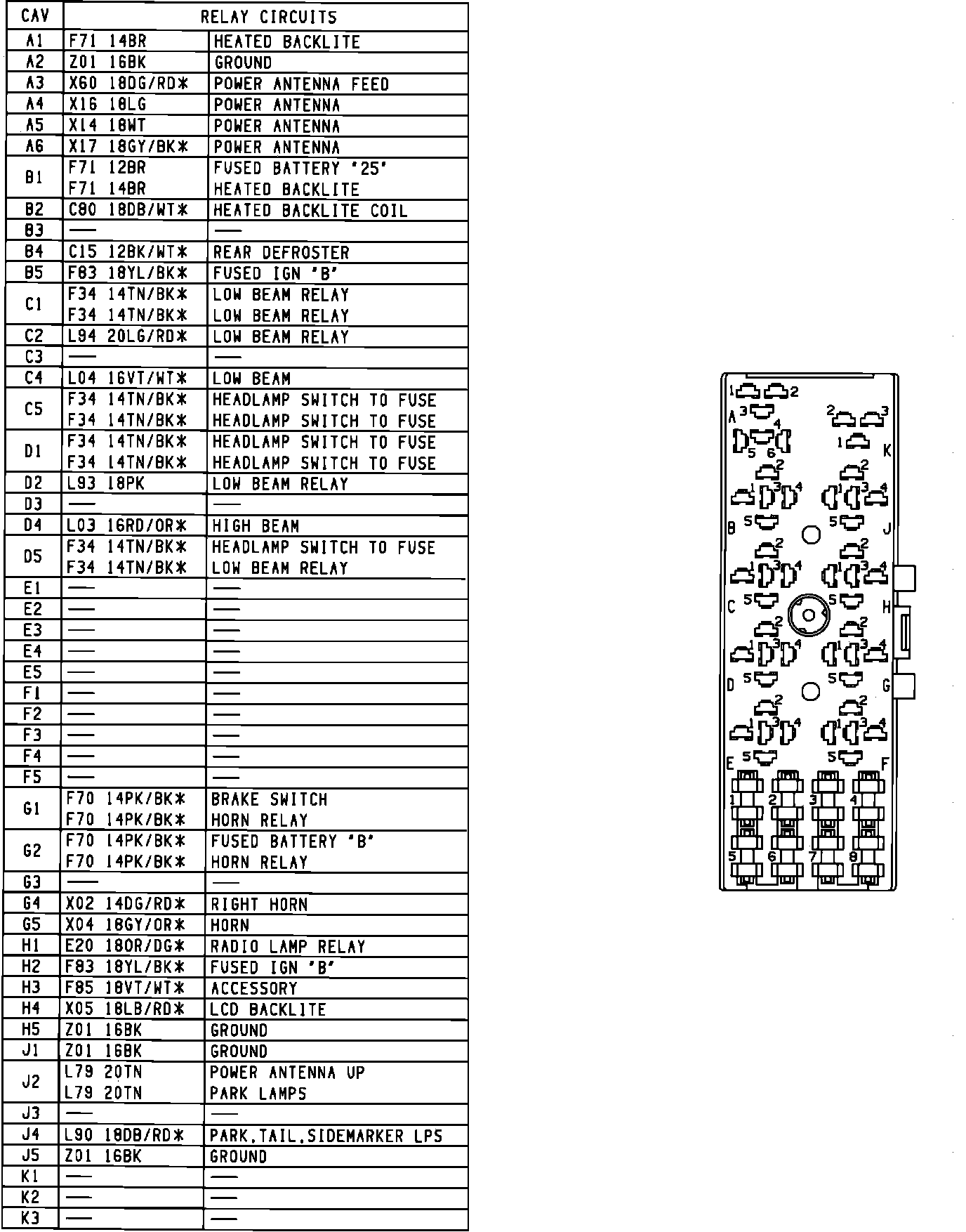

Relay Module
Relay Module
Relay Connector:
