Junction Block

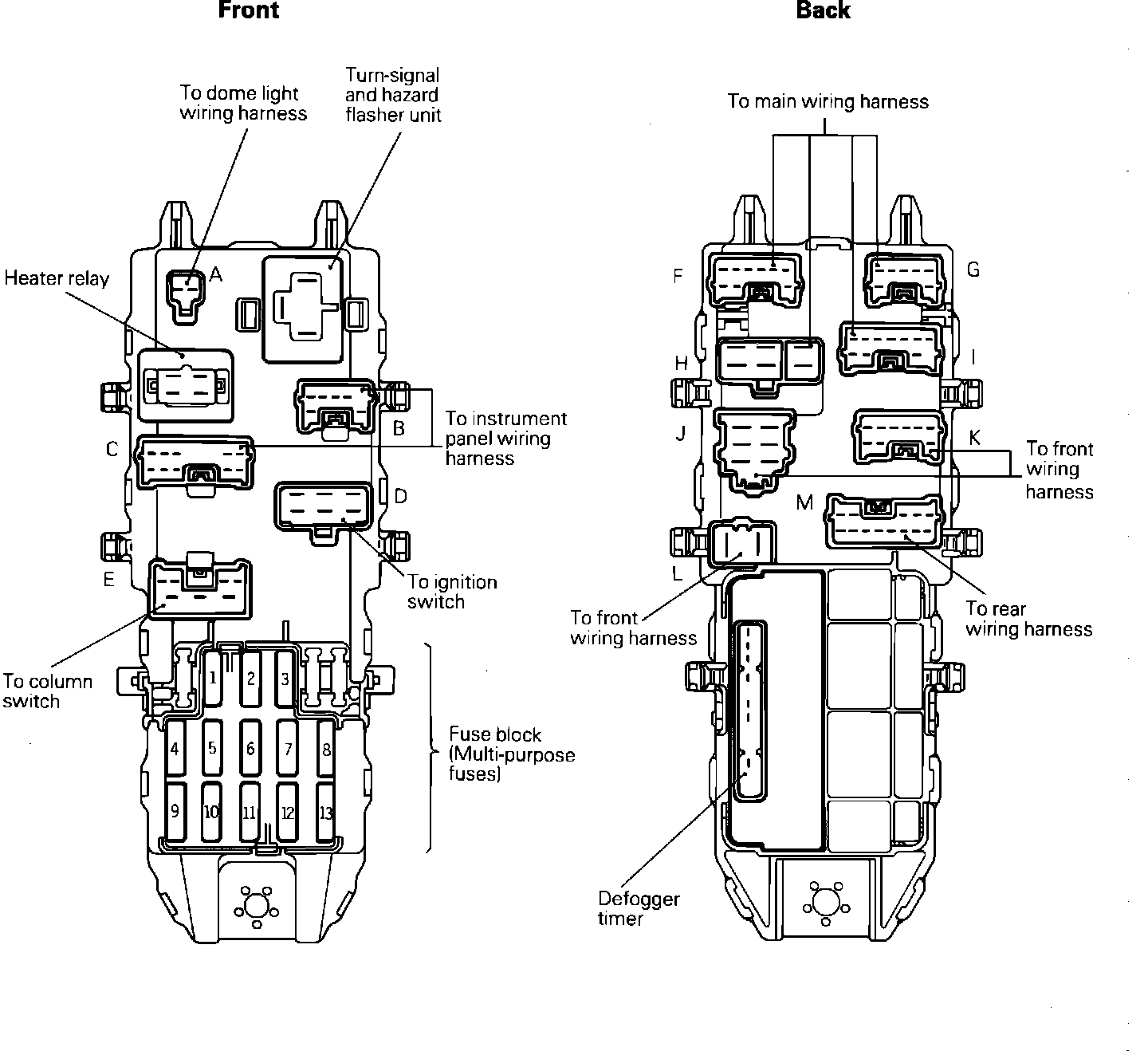

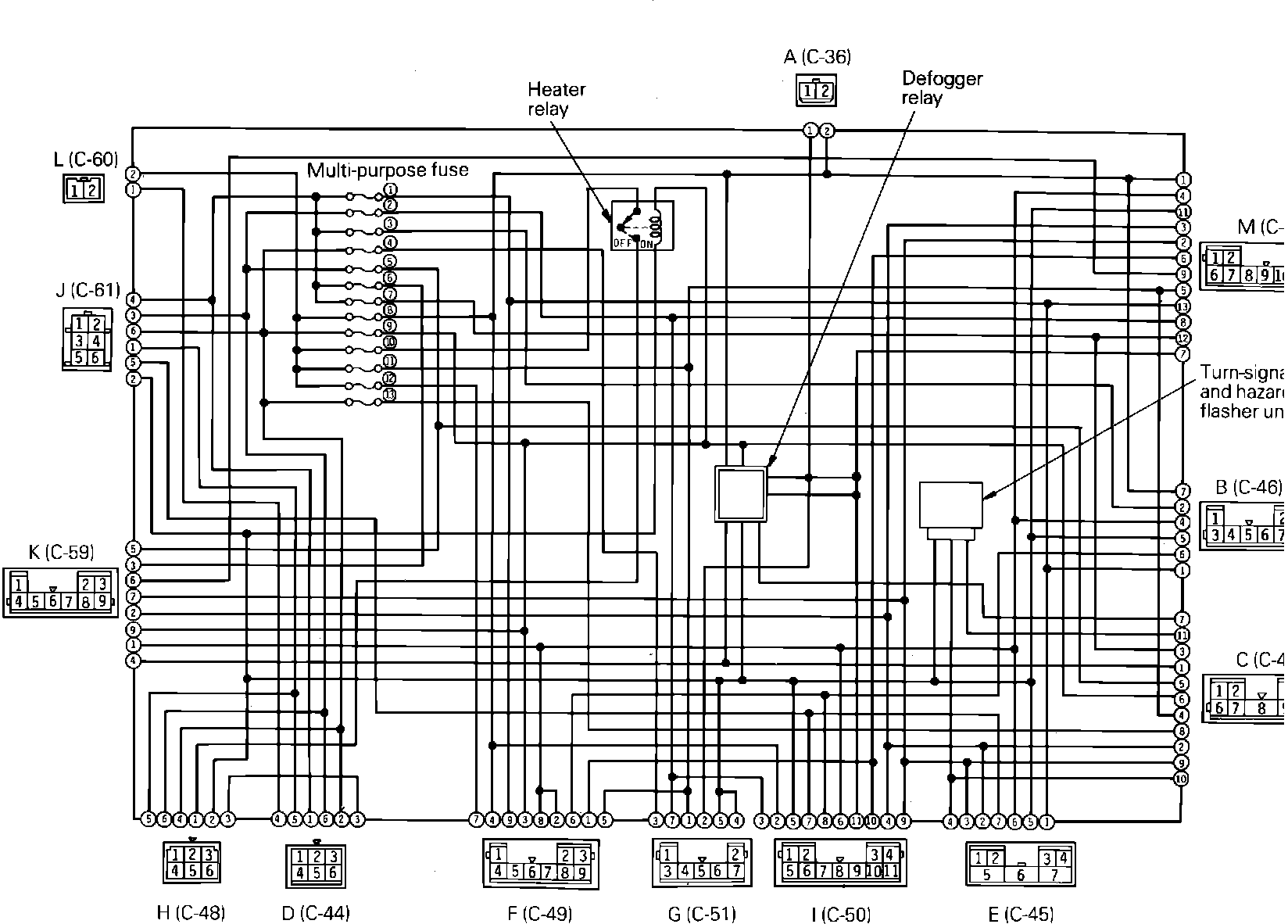

���"Fuse Panel Details. Junction Block Schematic:
Fuse Panel Details. Junction Block Schematic:
Fuse Panel:
