Crankshaft Position Sensor: Locations

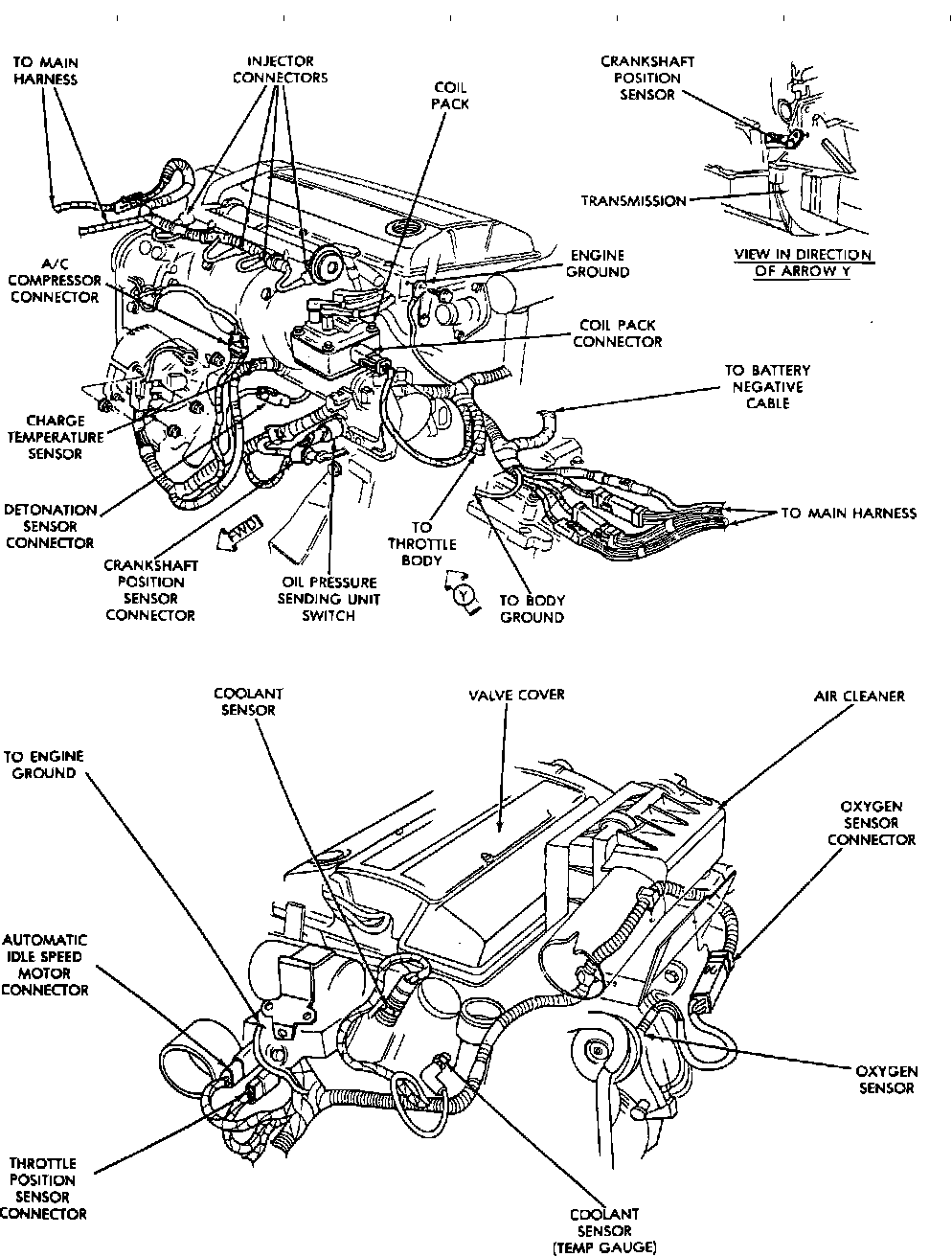

Engine Components & Connectors.:




Lower Rear LH Side Of Engine

Applicable to: 2.2L/4-135 Turbo
