Ignition Coil: Service and Repair

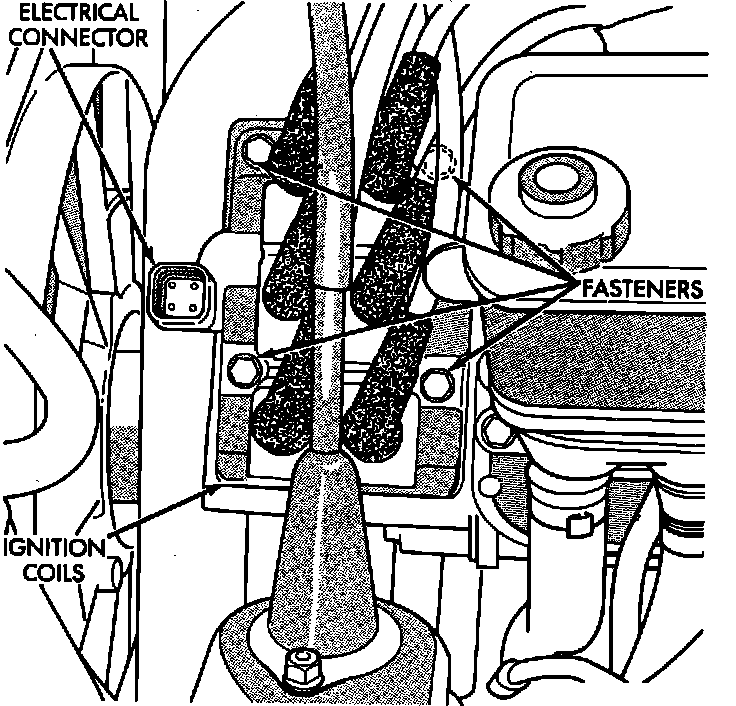

Ignition Coil-Pack:

Removal


1. Remove spark plug cables from coil.
2. Remove electrical connector.
3. Remove ignition coil fasteners.



INSTALLATION


1. Install ignition coil fasteners and torque to 105 lb-in. (12 Nm.)
2. Install electrical connector.
3. Install spark plug cables to coil.
