Power Transistor and Blower Motor Relay Circuits

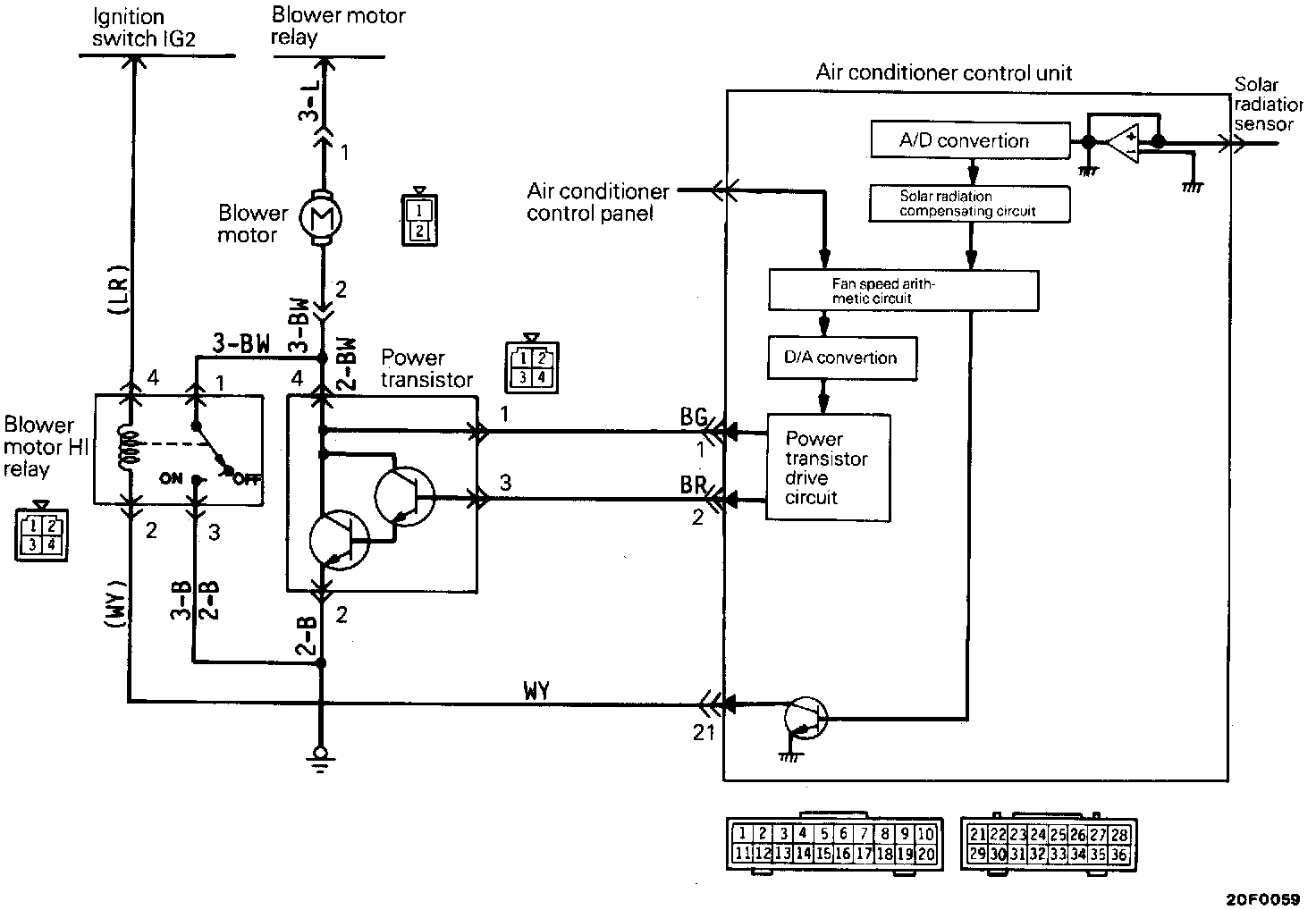

Inspection of Power Transistor and Blower Motor Relay Circuits





Troubleshooting Hints

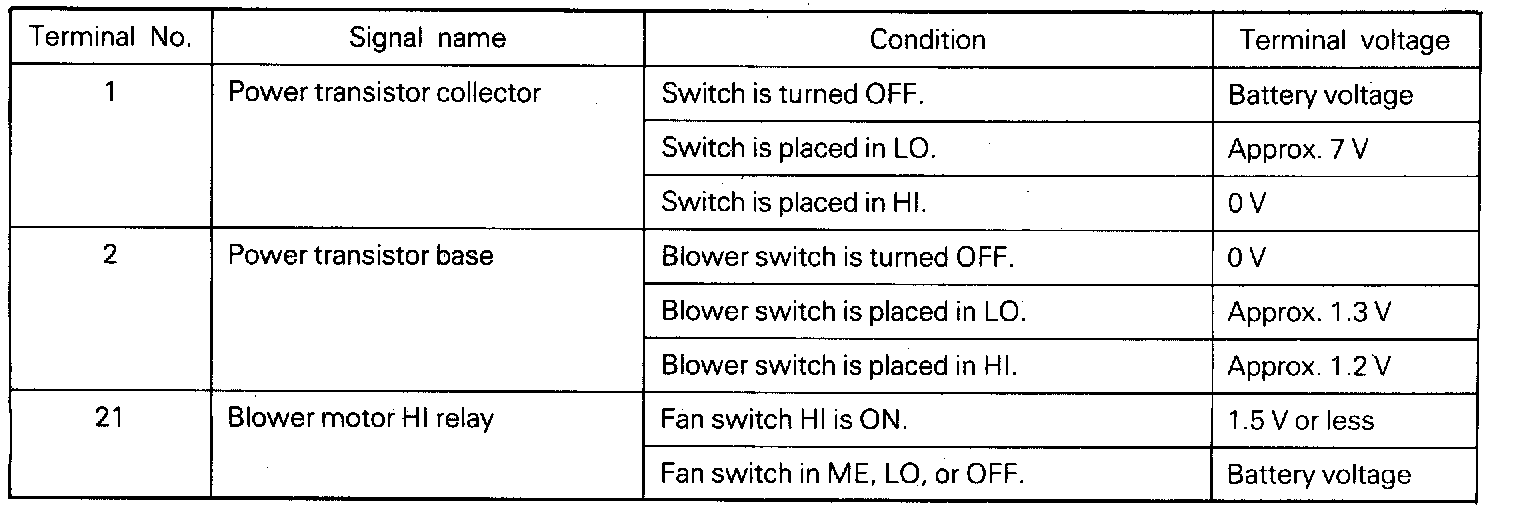

Air conditioner control unit terminal voltages
