Multiple Junction Connector
>>
Engine Connector Headlamp/Dash
Engine Connector Headlamp/Dash

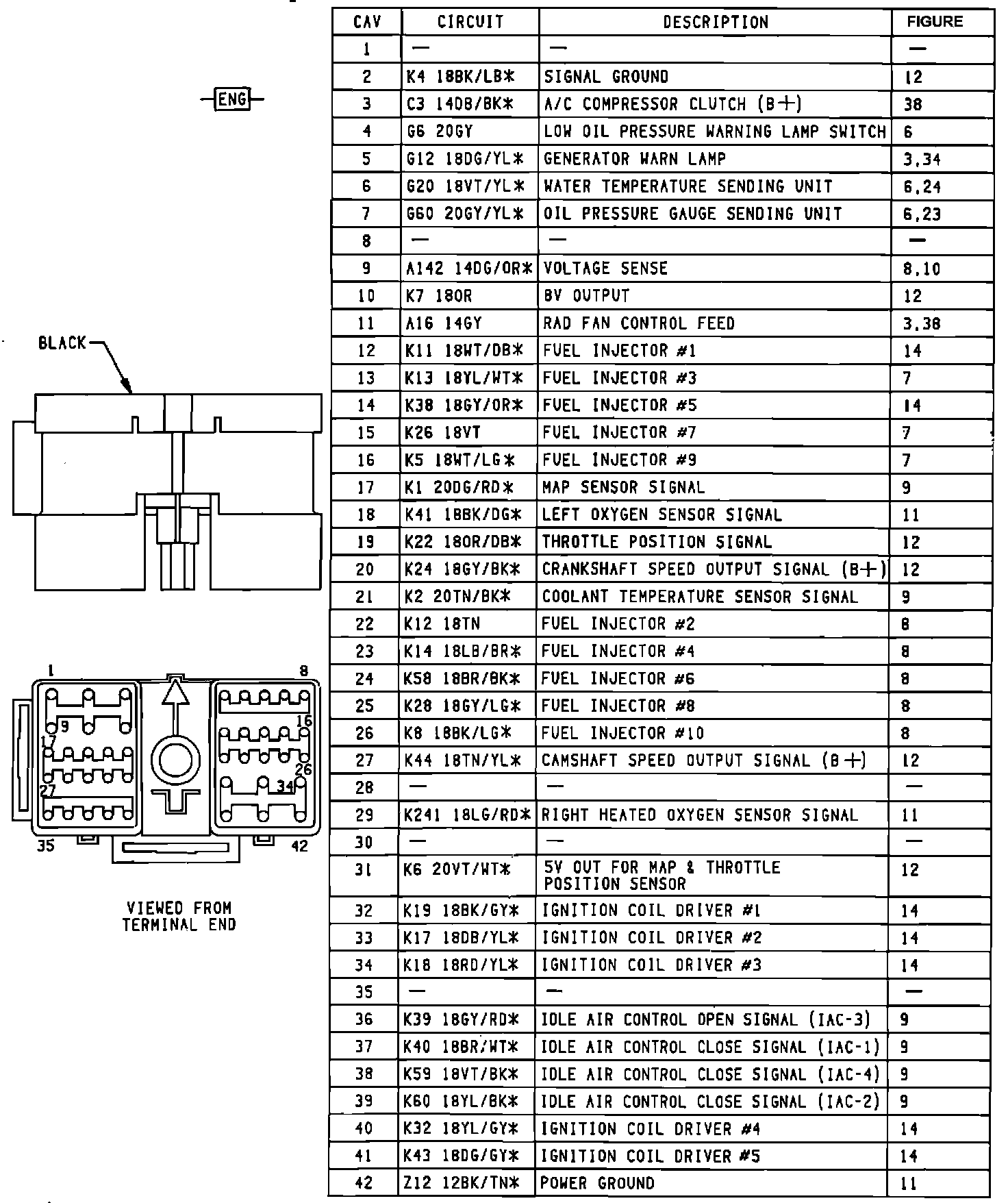

Engine Connector Engine To Headlamp And Dash:
Engine Connector Headlamp And Dash To Engine:
