Home >> Dodge >> 1992 >> Viper V10-488 8.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Connector Views >> Engine Management System Connectors >> Part 1 of 4

Part 1 of 4

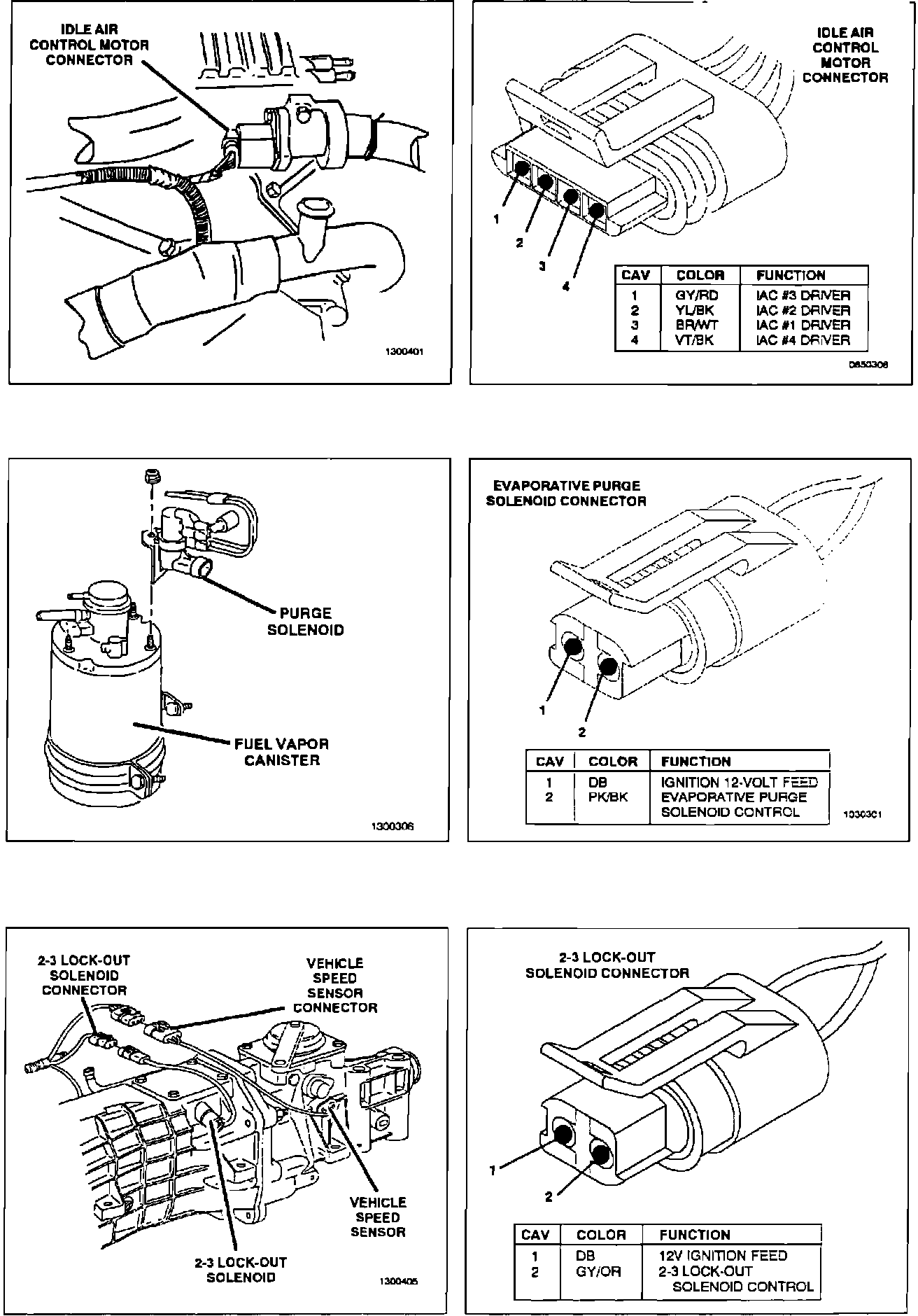

Connector Pin-Outs Part 1:
