Powertrain Management: Locations

Component/Relay/Switch Locations (Engine Management):

Component/Relay/Switch Locations (Engine Management):

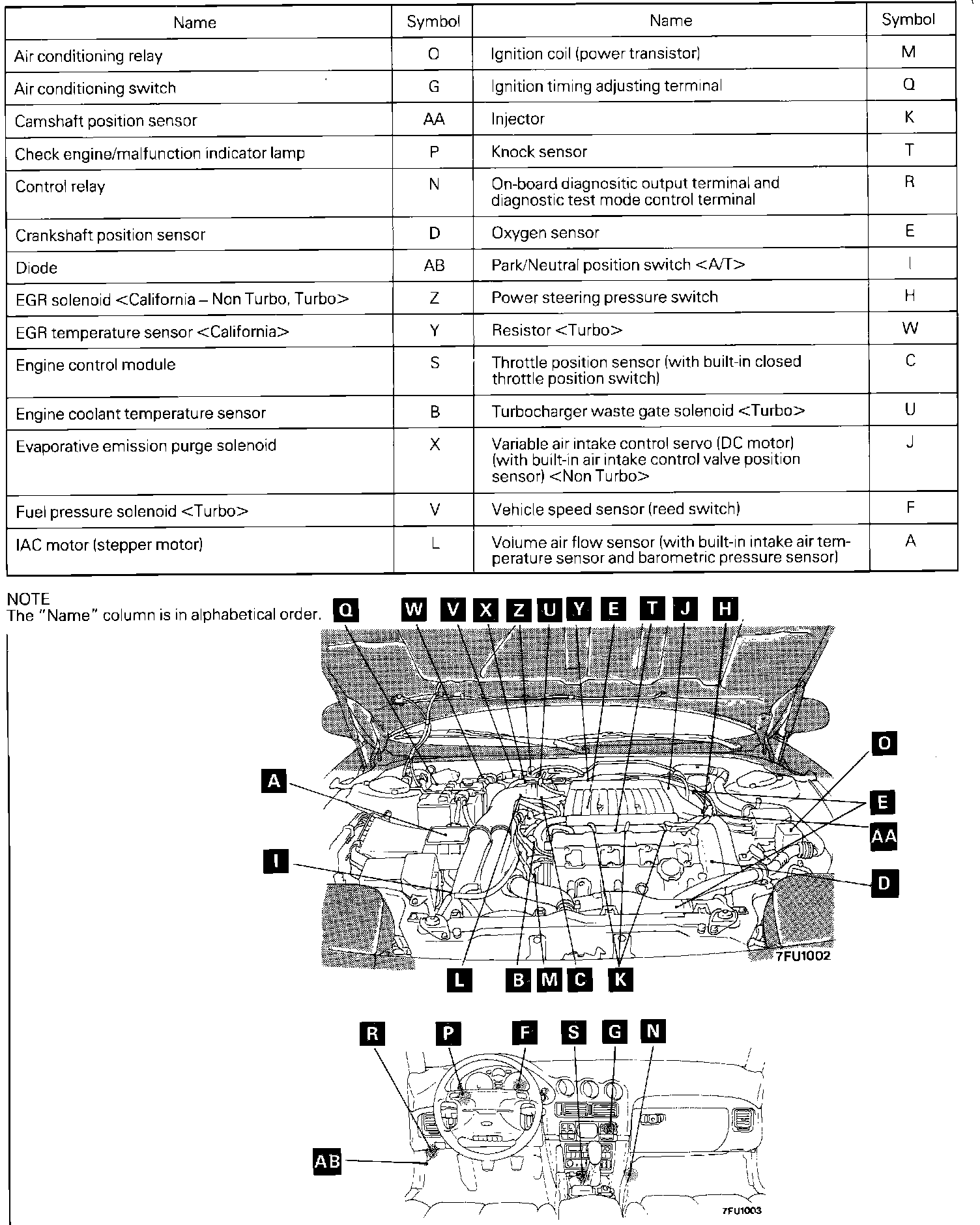

MFI Circuit Components:

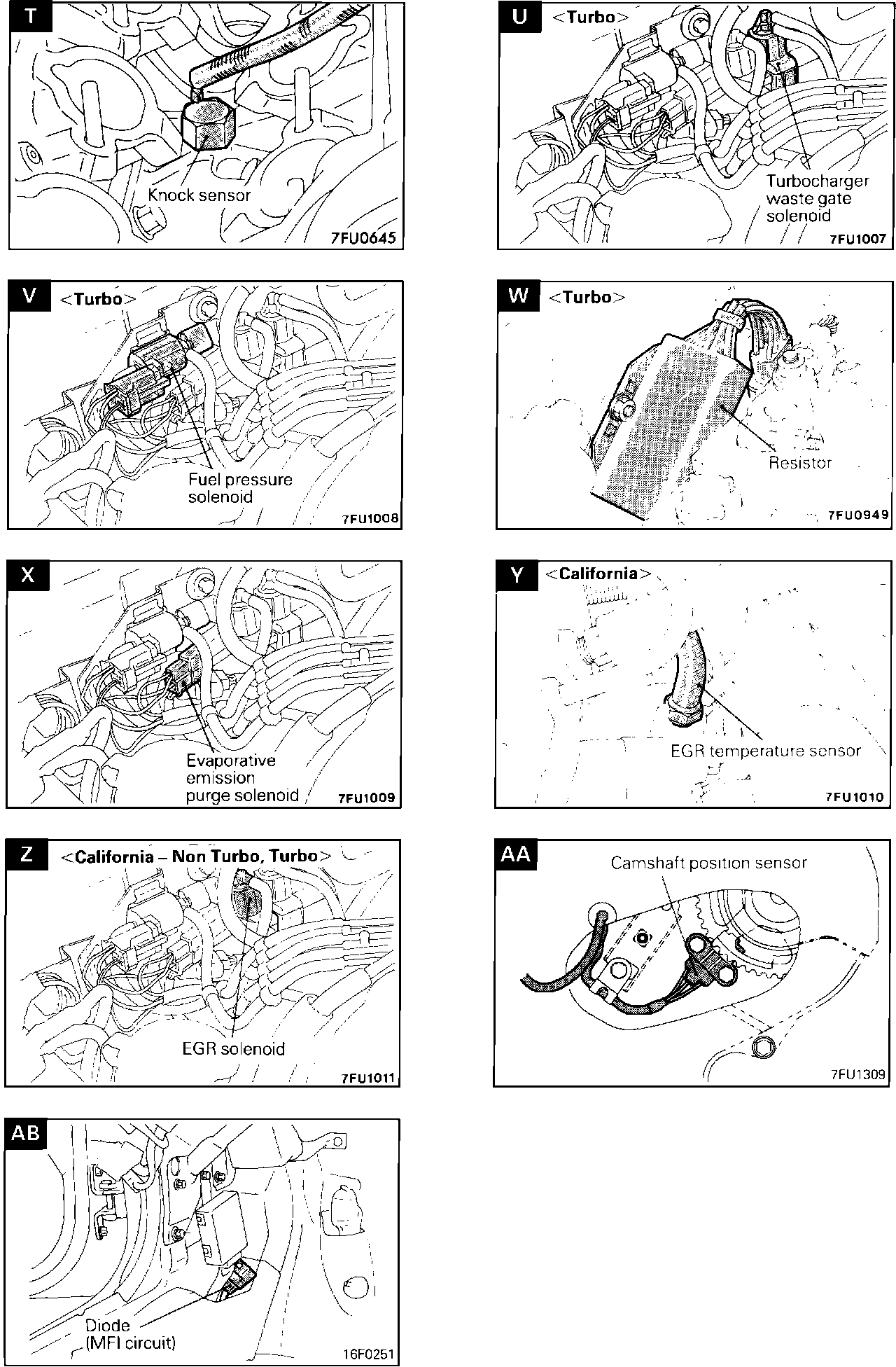

MFI Circuit Component Locations:
