Engine Management

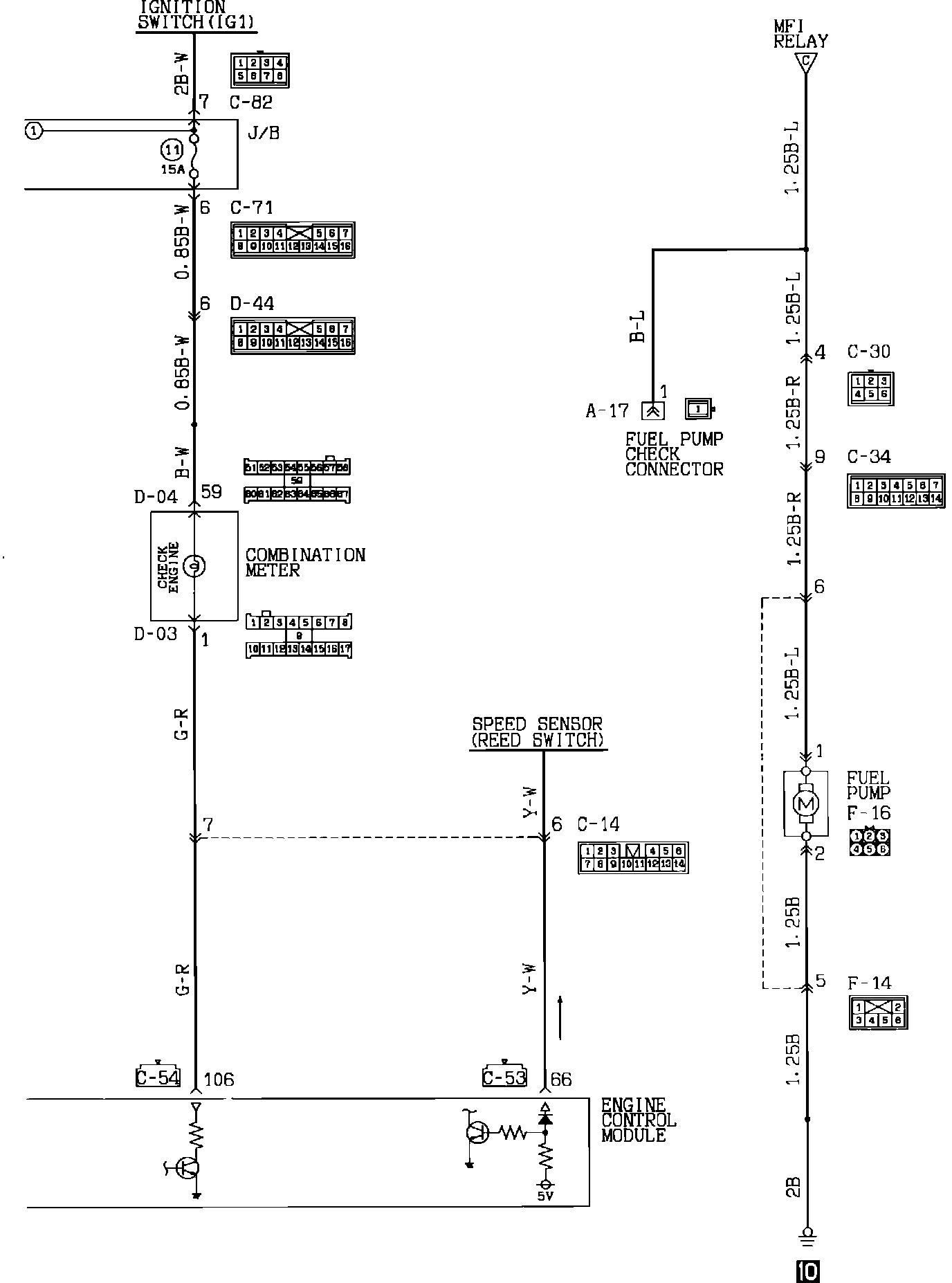

MFI Circuit Diagram:

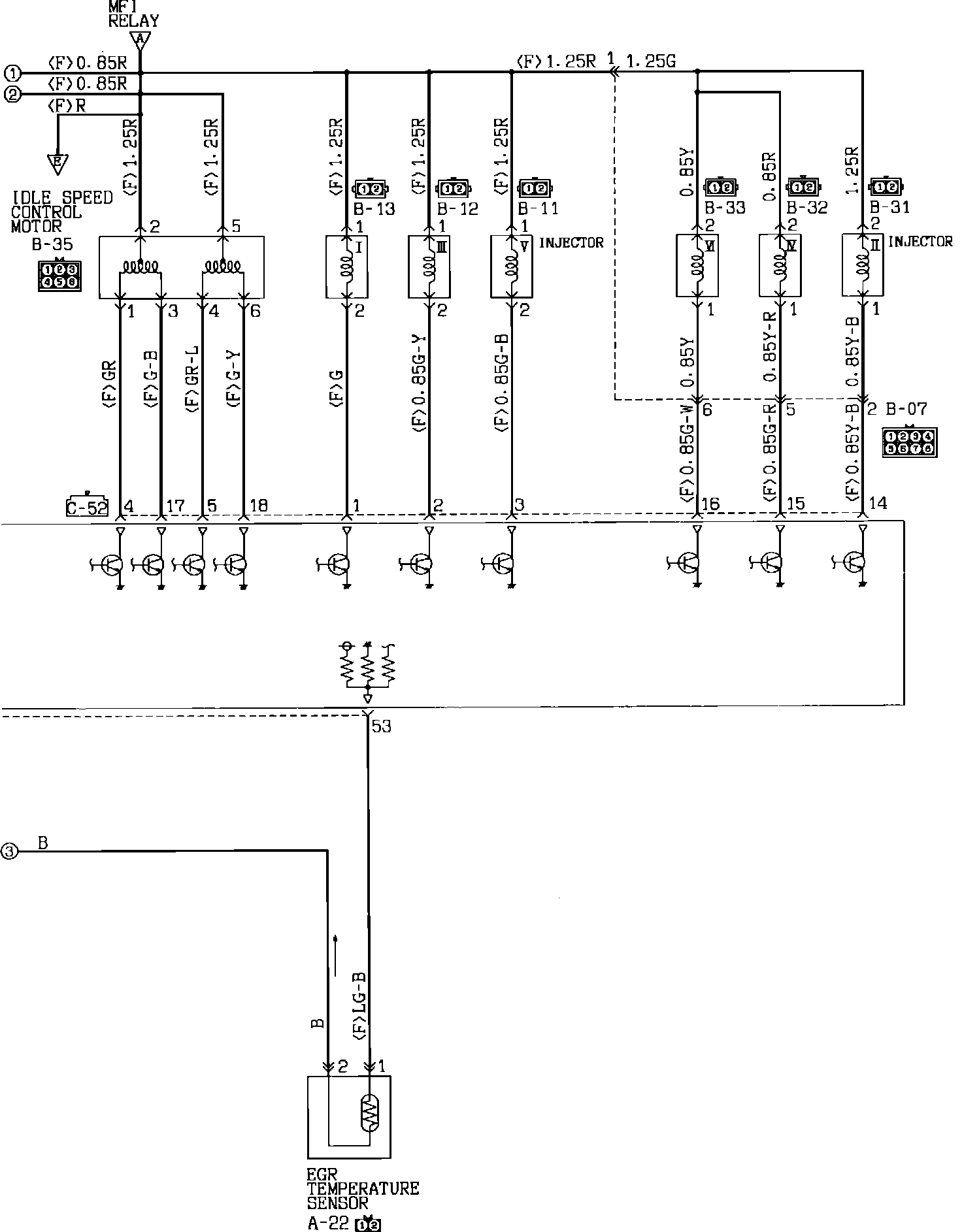

MFI Circuit Diagram:

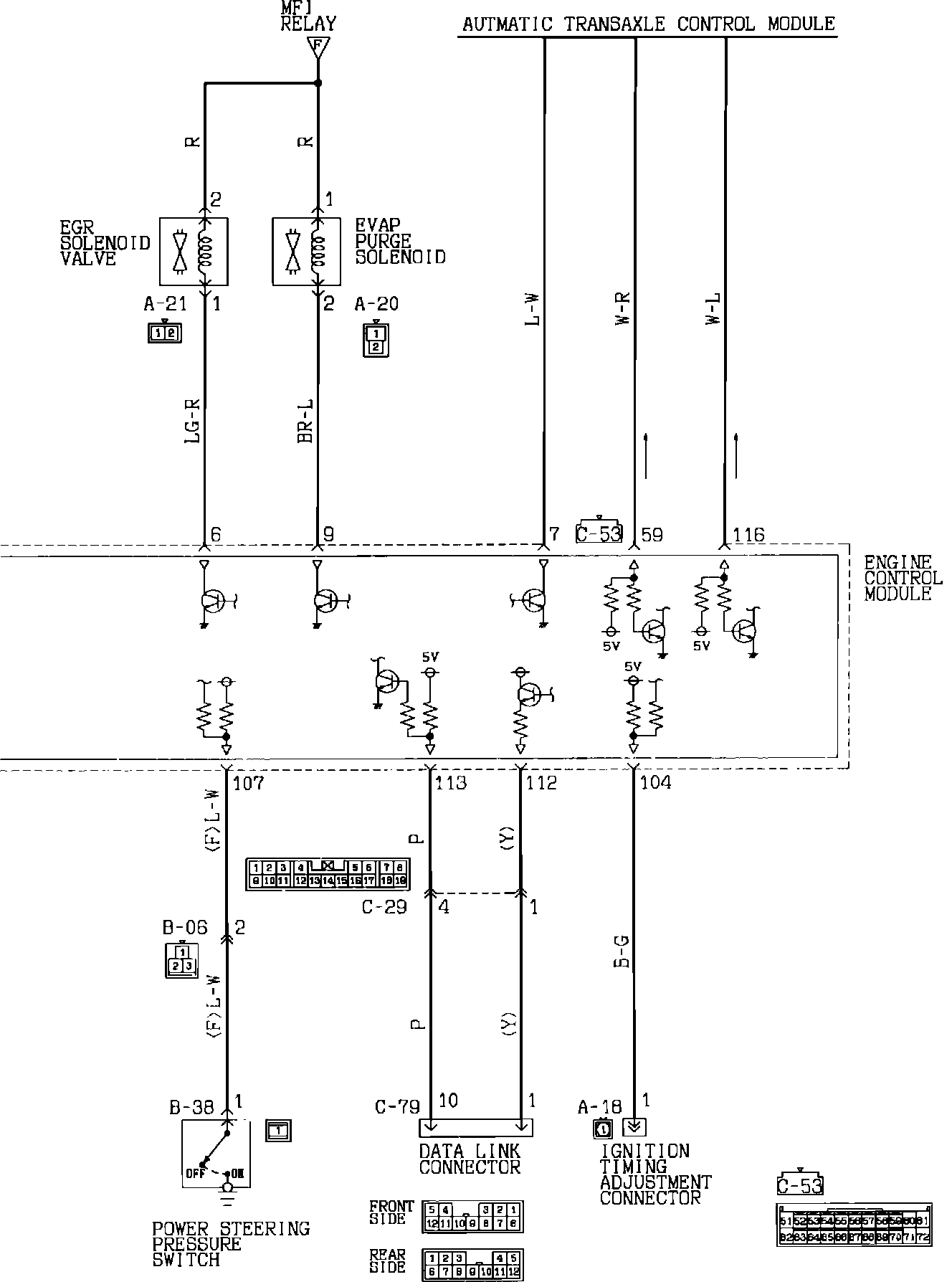

MFI Circuit Diagram:

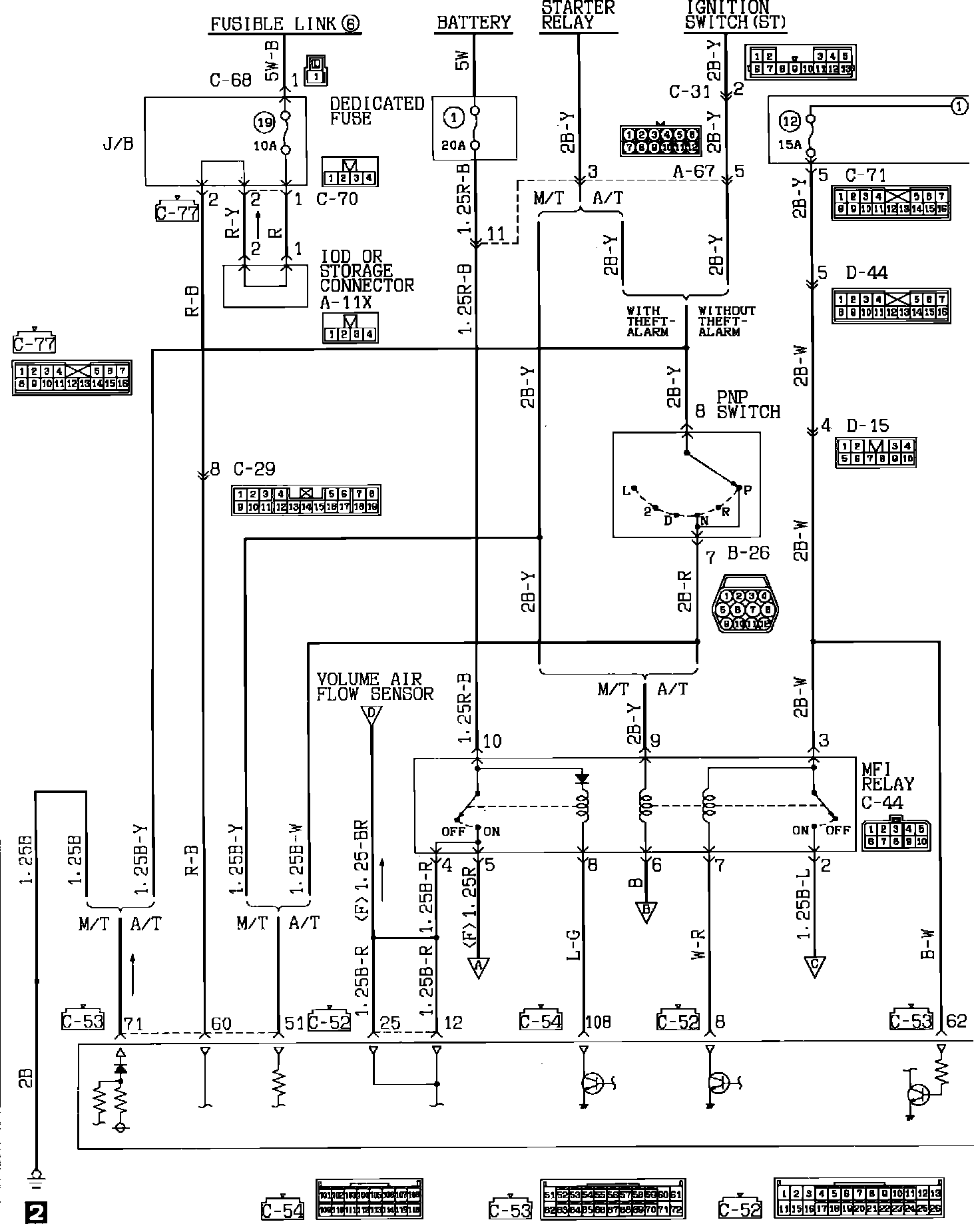

MFI Circuit Diagram:

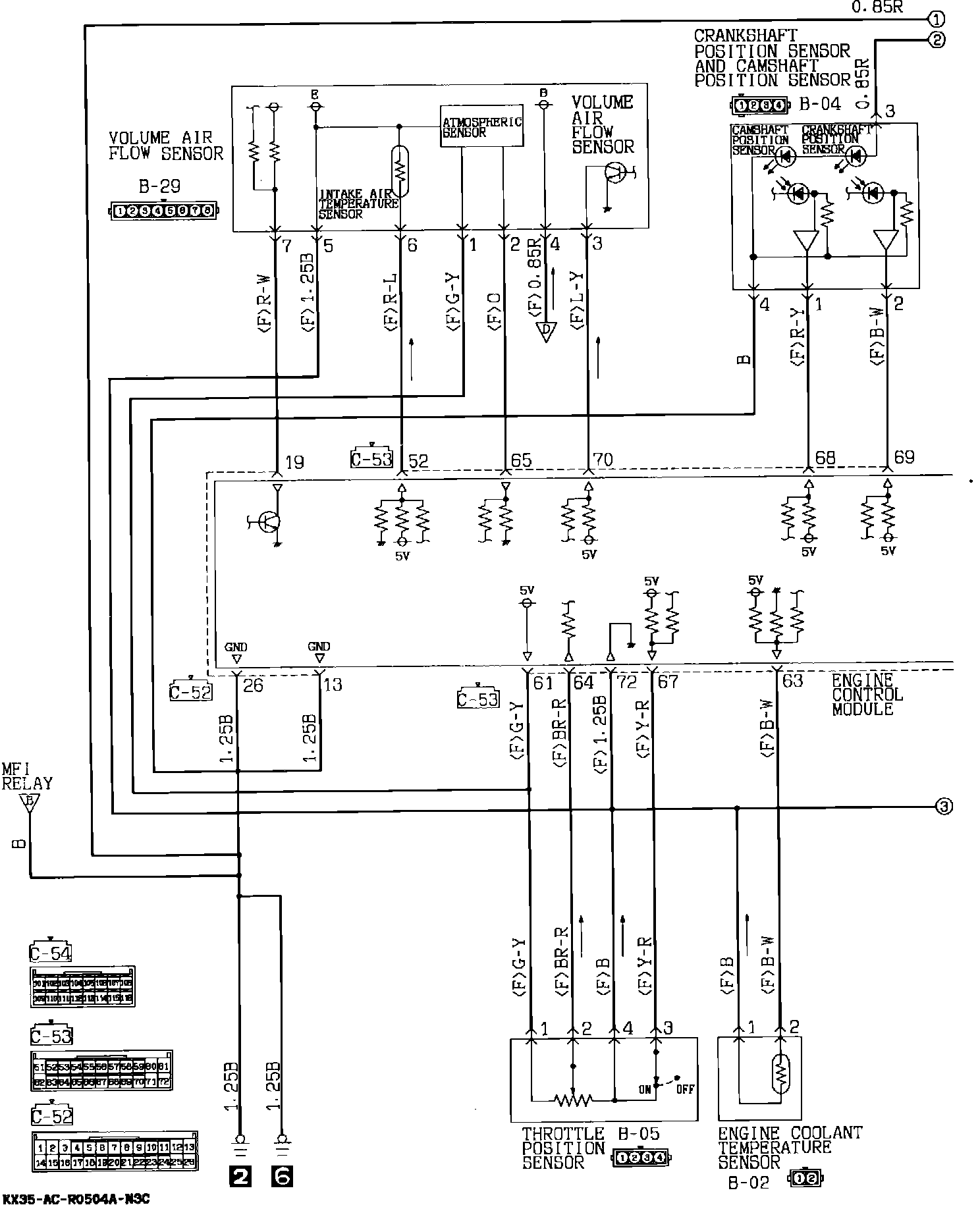

MFI Circuit Diagram:

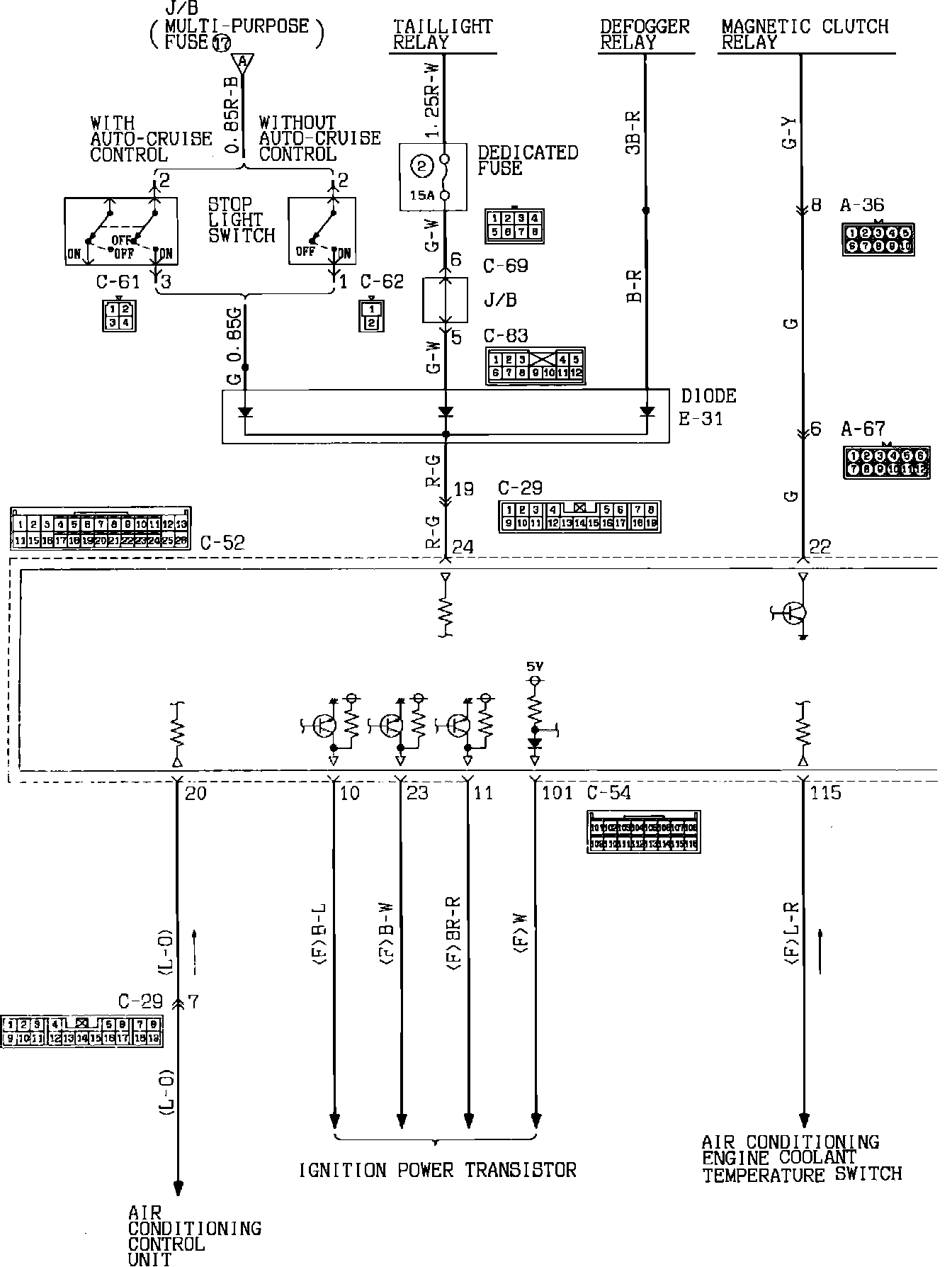

MFI Circuit Diagram:
