Alarm Module, (Vehicle Antitheft)

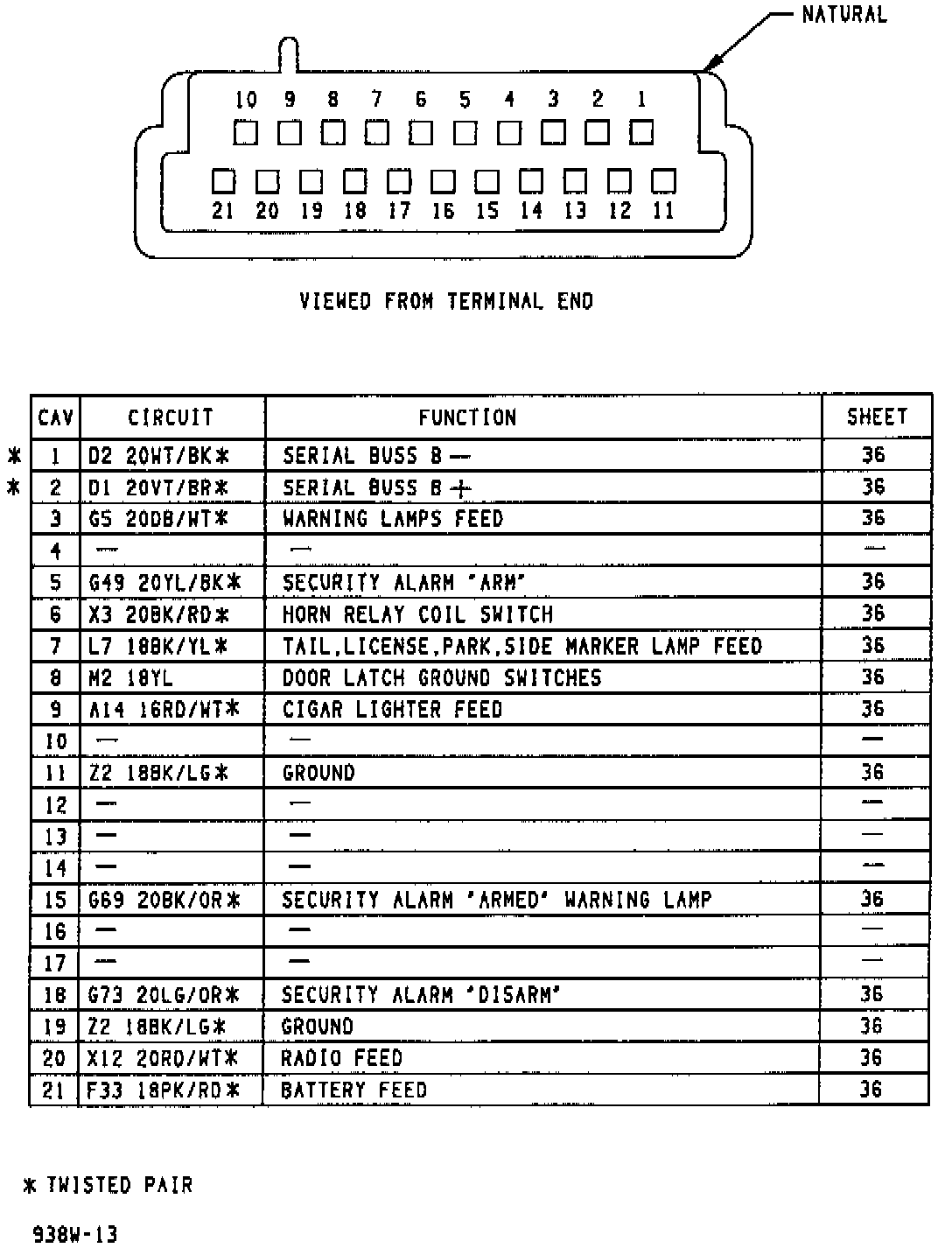

Security Alarm Module Connector:



Vehicle Theft Security System Module Connector:
