Multiple Junction Connector
>>
Bulkhead Disconnect
Bulkhead Disconnect

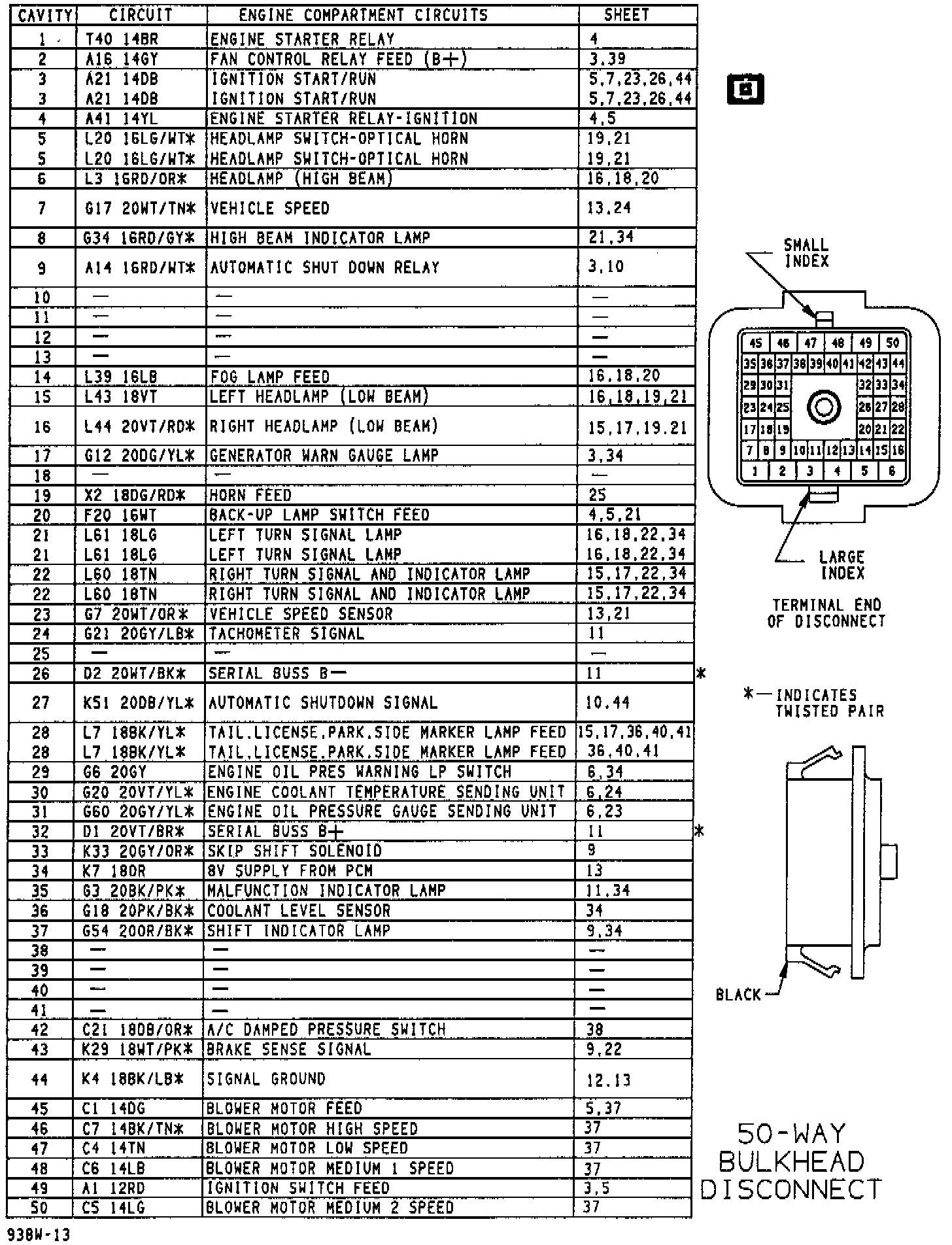

50-Way Bulkhead Disconnect:

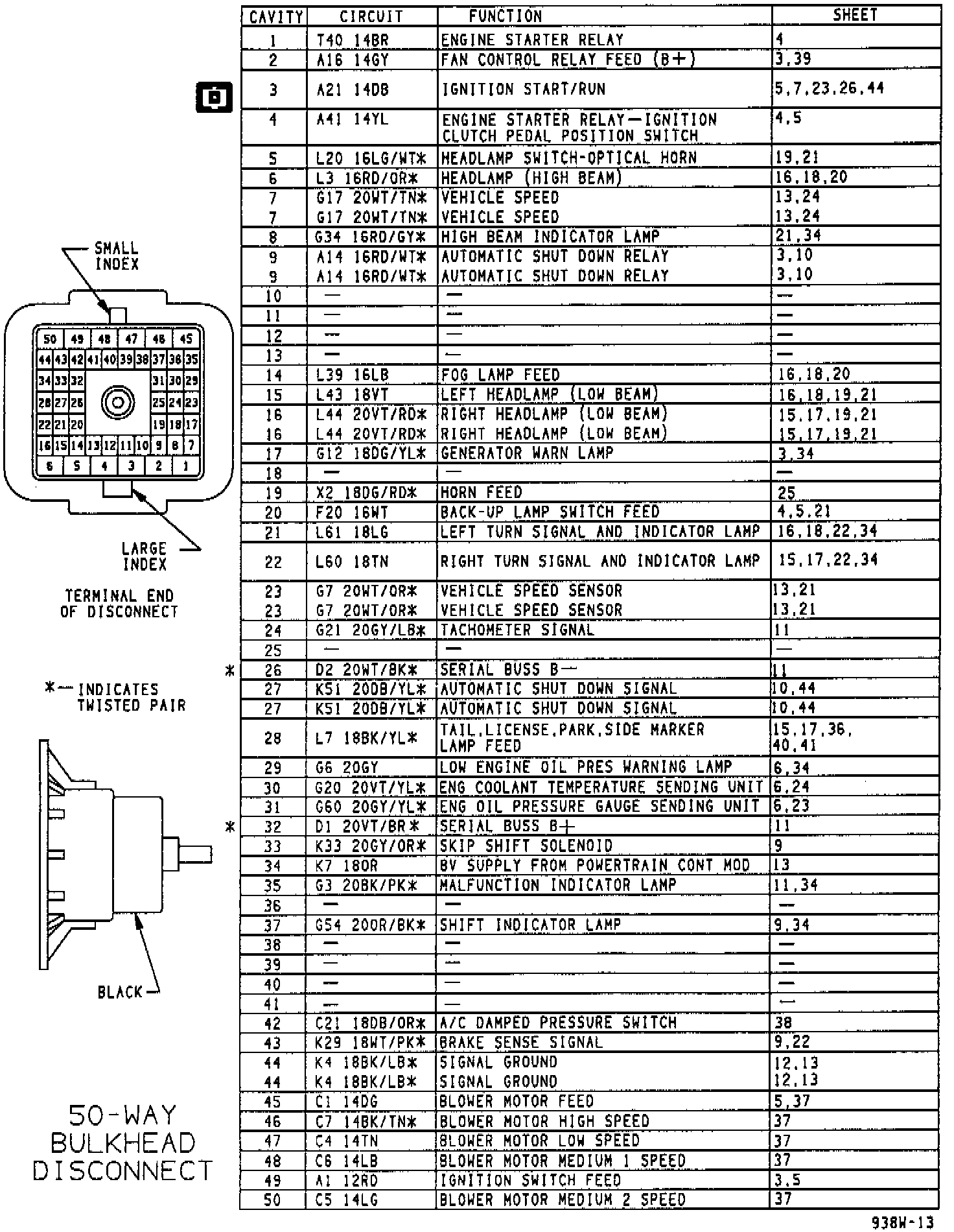

50-Way Bulkhead Disconnect:
