Home
>>
Dodge
>>
1993
>>
Viper V10-488 8.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Ignition Control Module
Ignition Control Module

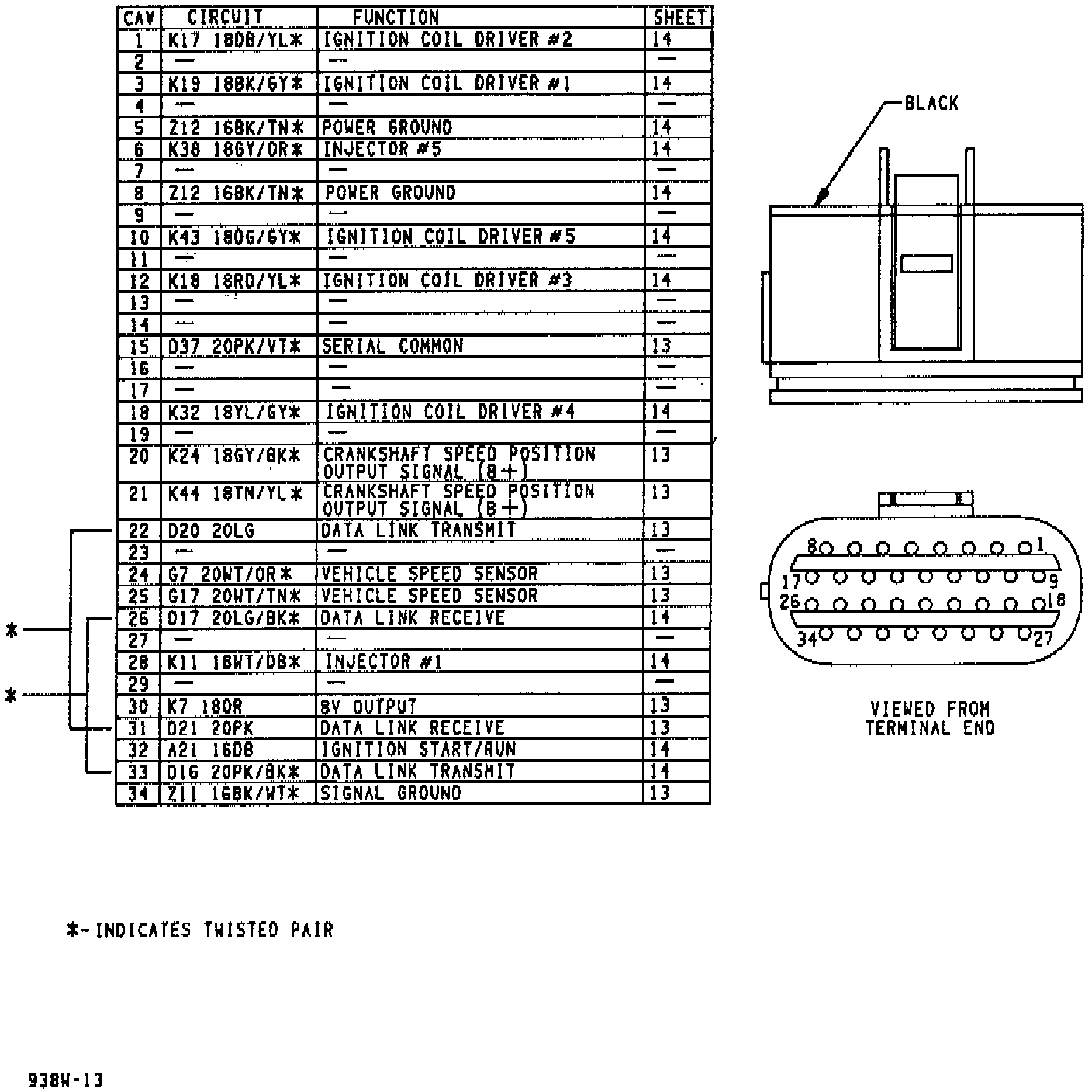

Viper Ignition Controller Connector:
