Home
>>
Dodge
>>
1994
>>
Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Connector Views
Connector Views

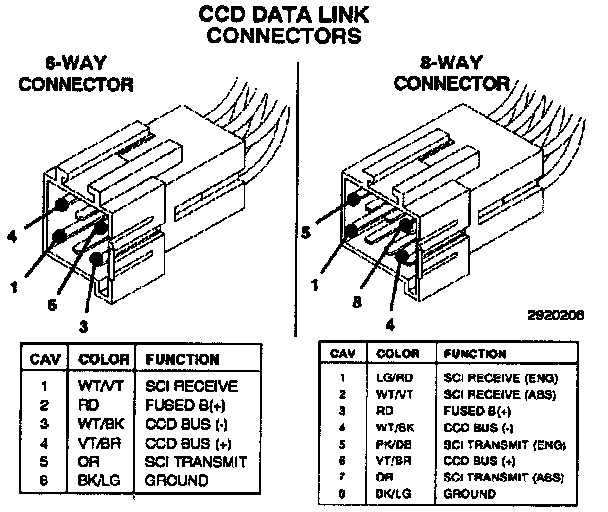

CCD Bus Connectors (Check Vehicle Connector To See Whether It Is Equipped With The Six Way Or The Eight Way Type):
