Home
>>
Dodge
>>
1994
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Exploded Views
Exploded Views

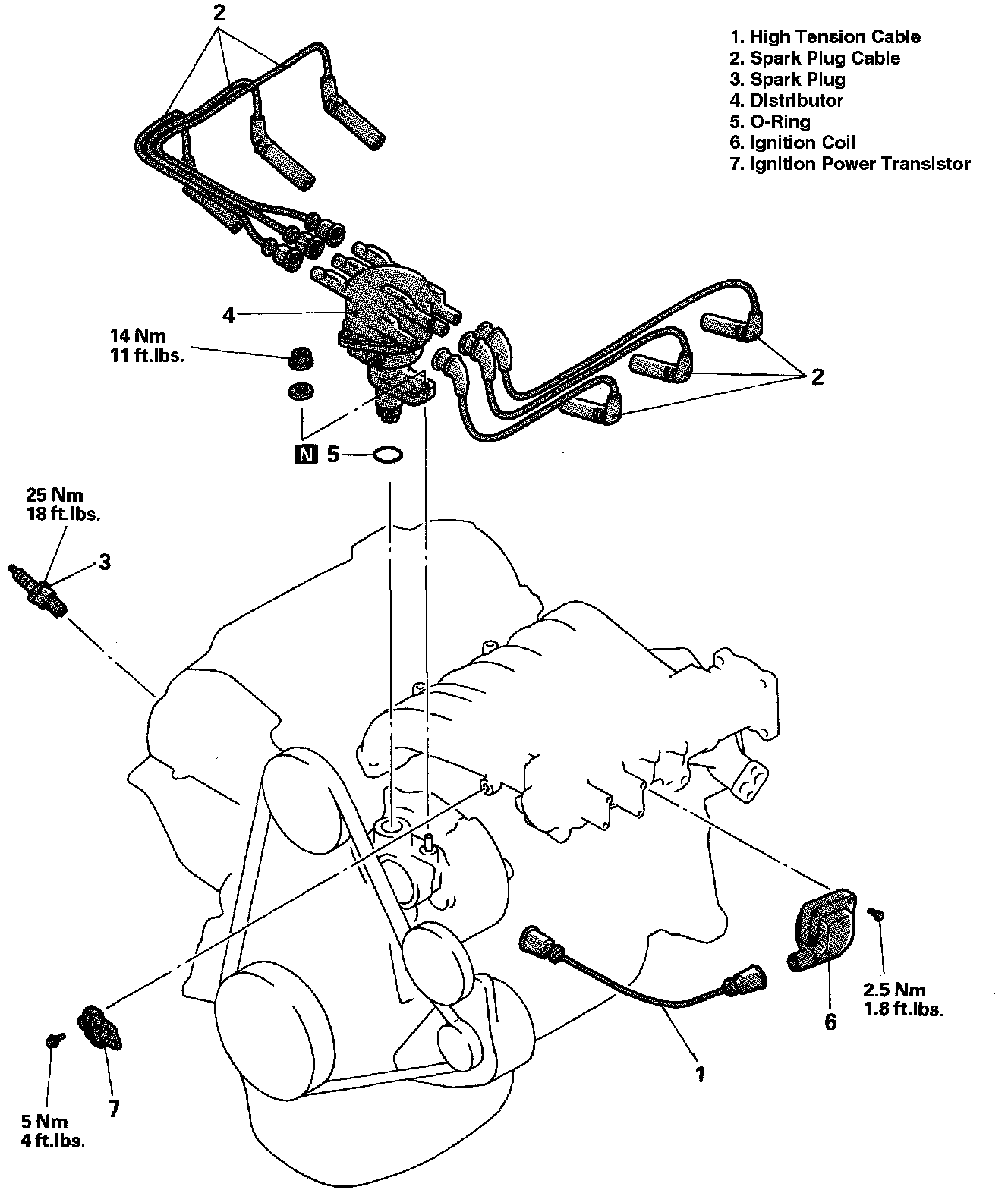

Ignition System <SOHC>:
