Home >> Dodge >> 1994 >> Stealth V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

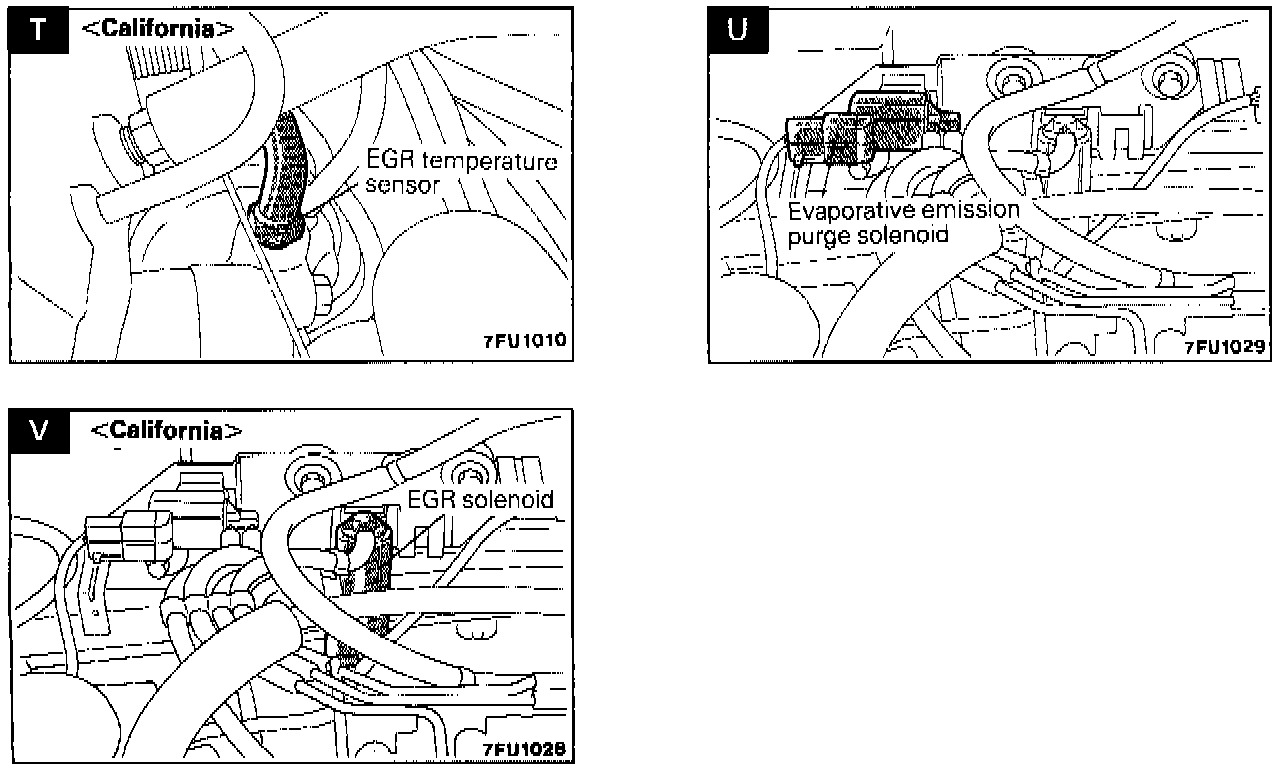

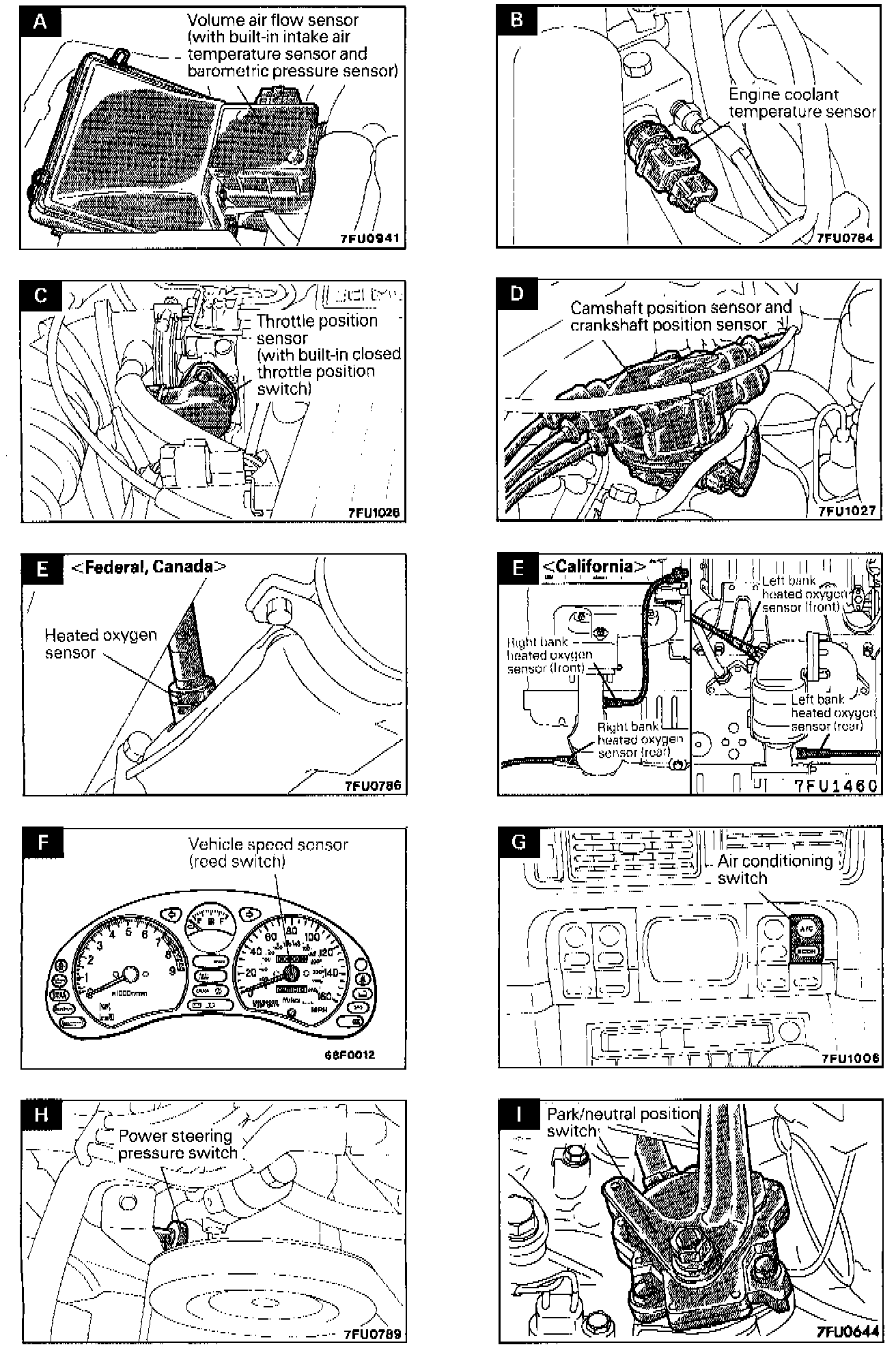

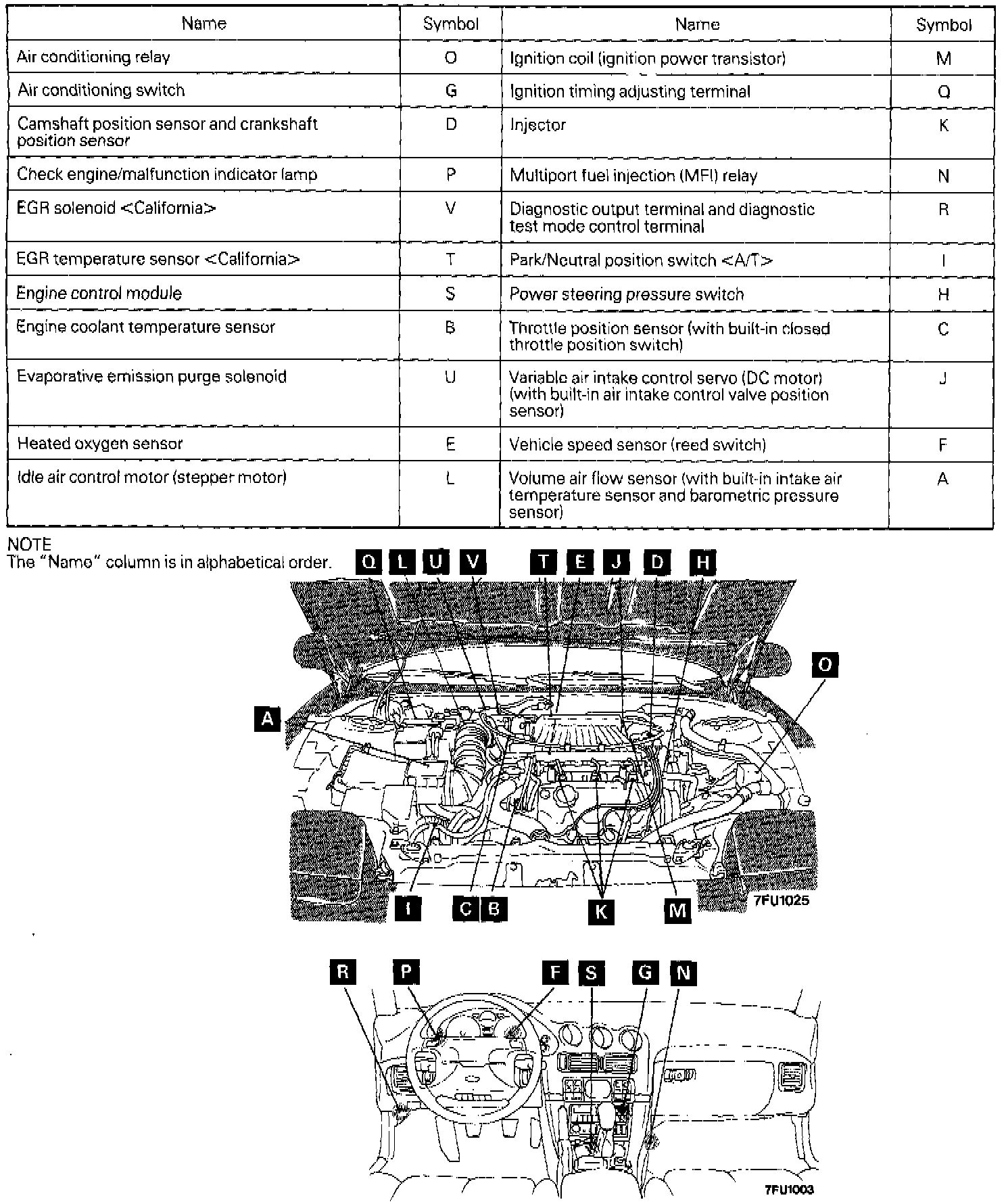

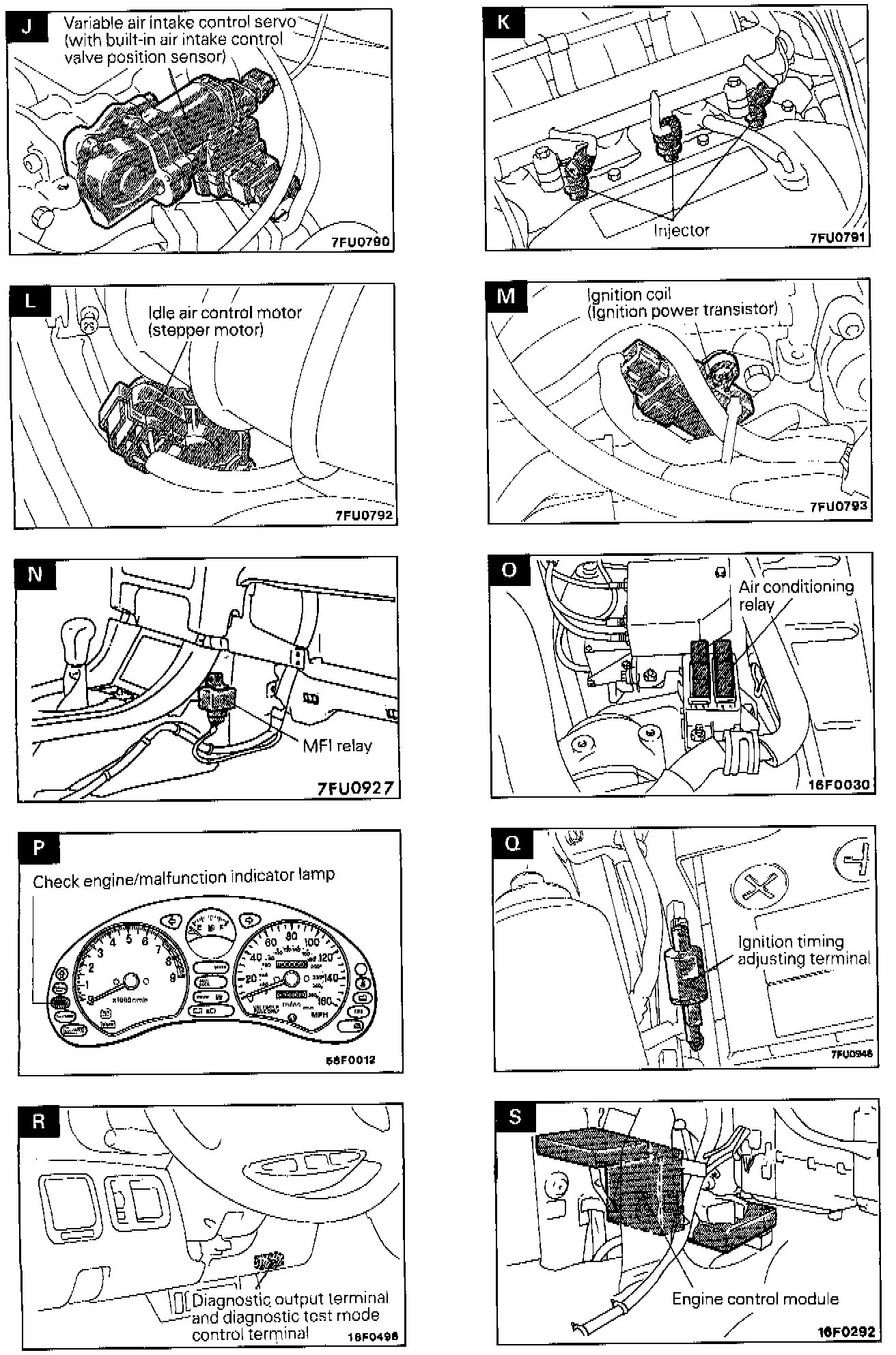

Component Locations:



Component Locations:



Component Locations:



Component Locations:
