Alarm Module, (Vehicle Antitheft)

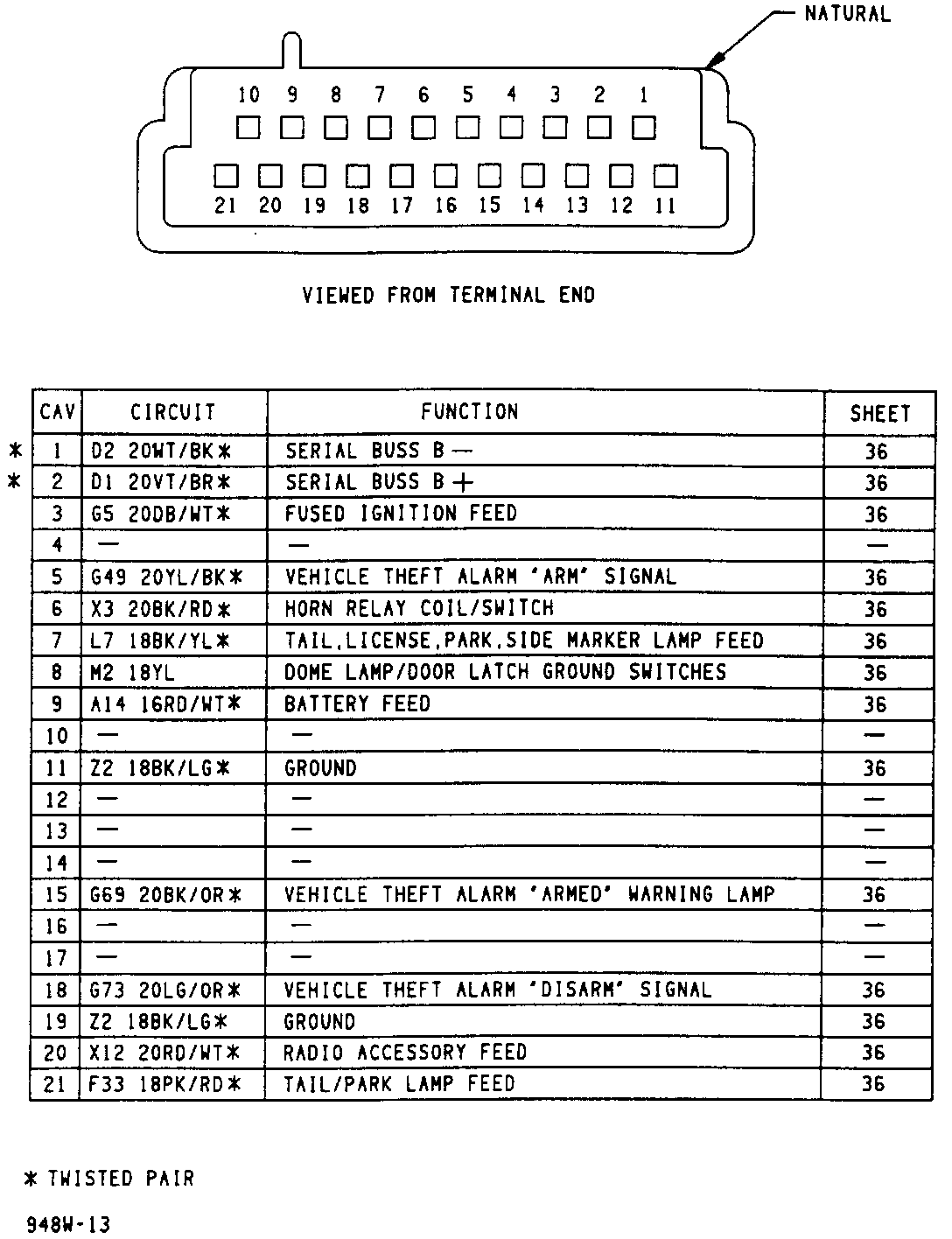

Vehicle Theft Alarm Module Connector:



Vehicle Theft Security System Module Connector:
