Door Lock Power Relay 2

Rear Intermittent Wiper Relay And Door Lock Power Relay 2 With Keyless Entry System:

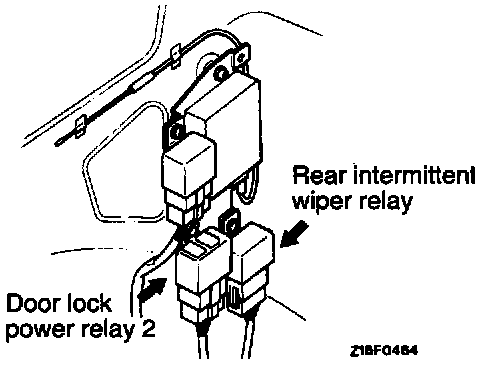

Rear Intermittent Wiper Relay Without Keyless Entry System:
