Home
>>
Dodge
>>
1995
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
Ignition Control Module
Ignition Control Module

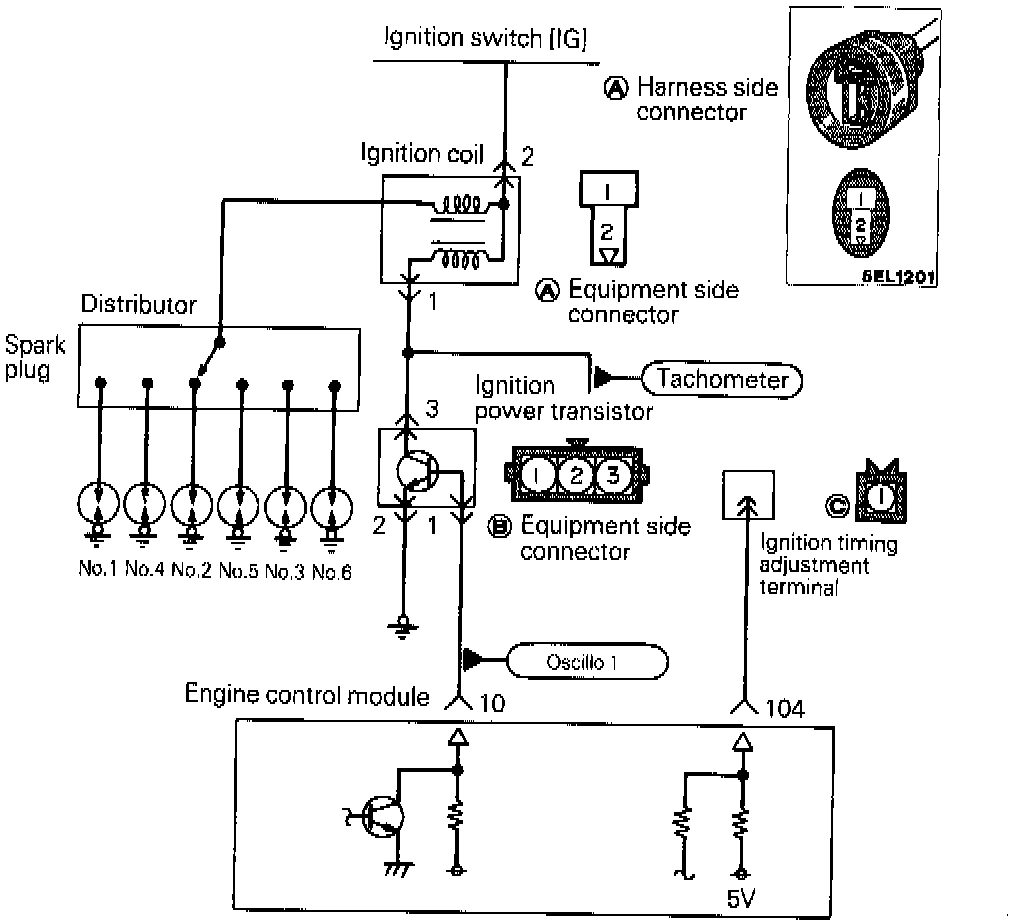

Ignition Coil And Power Transistor Circuit:
