Ignition System: Service and Repair

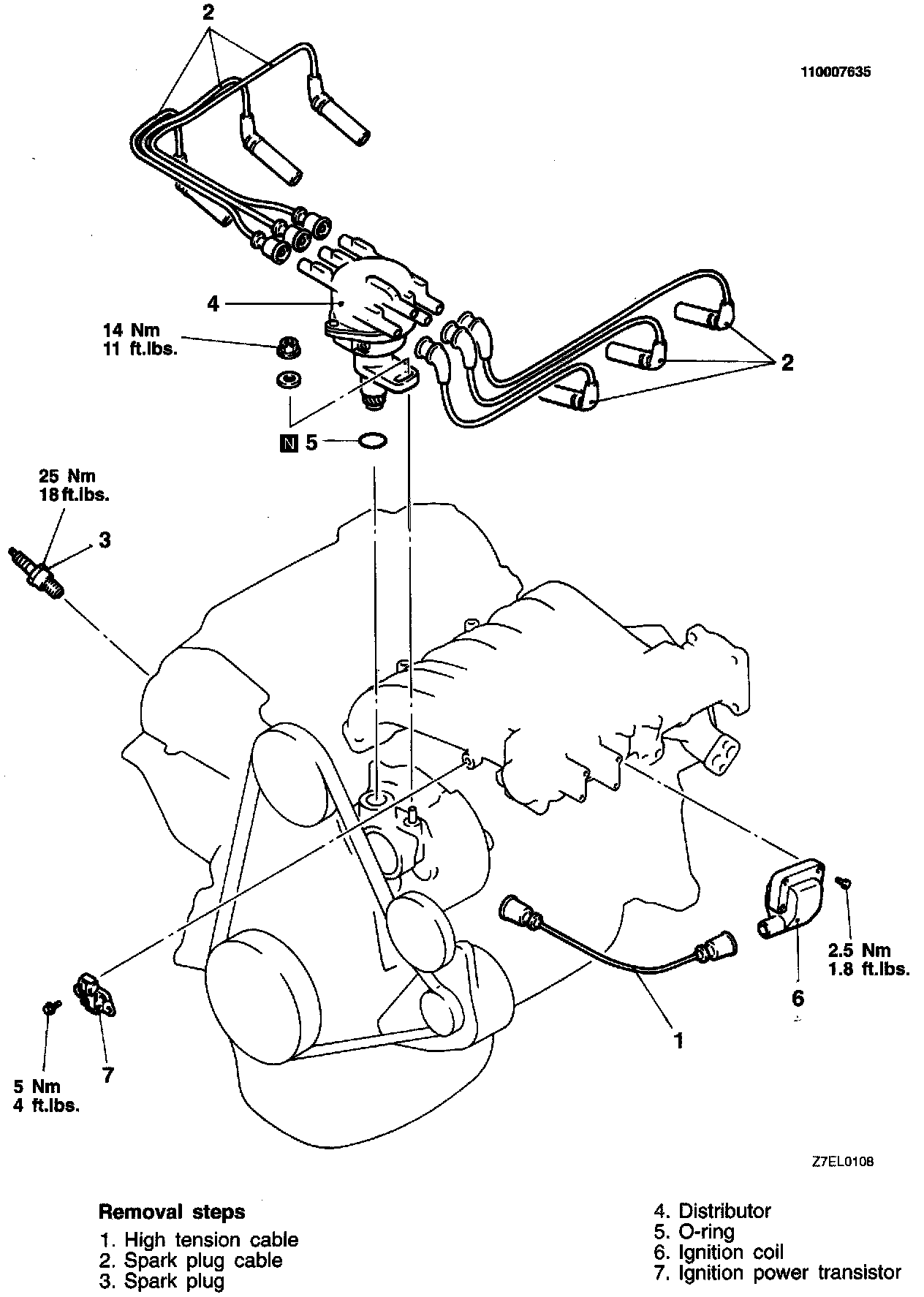

Ignition System - Removal And Installation:

REMOVE
1. High tension cable
2. Spark plug cable
3. Spark plug
4. Distributor
5. O-ring
6. Ignition coil
7. Ignition power transistor

INSTALL
1. Ignition power transistor
2. Ignition coil
3. O-ring
4. Distributor
5. Spark plug
6. Spark plug cable
7. High tension cable
