Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
Black Connector
Black Connector

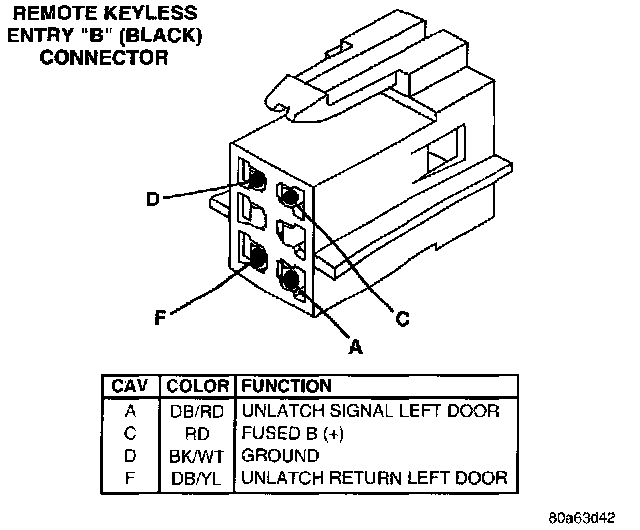

Remote Keyless Entry "B" (Black) Connector:
