Home >> Dodge >> 1997 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> DRB Scan Tool Error Messages and Blank Screen >> Test 1A Blank Screen

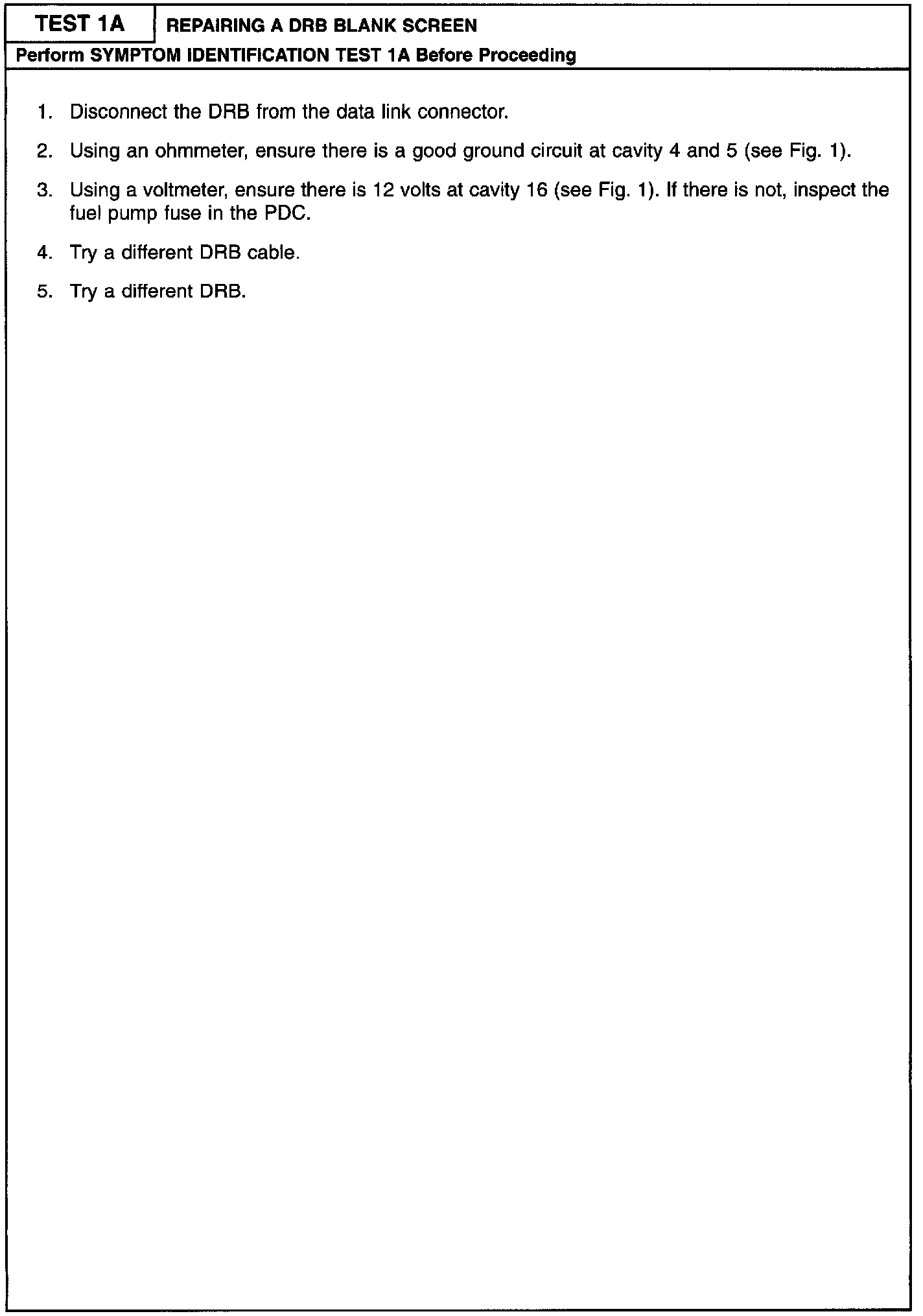

Test 1A Blank Screen

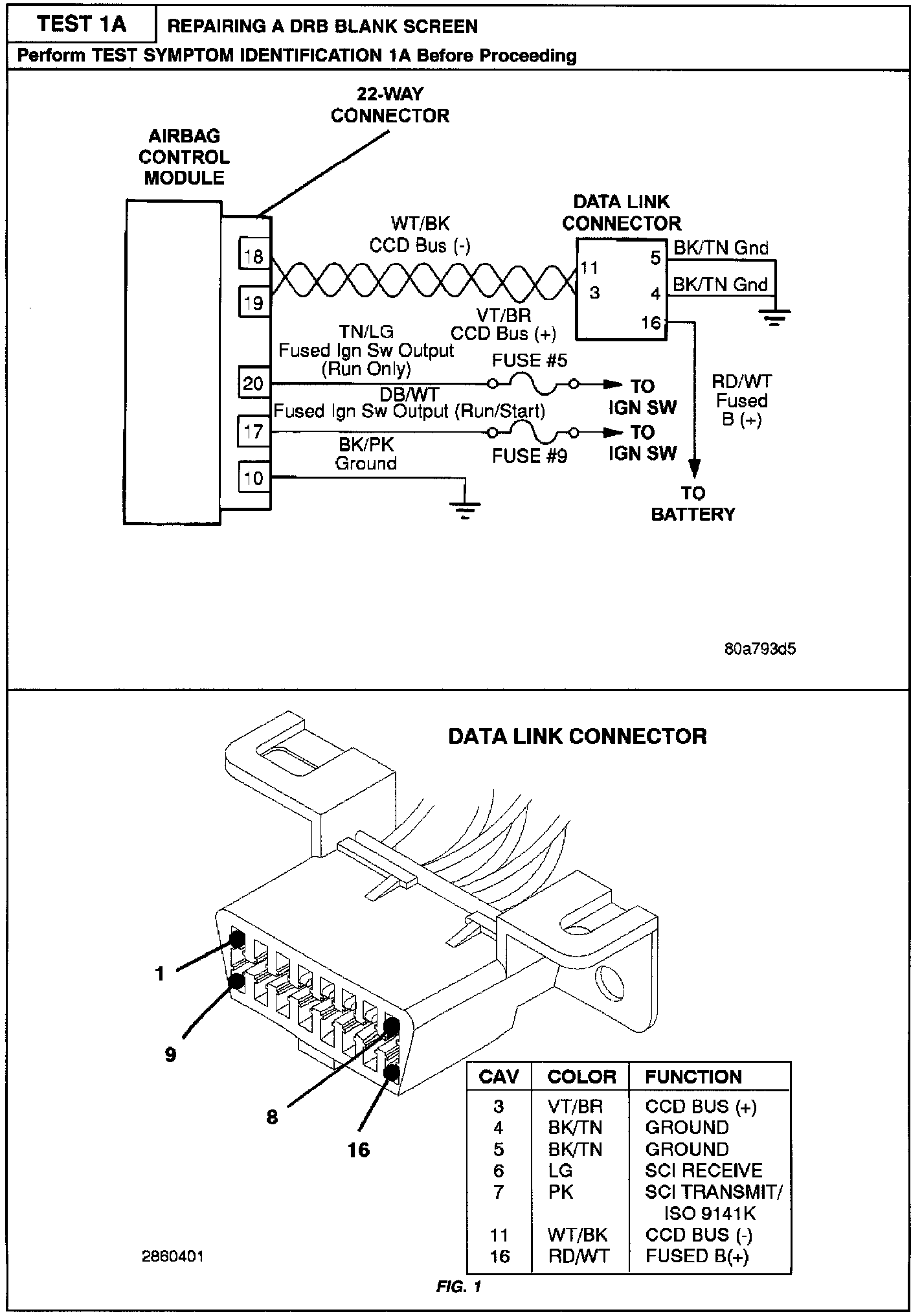

Diagnostic Chart:



Related Images:
