Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1997
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
DRB Scan Tool Error Messages and Blank Screen
>>
Test 2E "No Response" Condition or Communication Problem
Test 2E "No Response" Condition or Communication Problem

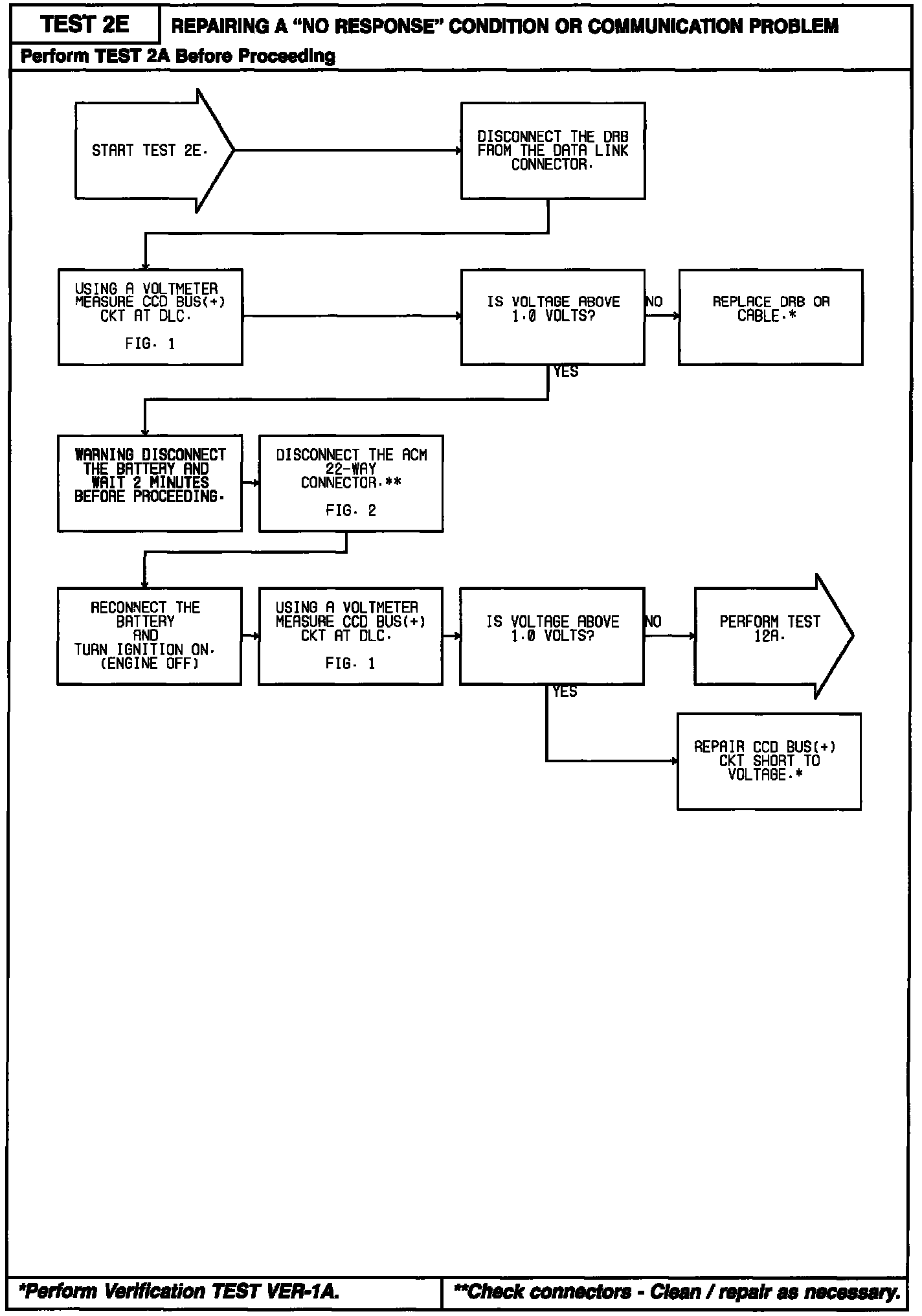

Diagnostic Chart:

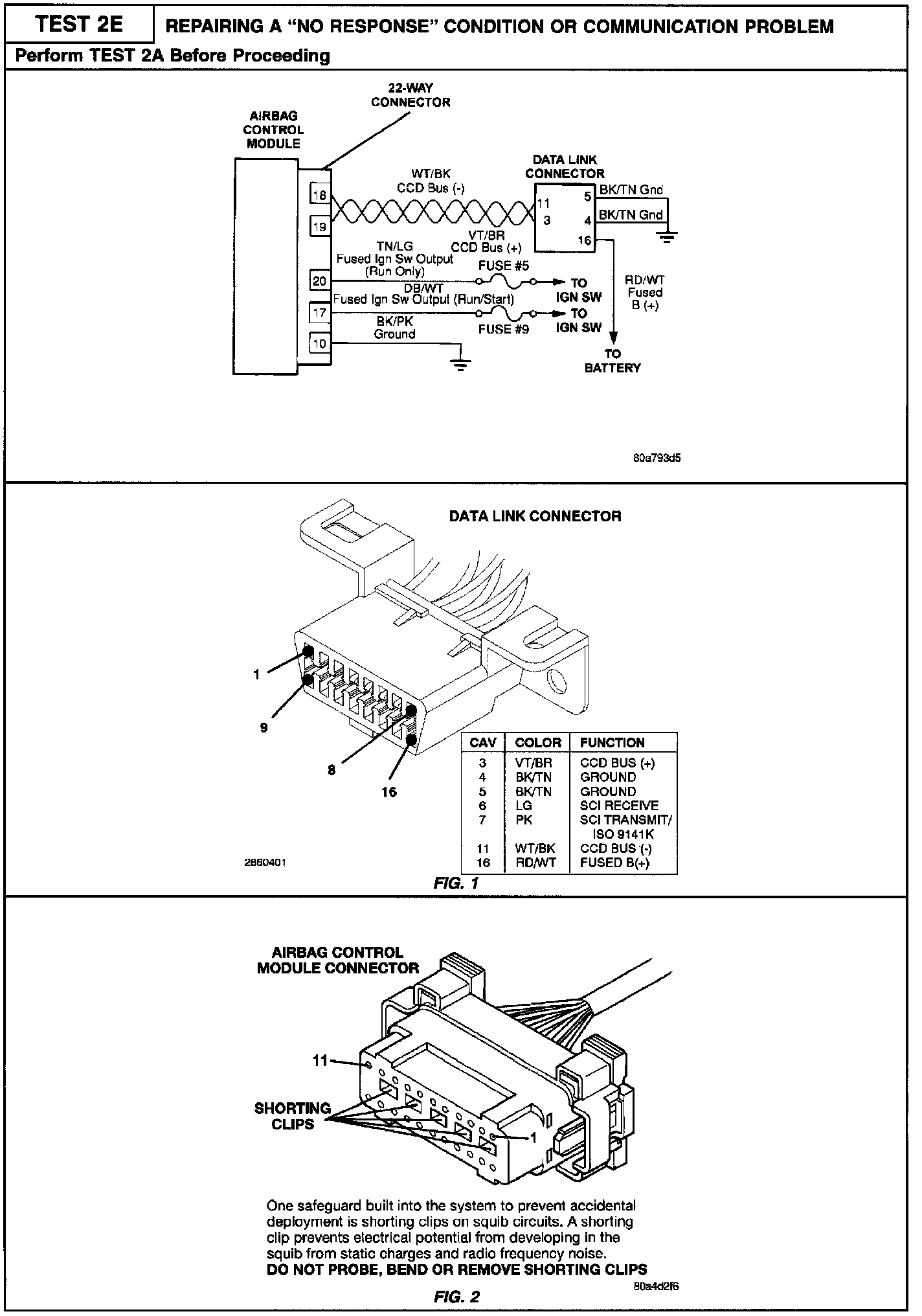

Related Images:
