Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1998
>>
Avenger V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Grounding Locations
Grounding Locations

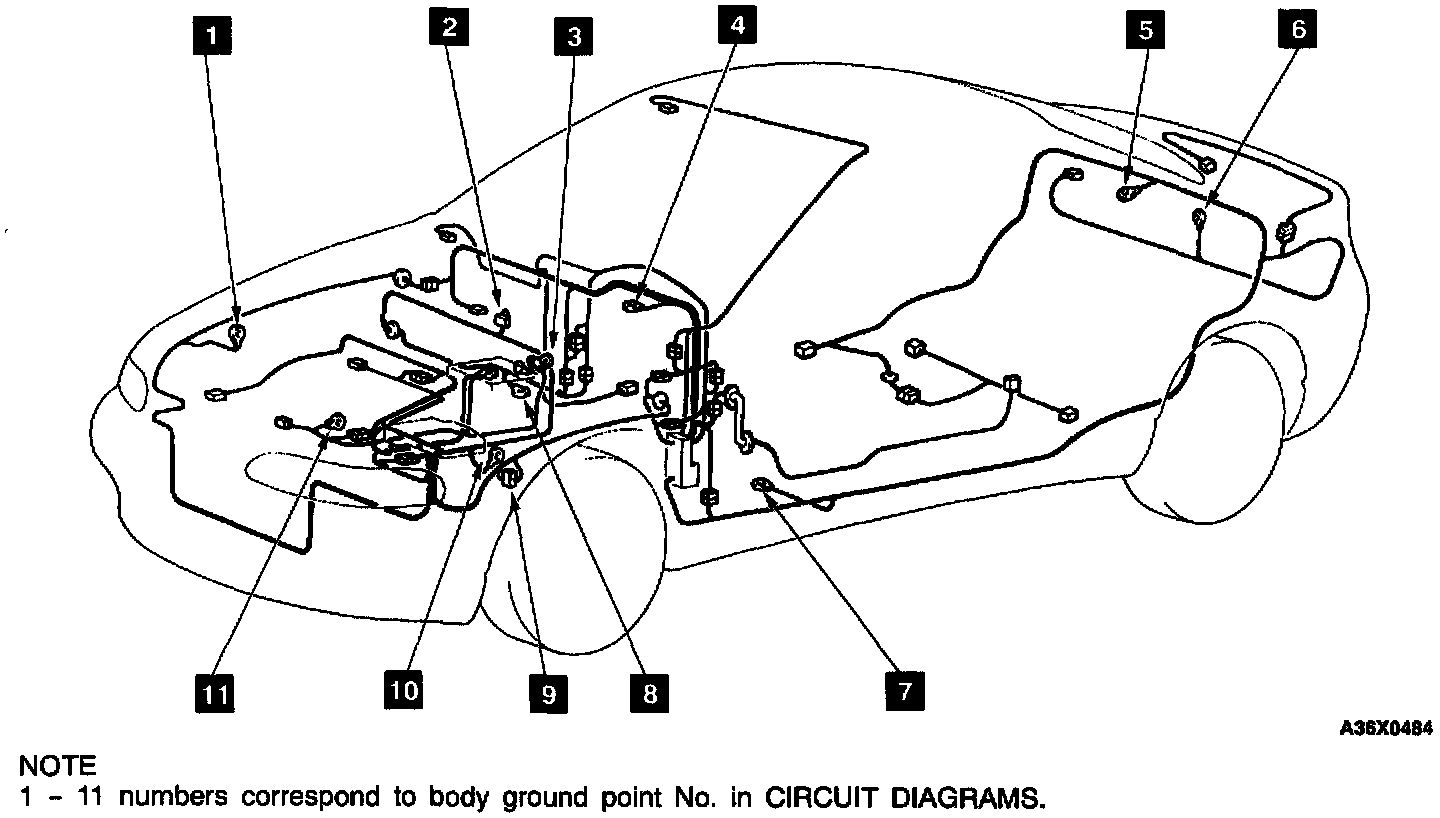

Grounding Locations Overviews:

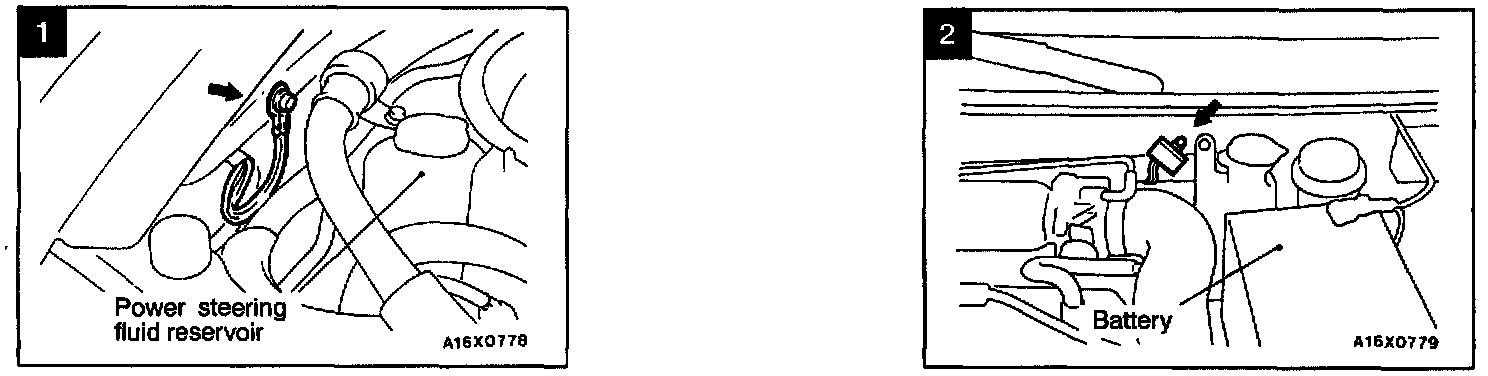

Grounding Locations View 1 - 2:

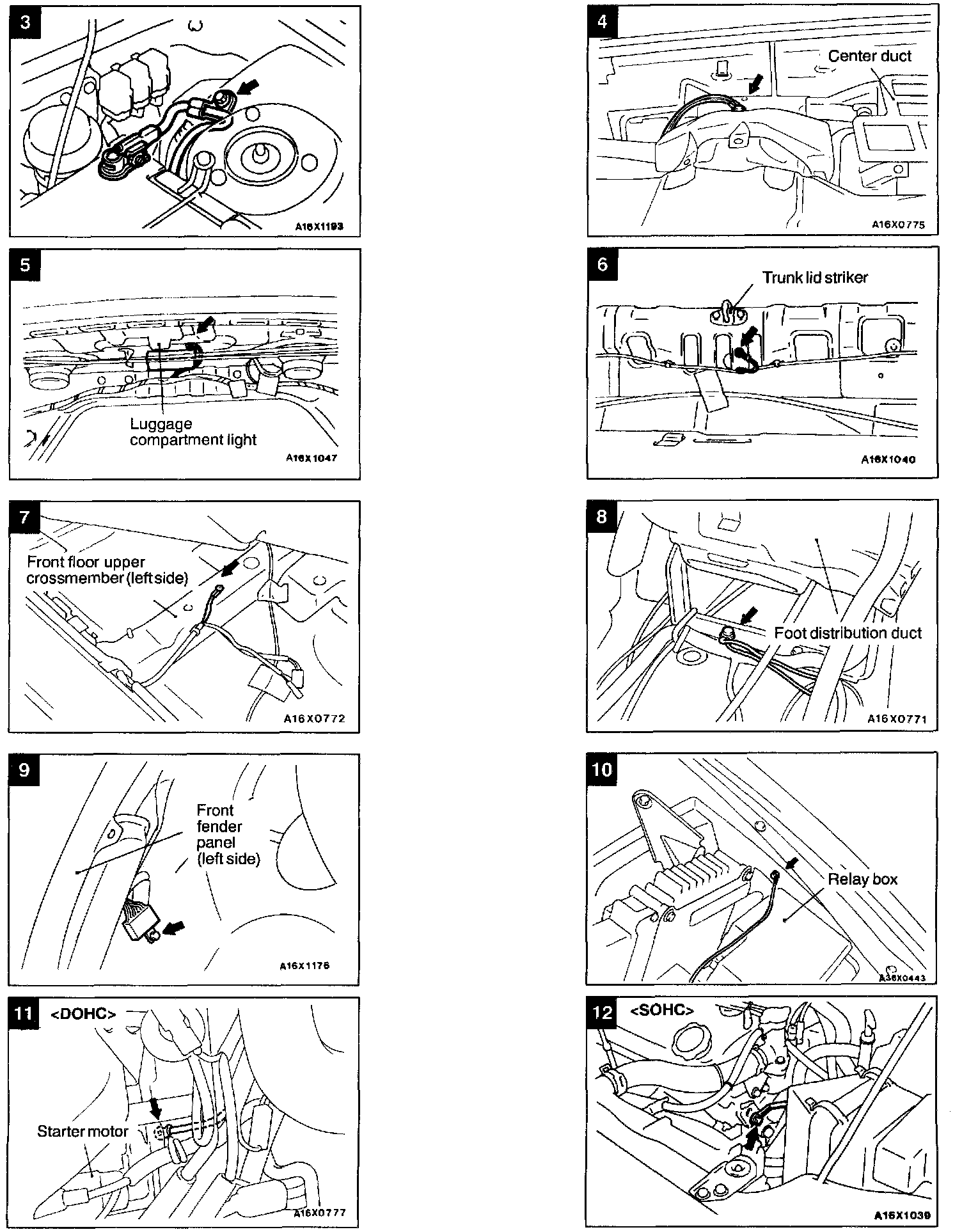

Grounding Locations View 3 - 12:
