Auxiliary Power Outlet: Service and Repair

REMOVAL

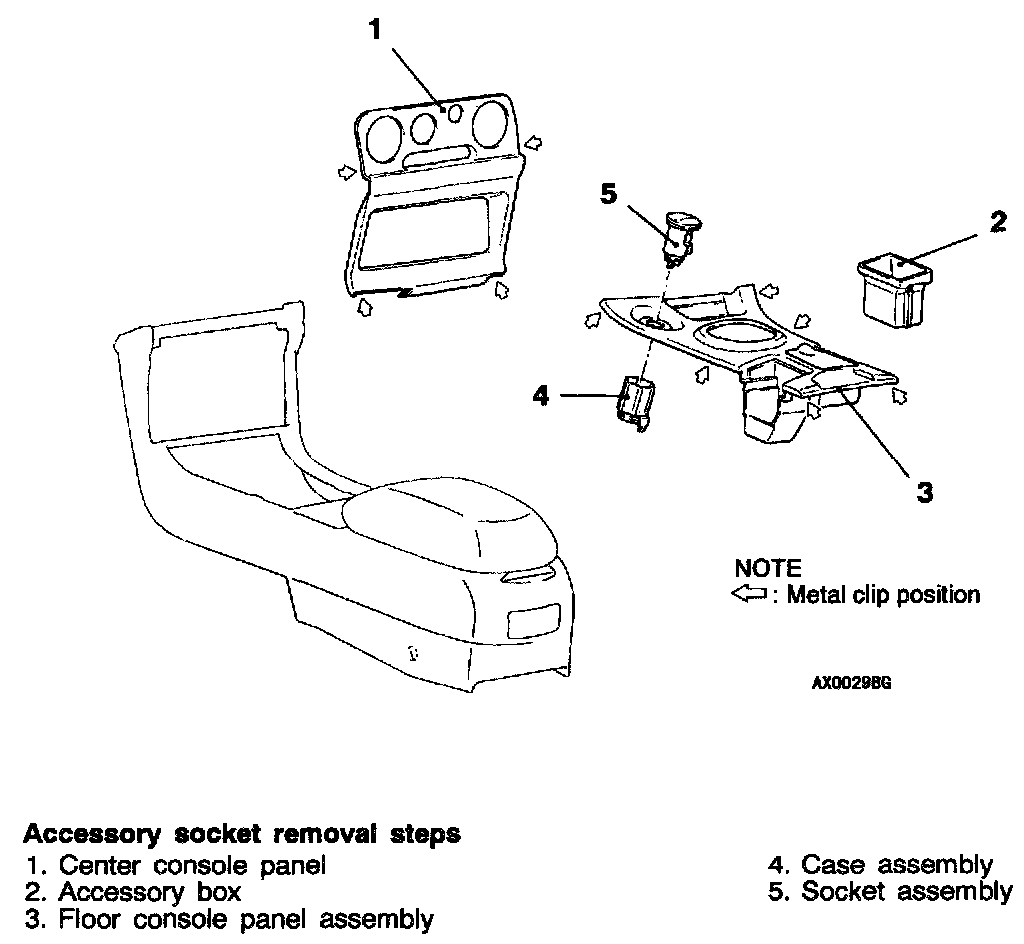

To remove follow the steps listed in the image.

INSTALLATION
To install reverse the steps listed in the image.
